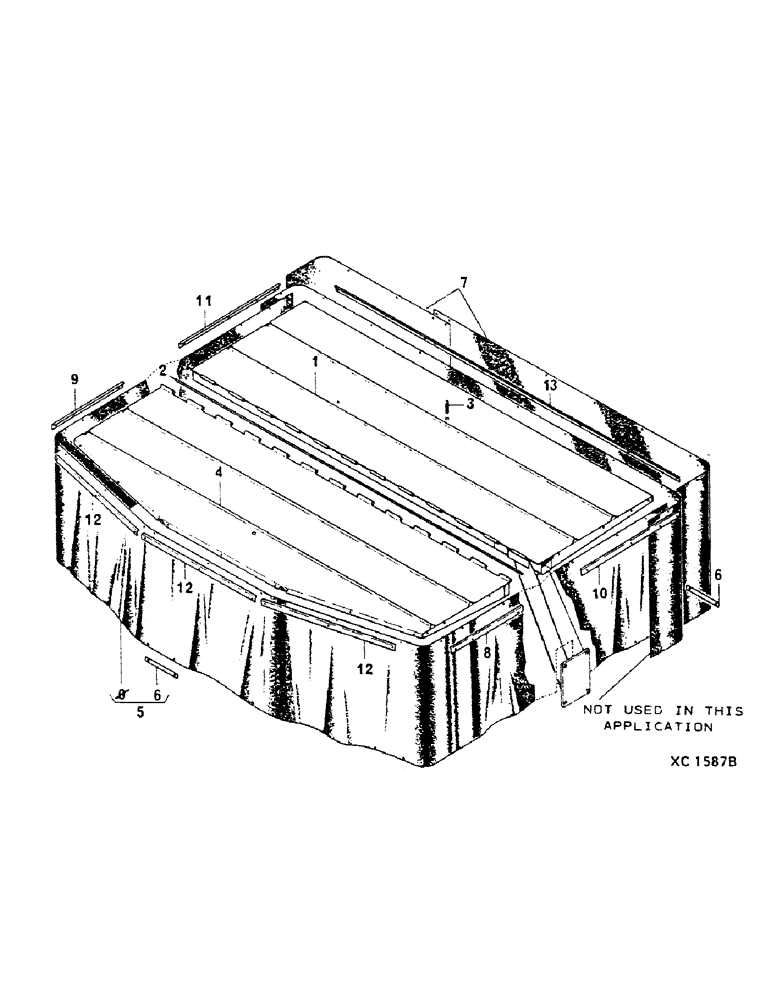

Запчасти Case IH 3104 (A-20) - CUTTER BAR SHIELD, 3104

1

3164907R2

SHIELD

rear part

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

4шт.

2

3159128R1

ROD

hinge

1шт.

3

794935R31

SCREW

BOLT, locking, includes 933466R1 hex jam nuts

2шт.

933466R1

JAM NUT

10mm hex. jam

2шт.

Q152

WASHER

11 x 19 x 1.5

2шт.

739883R1

SPRING

PIN, quick-attaching

1шт.

4

3159129R2

SHIELD

front part

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

4шт.

124824

NUT,Hex, 5/16" - 18

5/16 jam type 5

4шт.

5

3159138R91

SKIRT

front protection

1шт.

6

3159140R1

STRIP

13шт.

7

3164902R91

SKIRT

rear protection

1шт.

3159140R1

STRIP

5шт.

22237R1

WASHER

10шт.

7

3164904R92

SKIRT

rear protection RH

1шт.

3159140R1

STRIP

1шт.

22237R1

WASHER

2шт.

8

3159143R1

JOINT

front left

1шт.

9

3159144R1

JOINT

front right

1шт.

10

3159145R1

JOINT

rear left

1шт.

11

3159146R1

JOINT

rear right

1шт.

12

3159147R1

JOINT

front

3шт.

13

3164905R1

JOINT

rear

1шт.

930293R1

SCREW,Rd Slotted, M5 x 8mm

5 x 8mm round head slotted

32шт.

933542R1

NUT

5mm hex

32шт.
