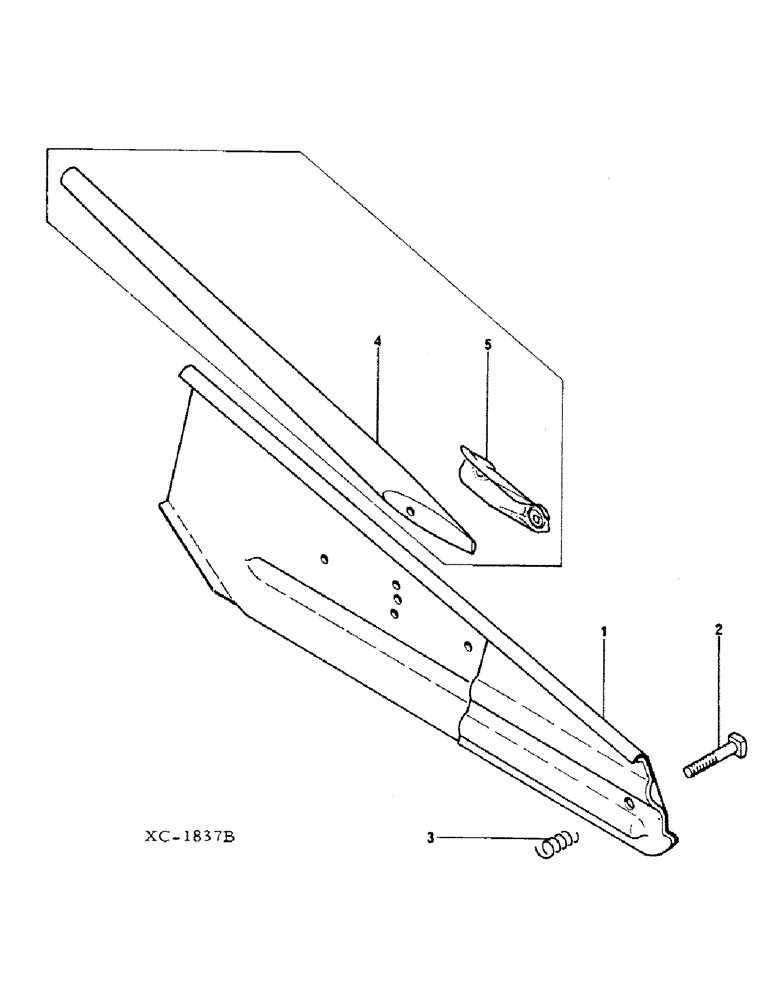

Запчасти Case IH 3104 (A-19) - SWATHBOARD

3177426R91

SWATH DEFLECTOR

BOARD, swath, replaces 3164647R91 and 3172942R91, consists of ref. no. 1 thru 3

1шт.

1

3164648R1

BOARD

swath

1шт.

2

18940

BOLT, 1/2 x 2-1/2 square head machine

1шт.

231-1448

NUT,1/2"-13, GB

1/2 self-locking

1шт.

3

M1015

SPRING

swath board

1шт.

4

M581

ROD

STICK, swath

1шт.

5

MB256

PLATE

SOCKET, swath stick

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 carriage

1шт.

Q398

WASHER

.344 x .875 x .056 pln

2шт.

3164586R1

NUT

5/16 wing

1шт.

27480R1

CARRIAGE BOLT,5/16" x 2", Gr 5

BOLT, 5/16 x 2 dld crg type 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln type 5

1шт.
