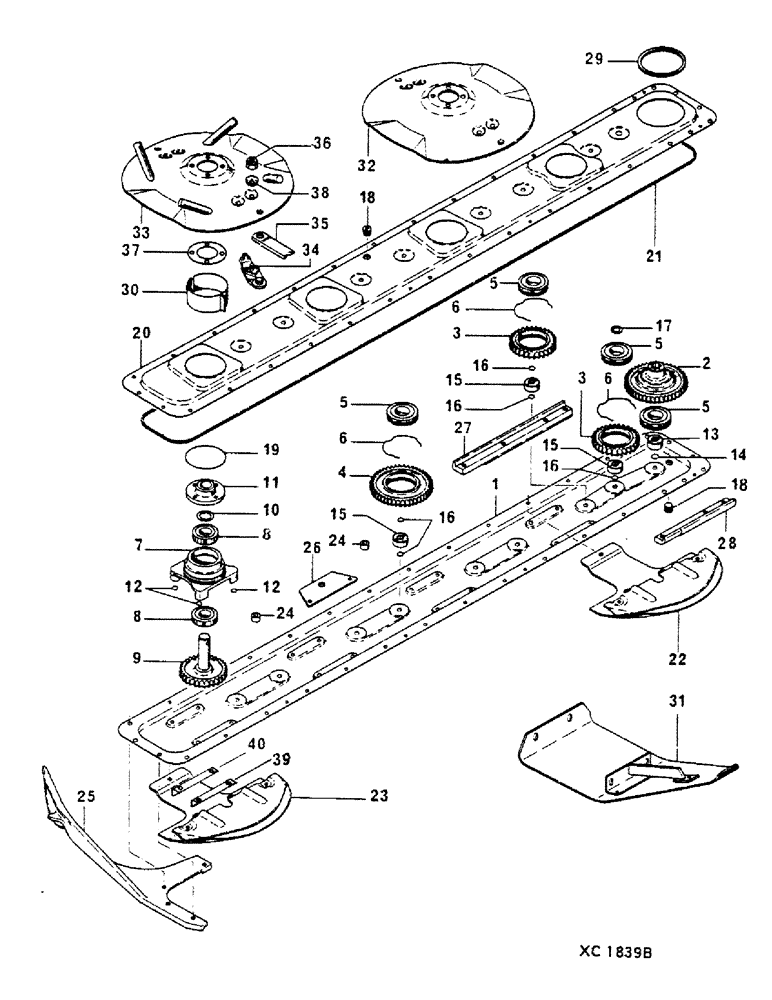

Запчасти Case IH 3104 (A-15) - CUTTER BAR, 3104

1

3177354R91

CASE

ASSY, gear, consists of ref no. 1 thru 21

1шт.

1

3164593R1

CASE

gear

1шт.

2

3164596R1

GEAR

drive

1шт.

3164612R1

BOLT,Hex Flange, M12 x 1.75 x 20mm, Steel

12 x 20mm special

1шт.

3

3164597R1

GEAR

intermediate 33 teeth

2шт.

3164613R1

BOLT,Hex Serr Flg, M12 x 30mm

12 x 30mm special

1шт.

3164614R1

BOLT

12 x 36mm special

1шт.

3164621R1

NUT

12mm special

1шт.

3161013R1

LOCK NUT

12mm special

1шт.

4

3164598R1

GEAR

intermediate 45 teeth

6шт.

3164614R1

BOLT

12 x 36mm special

6шт.

3161013R1

LOCK NUT

12mm special

6шт.

5

3164599R91

BEARING

ball

9шт.

6

3165340R1

RING

snap

8шт.

7

3164601R1

HOUSING

bearing

4шт.

3164608R1

BOLT,Flange, M10 x 1.5 x 20mm, Steel

12 x 20mm special

16шт.

8

3174392R91

BEARING

ball, lower

4шт.

8

616154R91

BEARING, BALL

upper

4шт.

9

3164603R1

GEAR

disc

4шт.

10

3164606R1

SHIM

adjusting

12шт.

11

3164607R2

HUB

4шт.

Q5348

LOCK PIN,10mm OD x 45mm L, Slotted

PIN, LOCK, M10 x 45, Slotted

4шт.

932323R1

LOCK PIN,M6 x 45, Slotted

PIN, 6 x 45mm roll

4шт.

12

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 class 5

16шт.

13

3164609R2

STUD

1шт.

14

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 class 5

1шт.

15

3164610R1

STUD

8шт.

16

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 class 5

15шт.

17

3164611R1

WASHER

SEAL

1шт.

18

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 pln sq/skt auto drain

2шт.

19

3165341R1

O-RING

4шт.

20

3164615R1

COVER

gear case

1шт.

3164608R1

BOLT,Flange, M10 x 1.5 x 20mm, Steel

10 x 20mm special

8шт.

3164634R1

BOLT,Hex Flange, M10 x 1.5 x 25mm, Steel

10 x 25mm special

2шт.

3164631R1

BOLT,Hex Flange, M10 x 1.5 x 35mm, Steel

10 x 35mm special

5шт.

3164639R1

BOLT,Hex Flange, M12 x 1.75 x 45mm, Steel

12 x 45mm special

4шт.

3164637R1

BOLT,Hex Flange, M12 x 1.75 x 50mm, Steel

12 x 50mm special

4шт.

3164622R1

LOCK NUT

10mm special

17шт.

3161013R1

LOCK NUT

12mm special

4шт.

21

3160373R1

O-RING

1шт.

22

3164623R3

GUARD

SKID, inner drive, wearing

1шт.

3164634R1

BOLT,Hex Flange, M10 x 1.5 x 25mm, Steel

10 x 25mm special

3шт.

3165345R1

BOLT,Hex Flange, M10 x 1.5 x 30mm, Steel

10 x 30mm special

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

23

3164628R3

PLATE

SKID, outer disc, wearing

3шт.

3164634R1

BOLT,Hex Flange, M10 x 1.5 x 25mm, Steel

10 x 25 mm special

7шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

12шт.

24

3164630R1

BUSHING

SPACER

2шт.

25

3172484R2

SUPPORT

grassboard, replaces 3164633R1

1шт.

26

3164635R1

PLATE

RETAINER

1шт.

27

3164636R1

REINFORCEMENT

rear

1шт.

28

3164638R2

REINFORCEMENT

front

1шт.

29

3169457R1

RING

replaces 3160386R1

1шт.

30

3169520R1

SHIELD

replaces 3164640R1

4шт.

930264R1

BOLT

6 x 16mm hex. head

4шт.

933411R1

WASHER

6mm lock

4шт.

933445R1

NUT

6mm hex.

4шт.

31

3164641R2

SOLE

inner

1шт.

3164608R1

BOLT,Flange, M10 x 1.5 x 20mm, Steel

10 x 20mm special

4шт.

32

3173934R1

DISC

inner

3шт.

931458R1

SCREW,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

BOLT, M10 x 20 PHC class 8.8

12шт.

33

173937R2

DISC, outer

1шт.

931458R1

SCREW,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

BOLT, M10 x 20 PHC class 8.8

4шт.

34

3173938R2

DISC

HOLDER, knife

8шт.

35

3164894R3

KNIFE

domed

8шт.

36

3169585R1

LOCK NUT,M12 x 1.75, Cl 8

NUT, self-locking, replaces 934211R1

8шт.

37

3164890R1

SHIM

adjusting

1шт.

38

3173833R1

WASHER

CUPEL

8шт.

39

3174822R1

PLATE

tightening, long

2шт.

40

3174823R1

PLATE

tightening, short

2шт.
