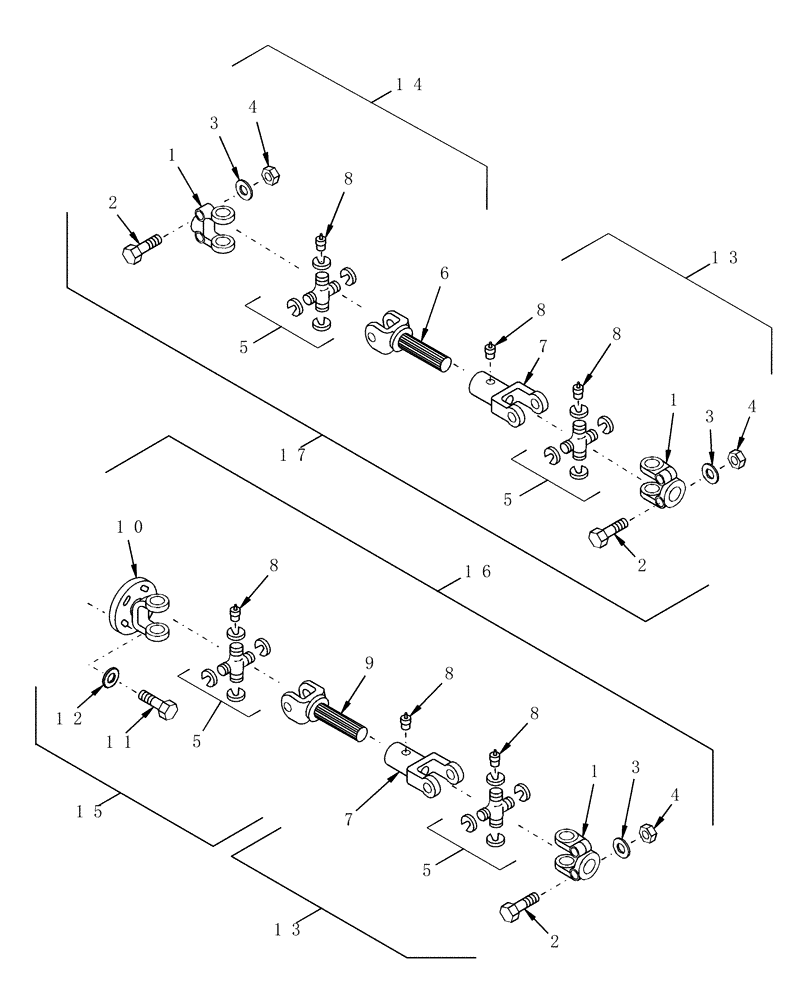

Запчасти Case IH SMX91 (15.02) - CONDITIONER ROLL DRIVE SHAFTS (15) - CROP CONDITIONING

1

86507085

YOKE

3шт.

2

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

6шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

4

425-118

NUT,1/2"-20, G5

6шт.

5

9847253

BEARING ASSY

Includes: Ref. 8

4шт.

Prior To PIN (9/06)

1шт.

5

87575195

U-JOINT SPIDER

Includes: Ref. 8

4шт.

From PIN (9/06)

1шт.

6

86571226

YOKE

& Shaft

1шт.

7

86571225

YOKE

& Tube

2шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

9

86633185

PTO SHAFT

1шт.

10

86533168

YOKE

1шт.

11

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

12

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

13

86571224

PTO

Female, Timed

2шт.

14

86571222

PTO

Male, Timed, Includes: Ref. 1, 5, & 6

1шт.

15

86633184

PTO SHAFT

Includes: Ref. 5, 8, 9, & 10

1шт.

16

86633183

PTO SHAFT

1шт.

17

86595840

PTO

Timed

1шт.
