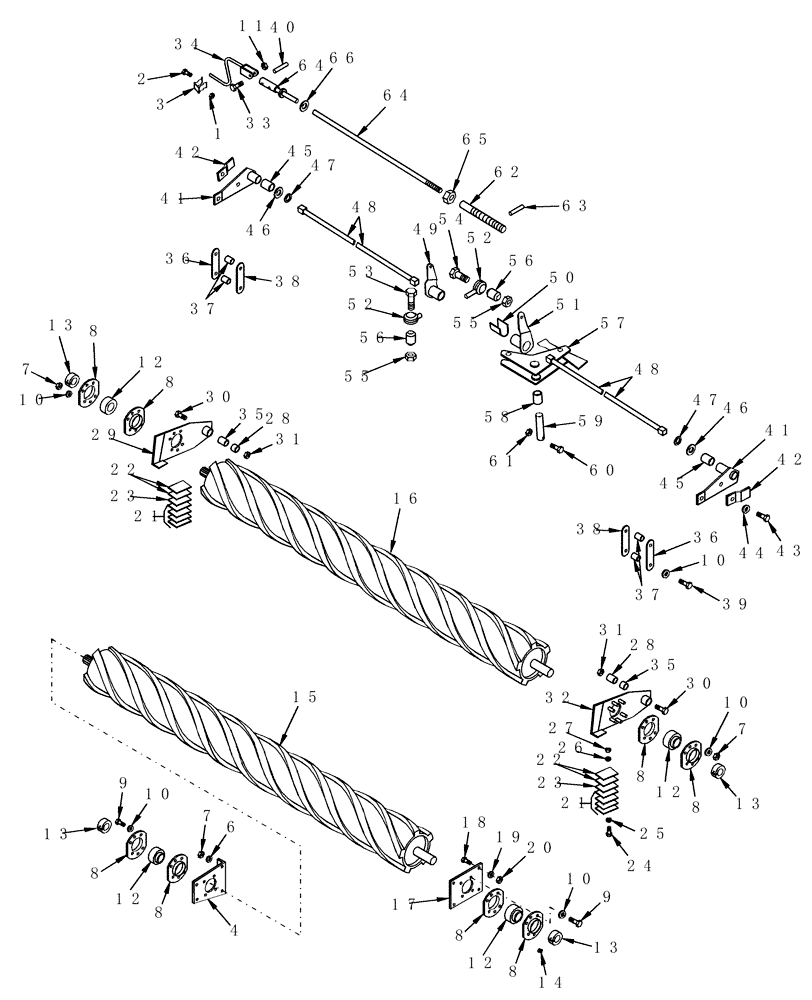

Запчасти Case IH SMX91 (15.01) - CONDITIONER ROLLS & TENSION (15) - CROP CONDITIONING

1

131-646

SPRING NUT,Tinn, U, 1/4"-20

1шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

3

86631407

SPRING CLIP

1шт.

4

86631404

BRACKET

RH

1шт.

5

9820509

WASHER,16.76mm ID x 33.27mm OD x 3.05mm Thk

Friction

1шт.

6

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

8шт.

7

425-288

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

8

86629969

FLANGE

8шт.

9

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

10

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

24шт.

11

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

12

B92630

BEARING

4шт.

13

45393

COLLAR

4шт.

14

NSS

NOT SOLD SEPARAT

Screw, Set, Sq Hd, Cup Pt, 3/8"-16 x 3/8"

4шт.

15

86610313

ROLL

Steel, Lower

1шт.

DO NOT Mix Steel And Rubber Rolls

1шт.

15

86610945

ROLLER ASSY.

Spiral Rubber, Lower

1шт.

DO NOT Mix Steel And Rubber Rolls

1шт.

16

86610314

ROLL

Steel, Upper

1шт.

DO NOT Mix Steel And Rubber Rolls

1шт.

16

86610941

ROLLER ASSY.

Spiral Rubber, Upper

1шт.

DO NOT Mix Steel And Rubber Rolls

1шт.

17

86631362

SUPPORT

LH

1шт.

18

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

4шт.

19

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

20

425-288

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

21

86526619

SHIM

.060"

8ARшт.

22

86526620

SHIM

.015"

1шт.

23

86631365

PAD

2шт.

24

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

2шт.

25

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

2шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

27

232-4146

NUT,3/8"-16, GC

2шт.

28

86631389

SPACER

2шт.

29

86632438

ARM

RH, Includes: Ref. 35

1шт.

30

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

31

85700693

NUT,5/8" - 11, Gr C

2шт.

32

86631035

PLUNGER

LH, Includes: Ref. 35

1шт.

33

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

86631406

CRANKED HANDLE

1шт.

35

86521770

BUSHING,31.85mm ID x 38.25mm OD x 31.75mm L

2шт.

36

86631385

CONNECTING LINK

2шт.

37

86631384

SPACER

4шт.

38

86631386

CONNECTING LINK

2шт.

39

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

40

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

1шт.

41

86632454

ARM

2шт.

42

289688

CLIP

2шт.

43

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

44

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

45

213346

BUSHING,44.78mm ID x 49.61mm OD x 41.27mm L

2шт.

46

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

2шт.

47

100-11175

SNAP RING,#175, Ext

2шт.

48

144385

TORSION BAR

2шт.

49

86631352

ARM

RH

1шт.

50

161313

DRIVE BUSHING

1шт.

51

86631348

ARM

LH

1шт.

52

86631409

CONNECTING LINK

1шт.

53

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

54

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

55

232-41412

LOCK NUT,3/4"-10, GC

2шт.

56

695815

SPACER

2шт.

57

86631353

ARM

Includes: Ref's 58, 62, & 63

1шт.

58

174224

DRIVE BUSHING

1шт.

59

86631361

PIN

1шт.

60

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

61

280129

NUT,1/4"-20

1шт.

62

174223

ROD

Threaded

1шт.

63

38-11220

LOCK PIN,3/16" x 1 1/4", Slotted

1шт.

64

86631354

ROD

1шт.

65

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.
