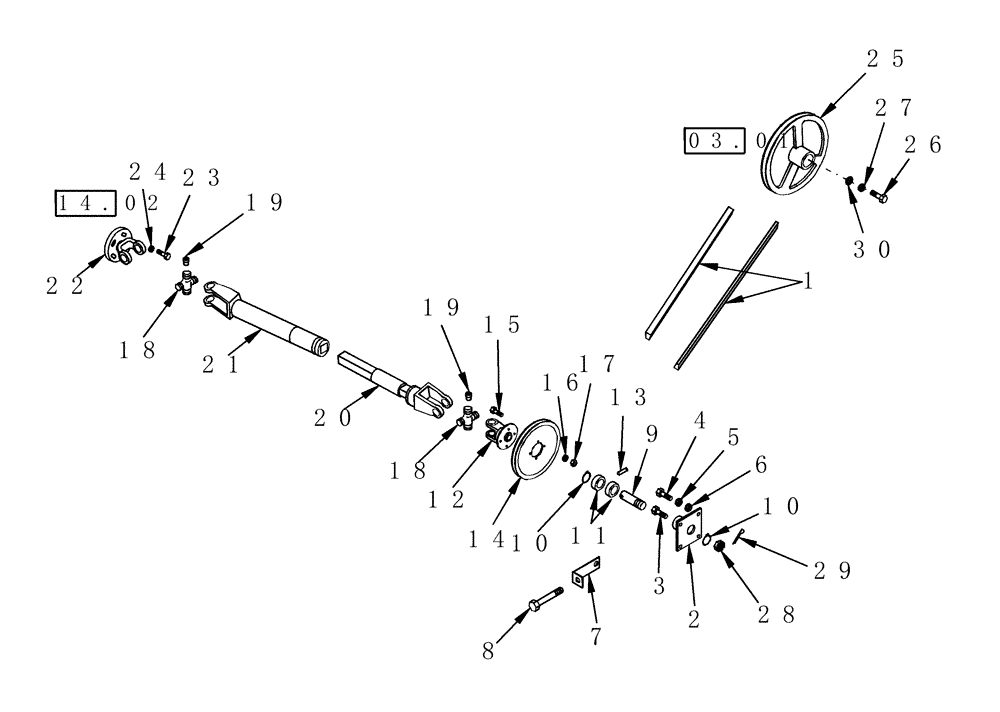

Запчасти Case IH SMX91 (14.03) - SICKLE DRIVE PTO (14) - CROP CUTTING

1

86627789

V-BELT,0.88" W x 60.50" L

1шт.

2

86631050

HUB

1шт.

3

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

4

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

3шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

264198

WASHER,9.9mm ID x 39.1mm OD x 4.8mm Thk

4шт.

7

86631343

ANGLE

1шт.

8

113-82

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

1шт.

9

261591

SHAFT

1шт.

10

100-21175

SNAP RING,1.75", Int, #175

2шт.

11

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

2шт.

12

289110

YOKE

1шт.

13

633734

GROOVED PIN,7.94mm OD x 50.8mm L

1шт.

14

86631101

SHEAVE

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

139842

SPIDER,23.81mm Cap Dia, 58.73mm L, Grease-able

2шт.

19

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

20

86631341

YOKE

1шт.

21

261847

YOKE,10.25" Length

& Tube

1шт.

22

288886

YOKE

& Mount Plate

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

86631333

HALF-PULLEY

1шт.

26

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

28

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

29

432-816

COTTER PIN,1/8" x 1"

Used w/Ref 9

1шт.

30

39856

WASHER,13.49mm ID x 38.1mm OD x 6.35mm Thk

1шт.
