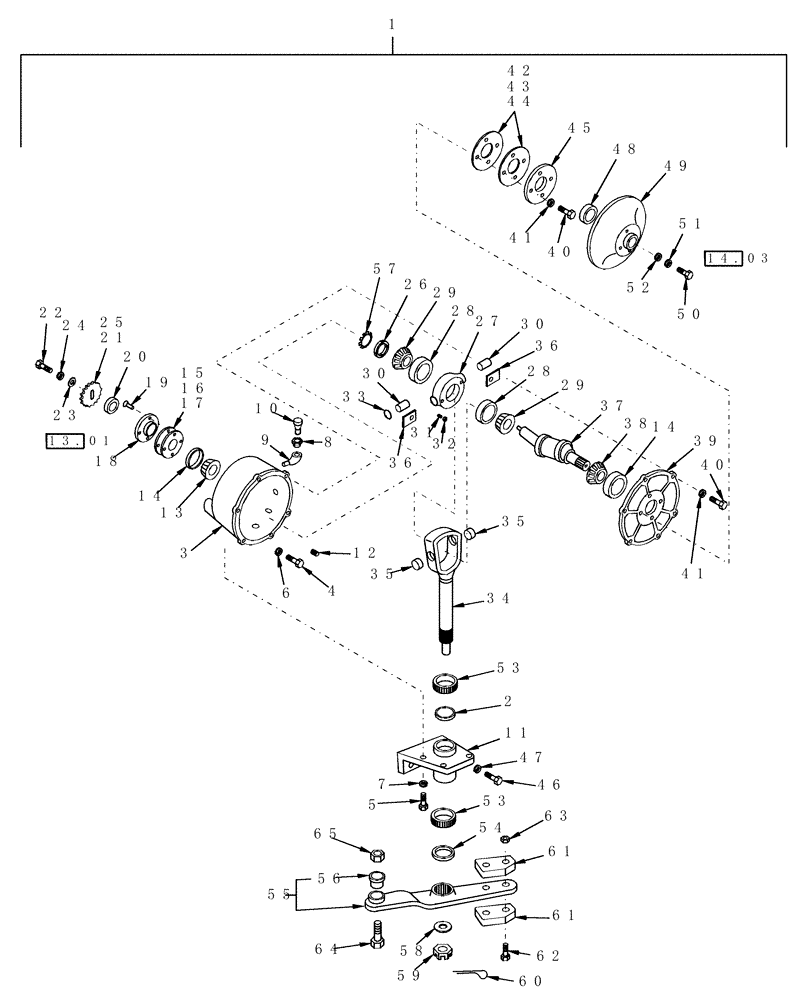

Запчасти Case IH SMX91 (14.02) - WOBBLE DRIVE (14) - CROP CUTTING

1

86630640

WOBBLE BOX

Does not include Ref. 21, 25 Order separate

1шт.

1

86630640R

REMAN-WOBBLE BOX

Remanufactured, Does not include Ref. 21, 25. Order separate

1шт.

1

86630640C

CORE-WOBBLE BOX

Return Number, Does not include Ref. 21, 25. Order separate

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

1шт.

3

283381

HOUSING

Housing

1шт.

4

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

6

12034871

WASHER

2шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

88873

BUSHING

Hex, Serial Range: 3/4"-1/8"

1шт.

9

80064038

ELBOW

Pipe, Street

1шт.

10

572820

BREATHER

1шт.

11

86630557

MOUNTING PARTS

1шт.

12

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

13

R53175

ROLLER BEARING,1.125" ID x 0.8125"

Cone

1шт.

14

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

2-7/16" OD

2шт.

15

709072

SHIM,.003" Thk

1шт.

16

709073

SHIM,.005" Thk

1шт.

17

709068

SHIM,.015" Thk

1шт.

18

86630589

CAP COVER

1шт.

19

280460

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1"

4шт.

20

288875

OIL SEAL,28.57mm ID x 41.4mm OD x 6.35mm Thk

1шт.

21

680524

DRIVING SPROCKET

12 Tooth (Optional). Not included. Order separate

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

23

29962

WASHER

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

283594

DRIVING SPROCKET

16 Tooth. Not included. Order separate

1шт.

26

54-2013

BEARING LOCK NUT

Lock, Special

1шт.

27

261373

RING

1шт.

28

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

2шт.

29

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

2шт.

30

689166

PIN,25.41mm OD x 46.74mm L

2шт.

31

280354

SET SCREW,Hex Soc, 1/4"-20 x 1"

2шт.

32

280129

NUT,1/4"-20

2шт.

33

100-11100

SNAP RING,#100, Ext

2шт.

34

764347

YOKE

Includes: Ref. 35, 58, & 59

1шт.

35

709063

BUSHING,25.43mm ID x 28.73mm OD x 9.53mm L

2шт.

36

579100

CLIP

2шт.

37

689165

SHAFT

Wobble Drive

1шт.

38

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

1шт.

39

86630590

COVER

1шт.

40

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

41

492-11038

LOCK WASHER,3/8"

10шт.

42

709070

SHIM,.003" Thk

1шт.

43

709071

SHIM,.005" Thk

1шт.

44

709069

SHIM,.015" Thk

1шт.

45

86630556

RETAINER

1шт.

46

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

47

84057

LOCK WASHER,M16

2шт.

48

712341

OIL SEAL

1шт.

49

86630591

ENGINE FLYWHEEL

1шт.

50

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

51

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

52

39856

WASHER,13.49mm ID x 38.1mm OD x 6.35mm Thk

1/2"

1шт.

53

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

1-3/4" ID

2шт.

54

225615

SEAL,44.45mm ID x 60.45mm OD x 9.53mm Thk

1шт.

55

764892

ARM

1шт.

56

614671

DRIVE BUSHING,15.93mm ID x 28.57mm OD x 21.5mm L

1" OD

1шт.

57

55-2013

LOCK WASHER,Bearing, W-113

1шт.

58

763026

WASHER,26.2mm ID x 50.8mm OD x 6.35mm Thk

Special

1шт.

59

87449

SLOTTED NUT,1"-14

1шт.

60

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

61

576780

WEIGHT

2шт.

62

426-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

2шт.

63

232-4148

NUT,1/2"-13, GC

2шт.

64

428-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 8

1шт.

65

9602227

LOCK NUT,5/8"-18, GC

1шт.
