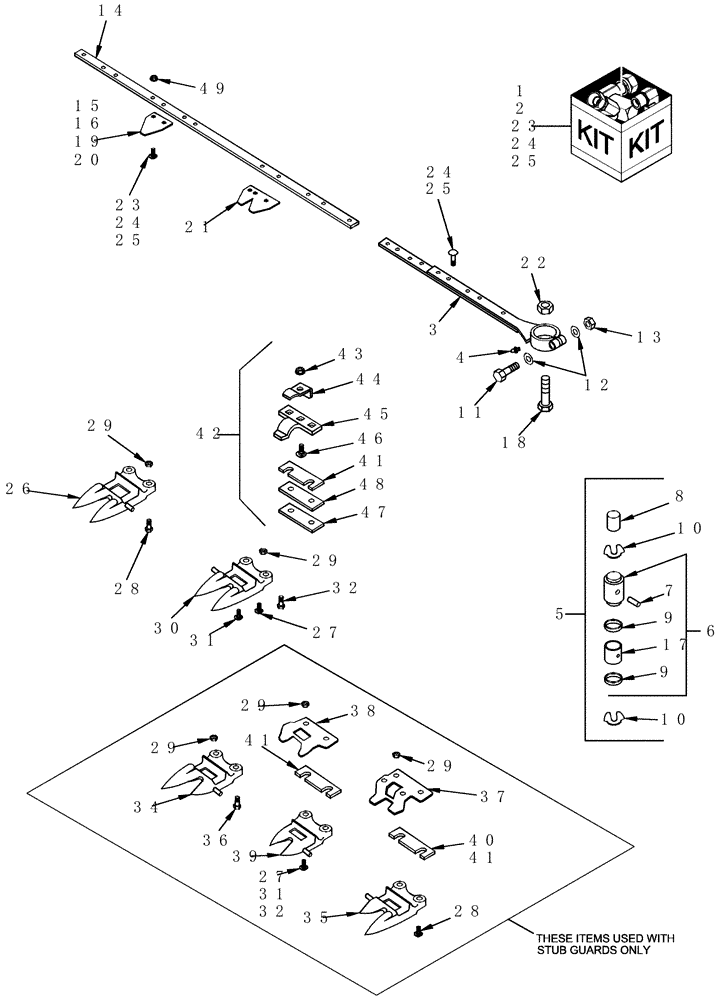

Запчасти Case IH SMX91 (14.01) - CUTTERBAR (14) - CROP CUTTING

1

86624469

KNIFE

Bolted OSR, Back Hardened, Includes: Ref. 3, 4, 5, 8 - 10, 14, 17, 19, 21 & 23 - 25

1шт.

2

86562960

KIT

Knife Head

1шт.

Includes: Ref. 49, Lock Nuts (25), Knife Bolt, 1" (11 NSS), Knife Bolt, 7/8" (9 NSS), and Knife Bolt, 1 1/8" (5 NSS)

1шт.

3

80289488

KNIFE HEAD

1шт.

4

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

5

701401

BUSHING,Knife Head, .865" ID x .999" OD x 1.94" L

Includes: Ref. 6 - 10

1шт.

6

612408

HUB

Includes: Ref. 7, 9, & 17

1шт.

7

88106

LOCK PIN,3/32" x 1/4", Slotted

1шт.

8

288749

SHAFT

1шт.

9

121189

OIL SEAL

Wipe, 1-1/4" OD x 1/8" Thk

2шт.

10

579497

CIRCLIP,M20

2шт.

11

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

12

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

2шт.

13

232-4146

NUT,3/8"-16, GC

2шт.

14

NSS

NOT SOLD SEPARAT

Back, Knife

1шт.

15

86616689

KNIFE SECTION

Big Tooth, Chrome

36шт.

Knife back hardened

1шт.

16

86616691

KNIFE SECTION

Big Tooth, Black

36шт.

Knife back hardened

1шт.

17

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

1шт.

18

428-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 8

1шт.

19

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

OSR, Black, Back Hardened

36шт.

20

86616588

KNIFE SECTION

"T-Rex"

36шт.

21

86617760

KNIFE SECTION

End, OSR

1шт.

22

9602227

LOCK NUT,5/8"-18, GC

1шт.

23

86507777

KIT

Knife Bolt & Nut, 5/8"

1шт.

Includes: (50) 5/8" Knife Bolts (NSS) & (50) Locknuts, Ref. 49

1шт.

24

86507779

BOLT AND NUT,Truss HD, #12 - 24 x 1-1/16", Gr 8

Knife Bolt & Nut, 1"

1шт.

Includes: (25) 1"Knife Bolts (NSS) & (25) Locknuts, Ref. 49

1шт.

25

86507780

KIT

Knife, 1-1/8"

1шт.

Includes: (25) 1-1/8" Knife Bolts (NSS) & (25) Locknuts, Ref. 49

1шт.

26

86615984

GUARD

End, Standard

2шт.

27

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

1шт.

28

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

1шт.

29

425-107

NUT,7/16"-14, G5

1шт.

30

86615982

GUARD

17шт.

31

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

32

433-720

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5

17шт.

33

86616976

KIT

Repair, OS, RH, End

1шт.

Includes: Ref. 21 (2), Knife Bolts (6 NSS), & Ref. 49 (6)

1шт.

34

86617059

GUARD

RH, Stub

1шт.

Used on Units with Stub Guards

1шт.

35

86617060

GUARD

LH, Stub

1шт.

Used on Units with Stub Guards

1шт.

36

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

37

86631018

KNIFE CLIP

Hold-Down

3шт.

Used on Units with Stub Guards

1шт.

38

86631017

KNIFE CLIP

High Hold-Down

15шт.

Used on Units with Stub Guards

1шт.

39

86617061

GUARD

Stub

17шт.

40

199283

SHIM

1" x 4" x .036"

1шт.

Used on Units with Stub Guards

1шт.

41

86622663

SHIM,26.99mm OD x 0.25mm Thk

1" x 4" x .010"

1шт.

42

86617518

KIT

Standard Adjustable Holdown, Includes: Ref. 43 - 48

1шт.

43

231-5346

FLANGE NUT,Flg, 3/8"-16

9шт.

44

86630787

KNIFE CLIP

9шт.

45

86630786

KNIFE CLIP,Heat Treated

Heat Treated

9шт.

46

86517871

PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5

9шт.

47

86512826

SHIM

0.060"

8шт.

48

139188

SHIM,.090" Thk

9шт.

49

848083

LOCK NUT

#12-24, Used in Kits, Ref. 2. 23, 24, 25, & 33

1шт.

Not Illustrated

1шт.
