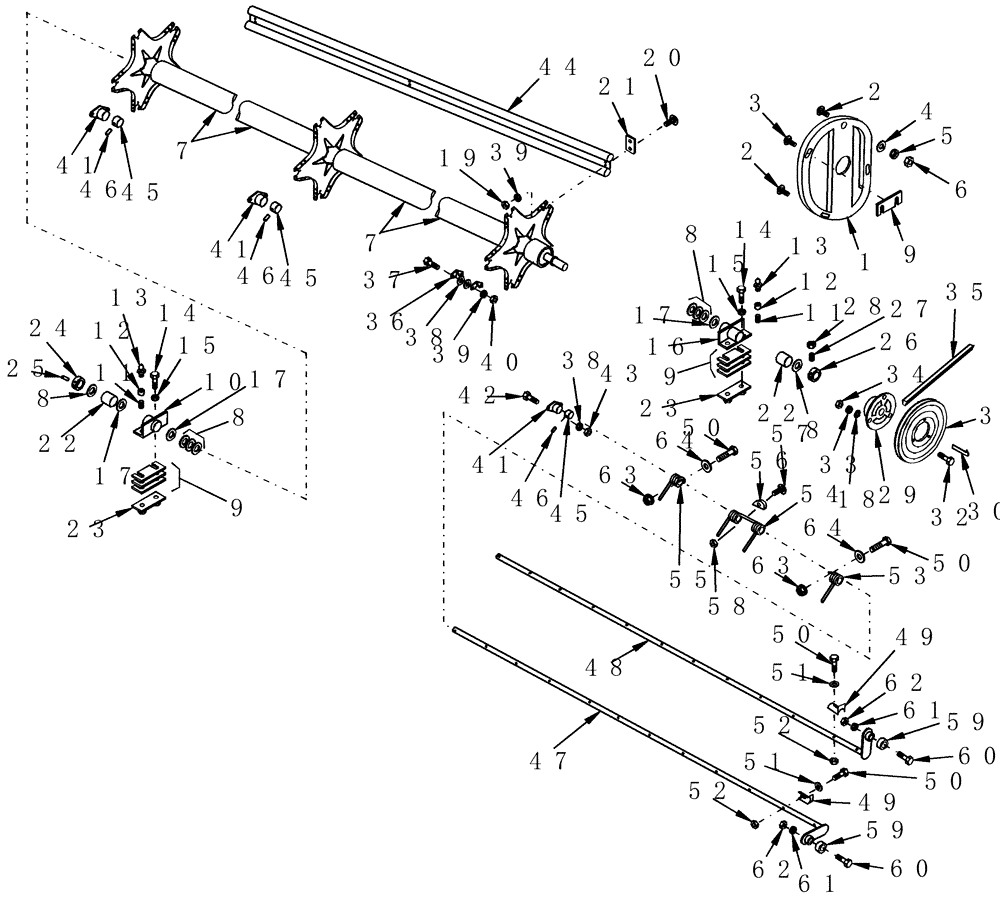

Запчасти Case IH SMX91 (13.01) - REEL (13) - REEL

1

86631083

CHAIN GUIDE

CHAIN TRACK

1шт.

2

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

3

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

4

495-21044

WASHER,3/8"

3шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

6

425-286

FLANGE NUT,Flg, 3/8"-16, G5

3шт.

7

86631086

REEL

1шт.

8

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

8шт.

9

262951

SHIM,.135" Thk

10шт.

10

86631082

HUB

RH, Includes: Ref. 22

1шт.

11

87662

HYD CONNECTOR

Pipe, 1/8" x 4"

2шт.

12

91932

COUPLING,1/8" - 27 NPT x 1/8" - 27 NPT

Pipe, 1/8"

2шт.

13

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

2шт.

14

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

15

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

16

86631085

HUB

LH, Includes: Ref. 22

1шт.

17

9803138

WASHER

1шт.

18

495-11034

WASHER,5/16", SAE

6шт.

19

425-285

FLANGE NUT,Flg, 5/16"-18, G5

24шт.

20

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

24шт.

21

86631084

REINFORCEMENT

15шт.

22

46826

BUSHING,35.08mm ID x 38.13mm OD x 50.8mm L

2шт.

23

221295

ANTI-SKID STRIP

2шт.

24

86631081

COLLAR

1шт.

25

88276

GROOVED PIN,7.94mm OD x 50.8mm L

1шт.

26

9801095

COLLAR

1шт.

27

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

28

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

29

86631089

HUB

1шт.

30

606173

KEY

1шт.

31

86632439

PULLEY

1шт.

32

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

6шт.

33

492-11031

LOCK WASHER,5/16"

6шт.

34

425-105

NUT,5/16"-18, G5

6шт.

35

86627790

V-BELT,0.88" W x 94.20" L

1шт.

36

86631090

GUIDE

10шт.

37

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

15шт.

38

492-11031

LOCK WASHER,5/16"

60шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

45шт.

40

425-285

FLANGE NUT,Flg, 5/16"-18, G5

15шт.

41

86631094

HOUSING

15шт.

42

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

20шт.

43

425-285

FLANGE NUT,Flg, 5/16"-18, G5

30шт.

44

86625543

BAT

Kit (Contains One Bat)

5шт.

45

286078

BUSHING,34.04mm ID x 43.94mm OD x 28.45mm L

15шт.

46

80579116

PIN,9.53mm OD x 40.39mm L

15шт.

47

86625890

TINE

No. 1 - 13 Tines (12 of Ref. 54, 1 of Ref. 53)

3шт.

48

86625892

TINE

No. 2 - 14 Tines (12 of Ref. 54, 1 of Ref. 53, & 1 of Ref. 55)

2шт.

49

86631093

CLIP

5шт.

50

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

10шт.

51

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

5шт.

52

280736

NUT,5/16"-18, GC

4шт.

53

127820

REEL TINE

LH

5шт.

54

76517

REEL TINE,Coiled, 2 Prongs, 205mm L

60шт.

55

76516

REEL TINE

RH

2шт.

56

772028

CLIP

60шт.

57

433-532

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

60шт.

58

425-105

NUT,5/16"-18, G5

60шт.

59

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

Cam Track

5шт.

60

121831

BOLT

HH, G2, 5/8"-18 x 2-1/4"

5шт.

61

492-11062

BEARING WASHER,5/8"

5шт.

62

425-1110

NUT,5/8"-18, G5

5шт.

63

87382

LOCK NUT,5/16"-18, GB

10шт.

64

495-21038

WASHER,5/16"

10шт.
