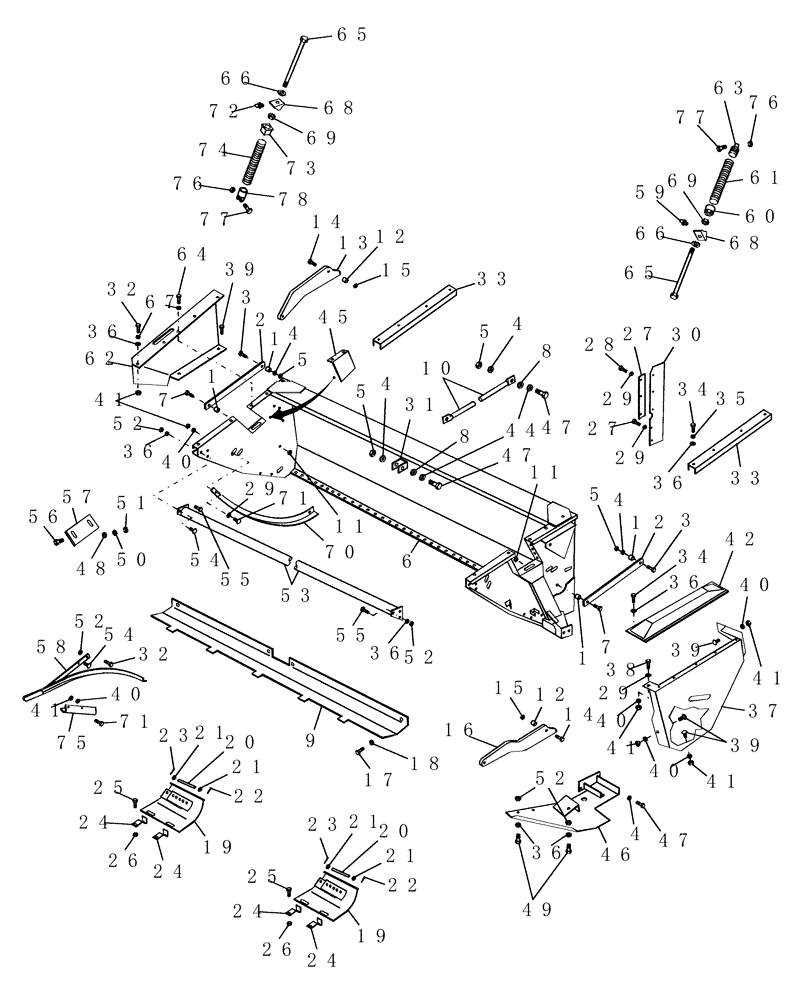

Запчасти Case IH SMX91 (12.03) - HEADER (12) - MAIN FRAME

1

54627

SPACER

4шт.

2

86643329

LINK

2шт.

3

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

8шт.

5

425-288

FLANGE NUT,Flg, 1/2"-13, G5

8шт.

6

86630785

HEAD ASSY.

Includes: Ref. 33 (2)

1шт.

7

86521618

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

8

12595

CAM FOLLOWER

2шт.

9

770952

PLATE

1шт.

10

86631119

TUBE,1.315" OD

1шт.

11

232-4148

NUT,1/2"-13, GC

2шт.

12

86631329

SPACER

2шт.

13

86625455

LOWER LINK

RH

1шт.

14

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

2шт.

15

232-41412

LOCK NUT,3/4"-10, GC

2шт.

16

86631330

LOWER LINK

LH

1шт.

17

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

86630783

SHOE

2шт.

20

626183

PIN,15.88mm OD x 149.22mm L

2шт.

21

495-11066

WASHER,5/8", SAE

4шт.

22

432-1020

COTTER PIN,5/32" x 1 1/4"

2шт.

23

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

24

86629289

CLIP

4шт.

25

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

4шт.

26

425-107

NUT,7/16"-14, G5

4шт.

27

86631115

STRAP

1шт.

28

87887

SELF-TAP SCREW,Hex Hd, 5/16" x 3/4"

5шт.

29

495-21038

WASHER,5/16"

6шт.

30

707672

DEFLECTOR

1шт.

31

86631355

BRACKET

1шт.

32

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

9шт.

33

86631103

CHANNEL

2шт.

34

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

35

677913

WASHER

1шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

13шт.

37

86631140

SHIELD

LH

1шт.

38

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

39

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

41

425-285

FLANGE NUT,Flg, 5/16"-18, G5

13шт.

42

86625683

COVER ASSY

1шт.

43

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

44

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

2шт.

45

86625554

SHIELD

1шт.

46

86631138

GUARD ASSY.

1шт.

47

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3шт.

48

495-11034

WASHER,5/16", SAE

2шт.

49

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

50

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

2шт.

51

280736

NUT,5/16"-18, GC

2шт.

52

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

53

86625484

BAR ASSY.

1шт.

54

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

55

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

5шт.

56

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

57

647876

WEAR STRIP

Tire Carcass

1шт.

58

86616944

DIVIDER

RH

1шт.

59

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

Removed From Production, 4/04

1шт.

60

648041

SPRING NUT

1шт.

61

263853

SPRING

LH

1шт.

62

86625642

SHIELD

RH

1шт.

63

144659

SPRING NUT

Spring, LH

1шт.

64

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

65

257460

BOLT,Hex, 5/8" - 11 x 17.12", Full Thd

2шт.

66

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

5/8"

2шт.

67

492-11038

LOCK WASHER,3/8"

2шт.

68

263170

PIVOT

2шт.

69

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

70

86632455

GUARD

1шт.

71

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

72

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

Removed From Production, 4/04

1шт.

73

648044

SPRING NUT

Spring

1шт.

74

263852

SPRING

RH

1шт.

75

86631113

WEAR PLATE

1шт.

76

85700693

NUT,5/8" - 11, Gr C

1шт.

77

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

78

603968

SPRING NUT

Spring, RH

1шт.
