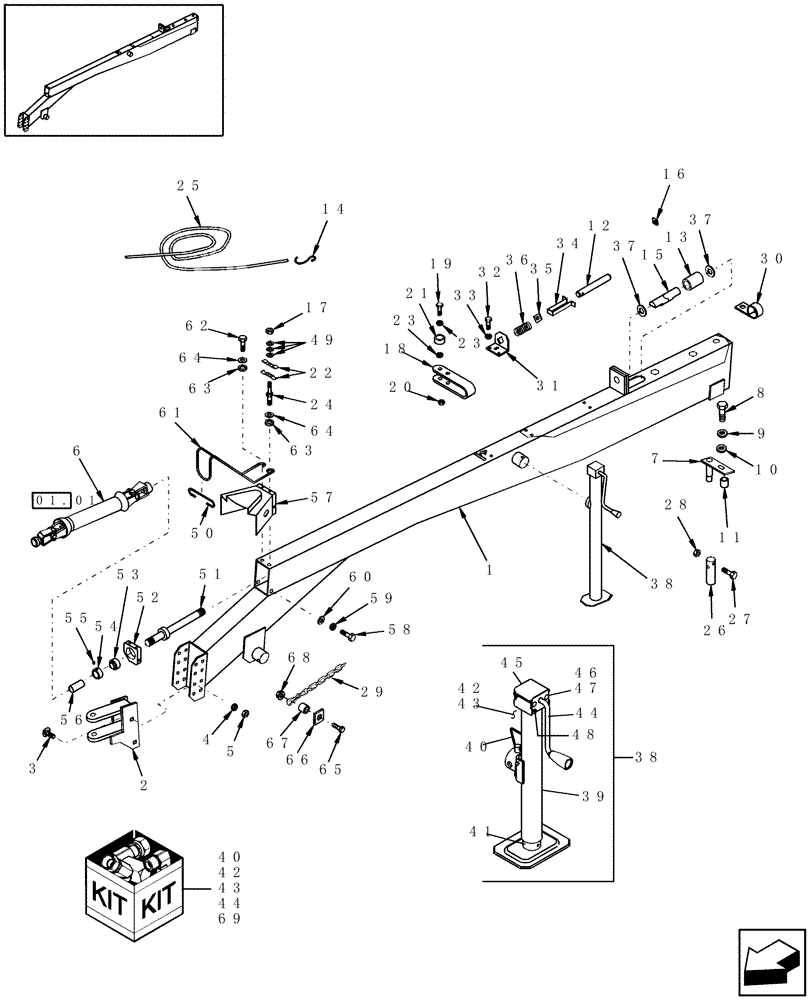

Запчасти Case IH SMX91 (12.02) - TONGUE & JACK (12) - MAIN FRAME

1

86629454

TOW BAR

1шт.

2

86630555

HITCH

1шт.

3

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

0C

ORDER COMPONENTS

PTO, Front

1шт.

7

86531171

PIN

1шт.

8

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

10

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

1шт.

11

249825

SPACER

1шт.

12

86631027

LOCK PIN

1шт.

13

706269

ROLLER

1шт.

14

86900721

SPRING

S

1шт.

15

619929

PIN,25.4mm OD x 112.01mm L

1шт.

16

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

17

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

18

86631029

LATCH

1шт.

19

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

20

280736

NUT,5/16"-18, GC

2шт.

21

228127

SPACER,8.73mm ID x 34.92mm OD x 15.88mm L

1шт.

22

207705

CLAMP,15.8mm ID

2шт.

23

495-21038

WASHER,5/16"

2шт.

24

770983

BOLT

1шт.

25

175707

ROPE

1шт.

26

86531170

SHAFT

Pivot

1шт.

27

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

28

280736

NUT,5/16"-18, GC

1шт.

29

850116

CHAIN

Safety Tow Chain

1шт.

30

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

31

86631030

ANGLE

Latch

1шт.

32

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

33

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

34

86631028

CONNECTING LINK

1шт.

35

861165

SQ HOLE WASHER

1шт.

36

86628569

SPRING

1шт.

37

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

2шт.

38

86617866

JACK

Includes: Ref. 39 - 48

1шт.

39

NSS

NOT SOLD SEPARAT

Tube, Outer

1шт.

40

86590810

KIT

Pin & Chain

1шт.

41

NSS

NOT SOLD SEPARAT

Tube, Inner

1шт.

42

86590811

KIT

Gear

1шт.

43

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing

1шт.

44

86590812

KIT

Crank

1шт.

45

86590816

COVER

Gearbox

1шт.

46

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

47

425-104

NUT,1/4"-20, Cl 5

1шт.

48

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

49

495-21044

WASHER,3/8"

9шт.

50

86630553

CLIP

1шт.

51

289907

SHAFT

1шт.

52

9614968

BEARING ASSY,2.28" ID x 2.56" OD x 1"

Includes: Ref. 53

1шт.

53

NSS

NOT SOLD SEPARAT

Bearing, Ball

1шт.

54

557995R11

COLLAR

Locking, Includes: Set Screw

1шт.

55

608186

SET SCREW,1/2" - 20 x 1-1/4", Gr 8

1шт.

56

287239

SPACER

1шт.

57

86625828

SHIELD

1шт.

58

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

60

495-21056

WASHER,1/2"

2шт.

61

86630554

HANDRAIL

1шт.

62

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

63

167381

SPACER

2шт.

64

695335

WASHER,12.95mm ID x 37.59mm OD x 4.75mm Thk

2шт.

65

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

66

87587325

PLATE

Plate

1шт.

67

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

68

85700693

NUT,5/8" - 11, Gr C

1шт.

69

W0

ORDER WHOLEGOODS

Mechanical Shift Kit, Includes: Ref. 12, 14, 18, 21, 25, 31, 32, & 34 - 36

1шт.
