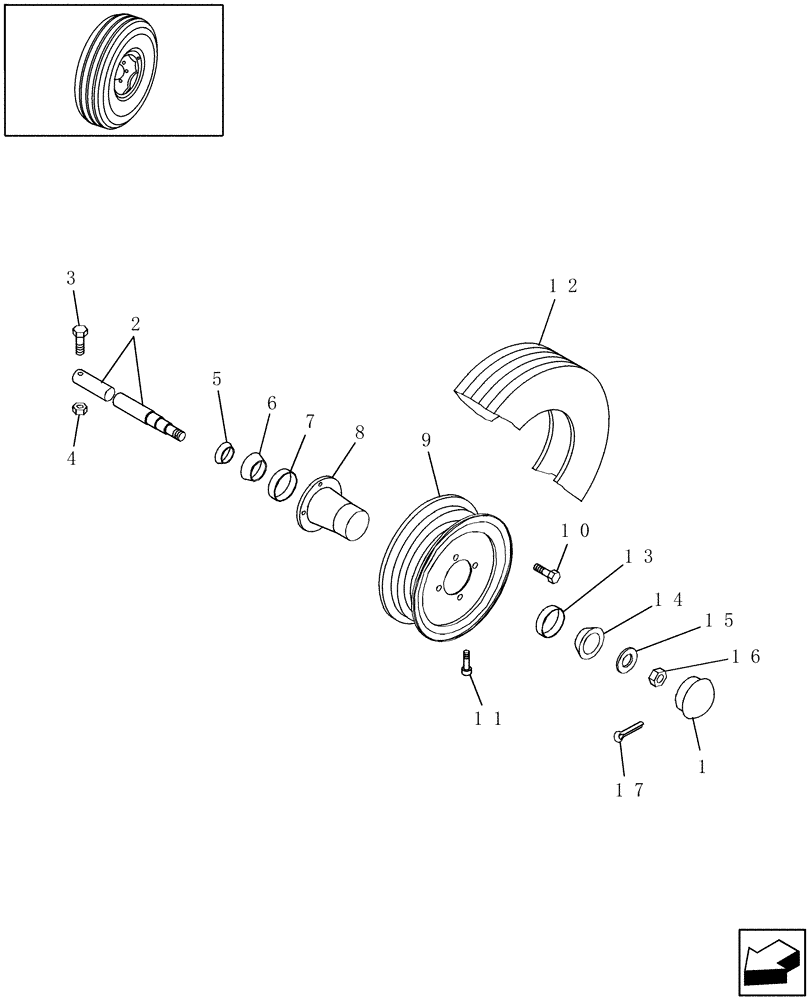

Запчасти Case IH SMX91 (11.01) - WHEELS, SPINDLES, & TIRES (11) - WHEELS

1

249130

HUB CAP

1шт.

2

574808

SPINDLE

1шт.

3

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

4

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

5

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

Oil

1шт.

6

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.

7

36723

BEARING CUP,59.16mm OD x 11.81mm W

1шт.

8

86631051

HUB

Wheel

1шт.

9

87680069

WHEEL ASSY

15" for 27 x 9.50-15 Tire

1шт.

10

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

6шт.

11

387897R91

VALVE STEM

1шт.

12

224151

TYRE/TIRE

4 Ply Tubeless, Terra Rib Tread 27 x 9.50-15

1шт.

13

574810

BEARING CUP,45.26mm OD x 12.06mm W

1шт.

14

536056R91

ROLLER BEARING,0.8656" ID x 0.655"

1шт.

15

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

3/4" x .135" Thk.

1шт.

16

88886

SLOTTED NUT,3/4"-16

1шт.

17

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

18

87298555

KIT

Includes: 5, 6, 7 & 13 - 17

2шт.

Wheel Bearing Kit / Ship Direct Option

1шт.
