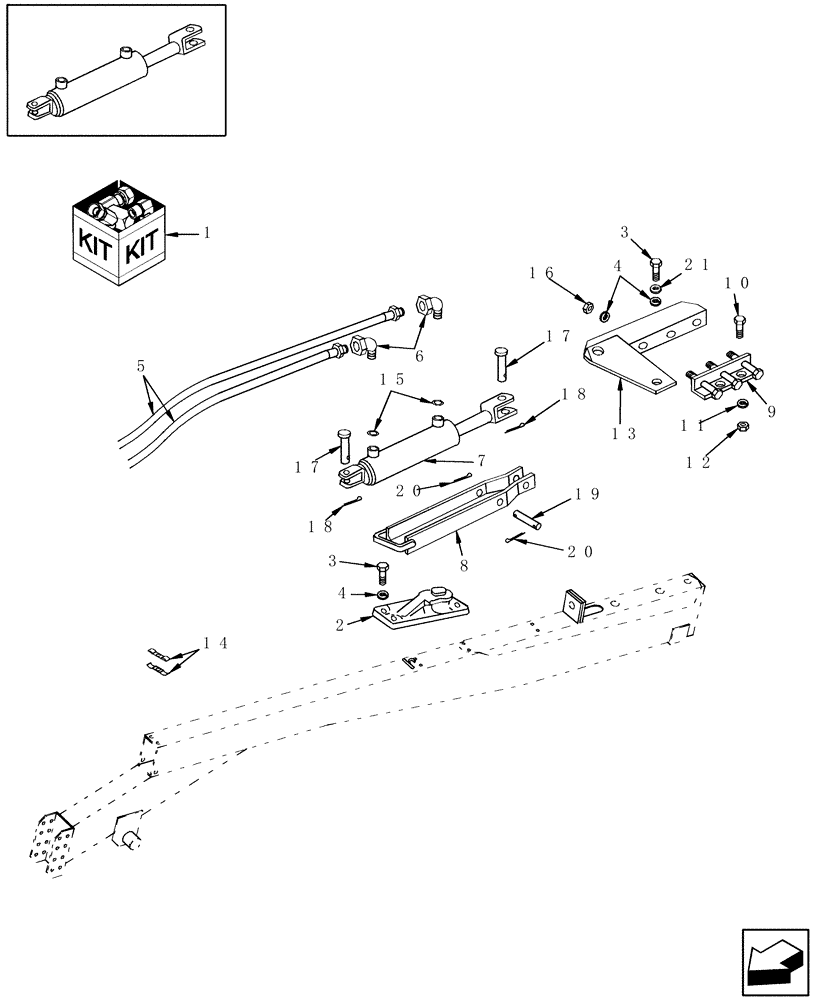

Запчасти Case IH SMX91 (07.03) - HYDRAULIC TONGUE SHIFT KIT (07) - HYDRAULICS

1

715311006

ACCESSORIES

KIT, Hydraulic Tongue Shift

1шт.

2

86631037

BRACKET

1шт.

3

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5шт.

4

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

5

770985

FLEXIBLE HOSE

1/4" ID x 129" L, 3/8"-18 NPTF to 1/2"-14 NPTF Fittings

2шт.

Used W/cylinder 86631038

1шт.

5

86520307

HOSE,0.25" ID x 129.00", SAE J516

Hydraulic

2шт.

Used W/Cylinder 87018061. Not compatible W/ BSN Components

1шт.

6

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

2шт.

Used W/cylinder 86631038

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

Used W/Cylinder 87018061. Not compatible W/ BSN Components

1шт.

7

86631038

HYDRAULIC CYLINDER

Refer to Fig. 07.01[1]

1шт.

7

87018061

CYLINDER ASSY.,Double Acting, 28.7mm Rod, 203.2mm Stroke

HYDRAULIC Refer to Fig 07.01[2]

1шт.

8

86631036

YOKE

1шт.

9

86629196

ANGLE

1шт.

10

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

2шт.

13

86631034

SUPPORT ASSY.

1шт.

14

207705

CLAMP,15.8mm ID

2шт.

15

277022

ORIFICE

.044"

2шт.

Used with cylinders with 3/8" NPTF ports

1шт.

15

705914

ORIFICE

.040"

1шт.

Used with cylinders, 9/16"-18 ports

1шт.

16

425-1010

NUT,5/8"-11, G5

3шт.

17

514112

PIN

2шт.

18

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

19

235362

CLEVIS PIN,19.05mm OD x 4mm L

1шт.

20

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

2шт.

21

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

5/8"

1шт.
