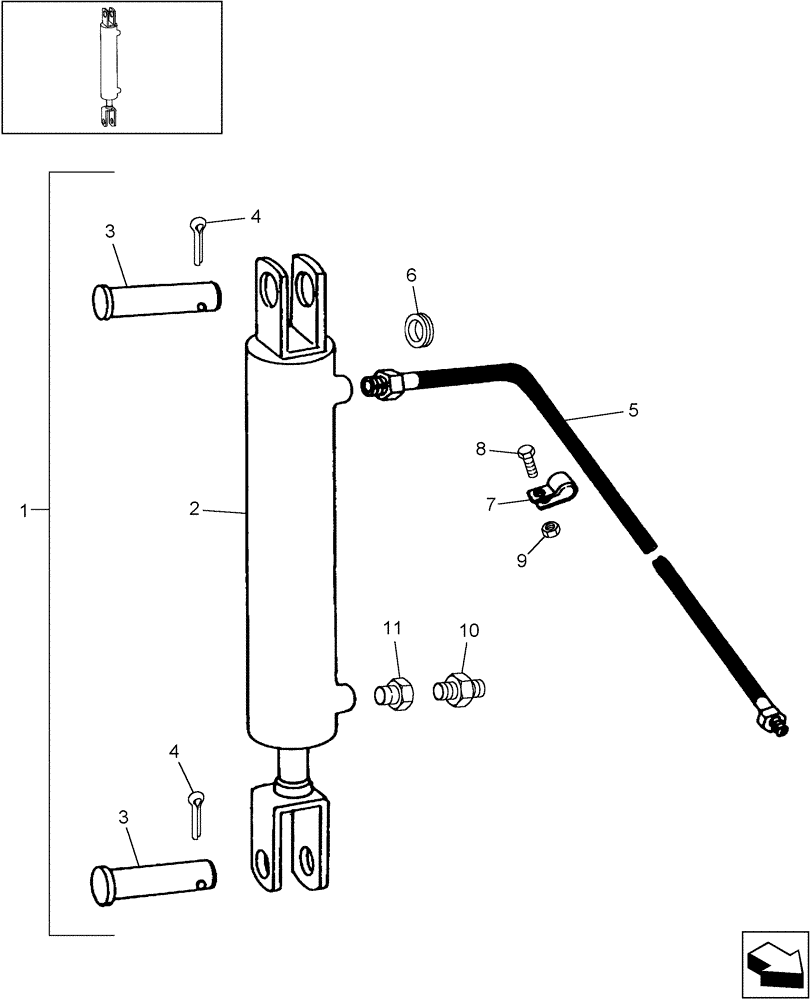

Запчасти Case IH SMX91 (07.02[1]) - HYDRAULIC LIFT KIT W/86631038 CYLINDER (07) - HYDRAULICS

1

W0

ORDER WHOLEGOODS

Hydraulic Lift Kit

1шт.

2

86631038

HYDRAULIC CYLINDER

Lift, Refer to Fig. 07.01[1]

1шт.

3

514112

PIN

2шт.

4

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

5

770980

HOSE

1/4" ID x 195" L

1шт.

6

529828

GROMMET,2 1/8" x 2 7/8" x 2 1/2"

1шт.

7

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

8

690341

SELF-TAP SCREW

Flg, USR, 5/16"-18 x 5/8"

3шт.

9

232-4146

NUT,3/8"-16, GC

1шт.

10

854071

BREATHER

1шт.

11

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

1шт.
