(07.01[2]) - HYDRAULIC CYLINDER, LIFT & TONGUE SHIFT, 87018061

Запчасти Case IH SMX91 (07.01[2]) - HYDRAULIC CYLINDER, LIFT & TONGUE SHIFT, 87018061 (07) - HYDRAULICS

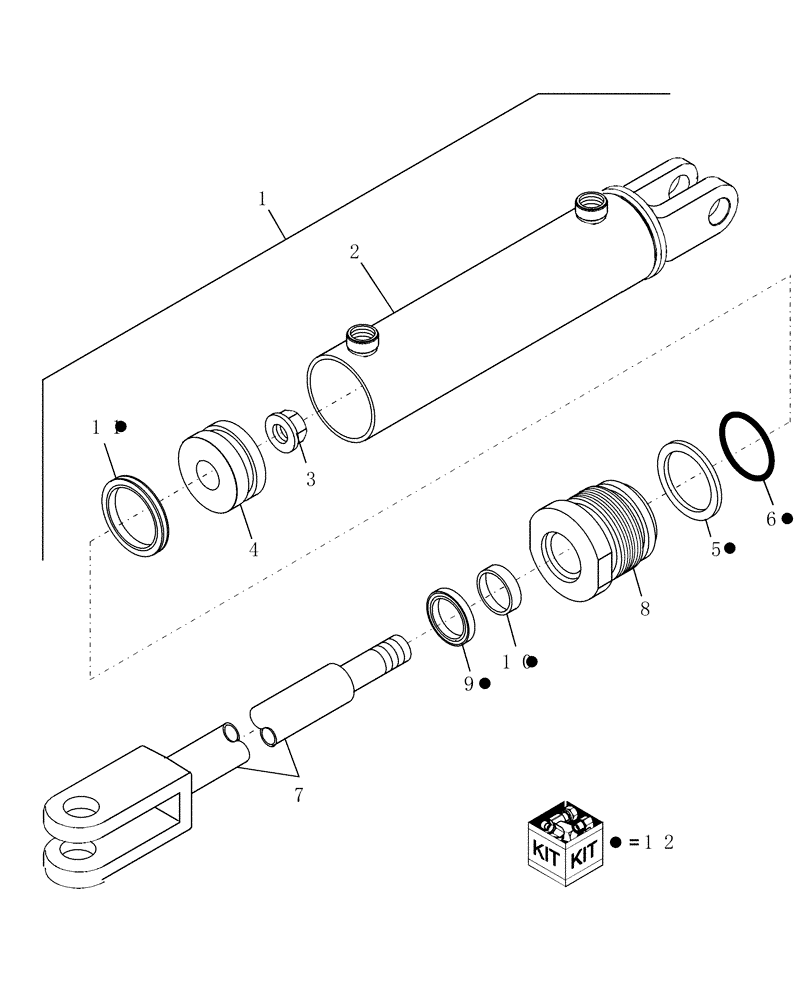

Схема запчастей Case IH SMX91 - (07.01[2]) - HYDRAULIC CYLINDER, LIFT & TONGUE SHIFT, 87018061 (07) - HYDRAULICS
11
5
10
3
8
12
1
7
6
9
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87018061

CYLINDER ASSY.,Double Acting, 28.7mm Rod, 203.2mm Stroke

HYDRAULIC

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2007 = M / week / year )

1шт.

2

NS

NOT SERVICED

Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

87027472

PISTON

1шт.

5

9603673

WASHER

Back-up

1шт.

6

510185

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

7

87033054

PISTON ROD

1шт.

8

87027468

HEAD

1шт.

9

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

10

592790

INDICATOR

1-1/8" ID x 1-3/8" OD

1шт.

11

86563839

SEAL,53.34mm ID x 64.01mm OD x 6.99mm Thk

Piston

1шт.

12

87027480

SEAL KIT

Includes: Ref. 5, 6, 9, 10, & 11

1шт.
