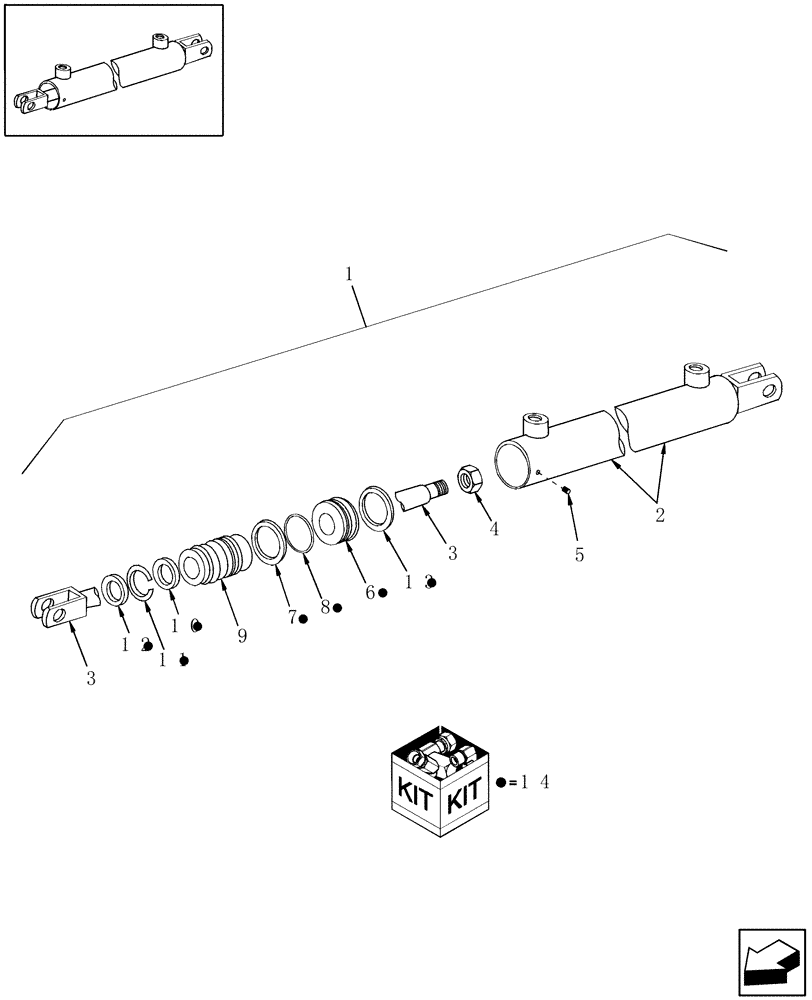

Запчасти Case IH SMX91 (07.01[1]) - HYDRAULIC CYLINDER, LIFT & TONGUE SHIFT, 86631038 (07) - HYDRAULICS

1

86631038

HYDRAULIC CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

Manufacturers' Production Date Stamp - (ex. 25 01 = week / year)

1шт.

3

771583

ROD

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

6

591984

TIE-ROD

1шт.

7

235785

BACK-UP RING,54.05mm ID x 63.6mm OD x 1.63mm Thk

Back-Up Washer, 2.138" ID x .064" Thk

1шт.

8

238-5330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

Polyurethane

1шт.

9

86516919

CYLINDER HEAD

1шт.

10

80592790

SEAL,28.7mm ID x 34.8mm OD x 6.35mm Thk

1-1/8" ID x 1-3/8" OD

1шт.

11

517561

SNAP RING

1шт.

12

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

13

86563839

SEAL,53.34mm ID x 64.01mm OD x 6.99mm Thk

Polyurethane

1шт.

14

86557266

SEAL KIT

1шт.
