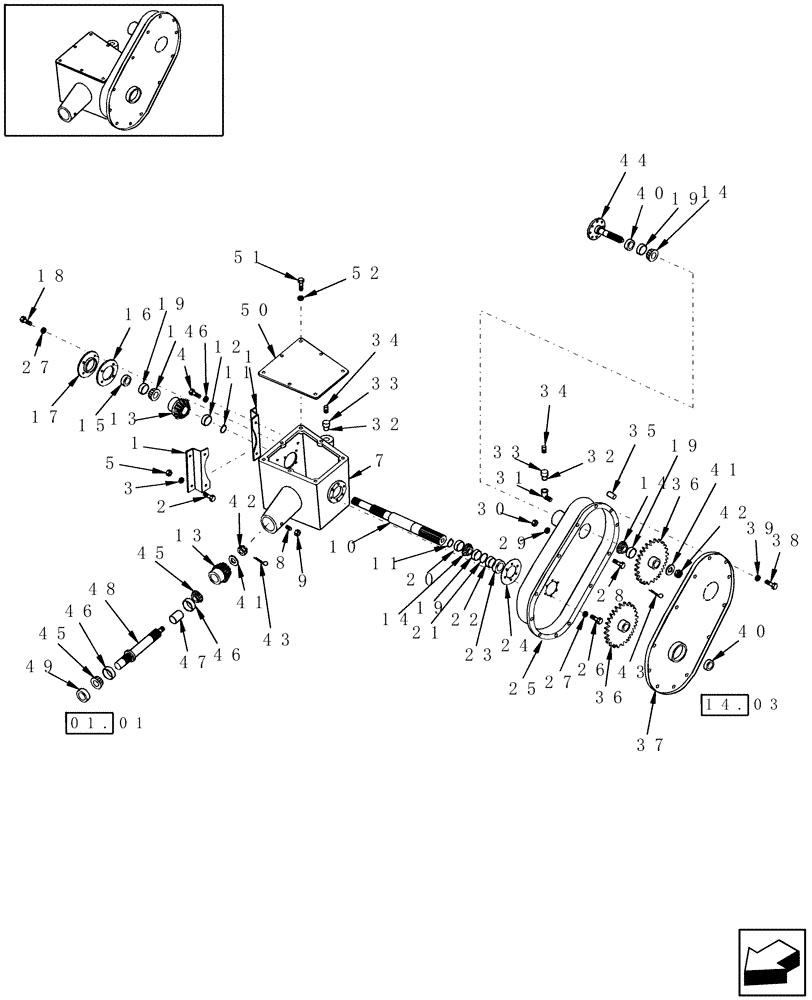

Запчасти Case IH SMX91 (03.01) - GEARBOX, MAIN & CONDITIONER (03) - MAIN GEARBOX

1

86631340

BRACKET

2шт.

2

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

3

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

5

425-288

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

86631332

HOUSING

1шт.

8

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

2шт.

9

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

10

86531638

SHAFT

1шт.

11

46810

SNAP RING,Ext, 1.288"

2шт.

12

770904

SPACER

1шт.

13

701848

BEVEL PINION

1шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

4шт.

15

701519

OIL SEAL

Oil

1шт.

16

261584

SHIM,.003" Thk

1шт.

16

261585

SHIM,.005" Thk

1шт.

16

261586

SHIM,.0075" Thk

1шт.

16

86617103

SHIM

.020"

1шт.

17

86631339

CAP

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

651817R91

BEARING, CUP

4шт.

20

86631337

SPACER

1шт.

21

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

1шт.

22

284874

RING

1шт.

23

616414

OIL SEAL

1шт.

24

261580

SHIM

.003"

1шт.

24

261581

SHIM

.005"

1шт.

24

261582

SHIM

.0075"

1шт.

24

86617098

SHIM

.020"

1шт.

25

86631336

HOUSING

1шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

27

492-11038

LOCK WASHER,3/8"

10шт.

28

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

29

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

30

425-288

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

31

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

32

9821757

PLUG

2шт.

33

46566

BREATHER

2шт.

34

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

35

37-1512

DOWEL,5/16" x 3/4"

2шт.

36

86603255

GEAR

64T, Forged

2шт.

37

86631334

COVER

1шт.

38

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

39

492-11031

LOCK WASHER,5/16"

10шт.

40

618778

OIL SEAL

2шт.

41

56867

WASHER

2шт.

42

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

2шт.

43

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

44

86531637

SHAFT

1шт.

45

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

2шт.

46

H433209

BEARING CUP

2шт.

47

213715

SPACER,50.8mm ID x 59.05mm OD x 49.78mm L

1шт.

48

255649

SHAFT

1шт.

49

9828834

SEAL

1шт.

50

86631338

COVER

1шт.

51

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

7шт.

52

492-11025

LOCK WASHER,1/4"

7шт.
