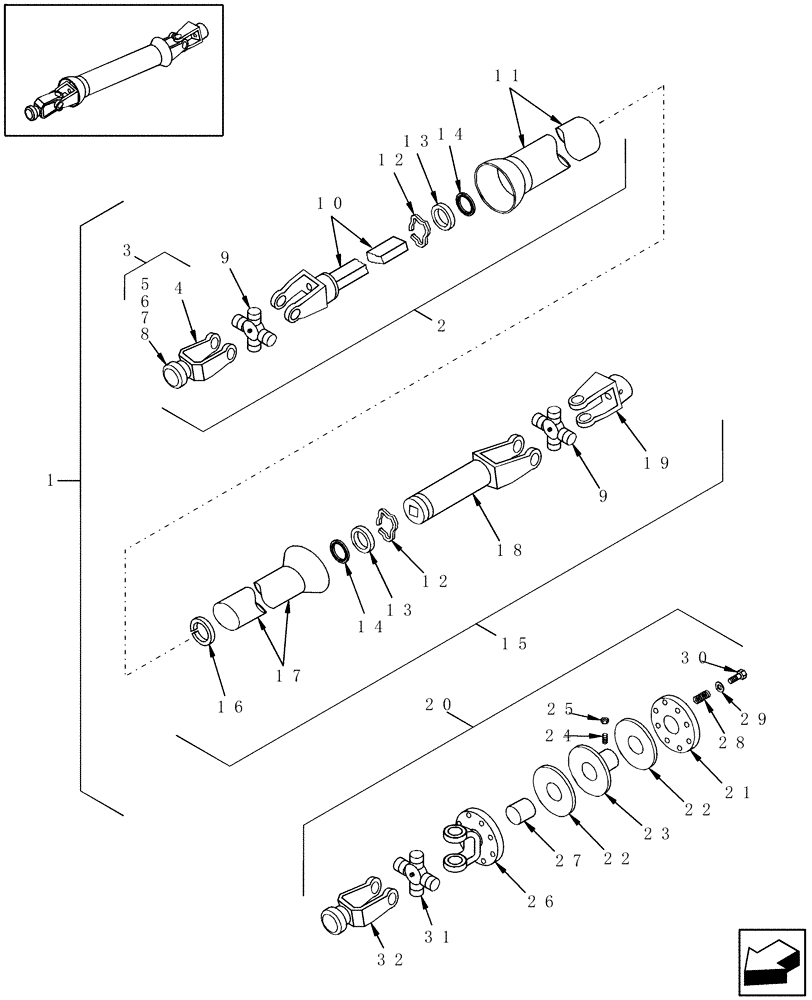

Запчасти Case IH SMX91 (01.01) - FRONT PTO & SLIP CLUTCH (01) - PTO DRIVE SHAFT

1

0C

ORDER COMPONENTS

Front PTO

1шт.

2

86509391

PTO

Front, Male, Includes: Ref. 3, 9 - 14

1шт.

3

86507242

YOKE

Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

Yoke, Slide Collar, QD

1шт.

5

855716

COLLAR

Slide

1шт.

6

855717

BALL

3шт.

7

86628566

SPRING

1шт.

8

855719

CIRCLIP

1шт.

9

H71167

JOURNAL

2шт.

10

690151

YOKE

Shaft

1шт.

11

86509393

OUTER SHIELD

Plastic, Includes: Ref. 33

1шт.

12

56760

SNAP RING

2шт.

13

56801

THRUST WASHER

2шт.

14

579113

BUSHING,2.082" ID x 2.804" OD x 0.375"

2шт.

15

86509392

YOKE

Tube Shield, Rear, Female, Includes: Ref. 9, 12 - 14, 16 - 19, & 34

1шт.

16

273422

NYLON BEARING,49.07mm ID x 80.52mm OD x 6.48mm L

1шт.

17

86509394

INNER SHIELD

1шт.

18

600375

PTO SHAFT

Yoke & Tube

1шт.

19

700035

YOKE

Equal Angle

1шт.

19

608186

SET SCREW,1/2" - 20 x 1-1/4", Gr 8

1шт.

19

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

20

86631331

SLIP CLUTCH

Includes: Ref. 39 - 50

1шт.

21

261565

CLUTCH DRIVING PLATE

1шт.

22

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

2шт.

23

175933

FLANGE

Clutch

1шт.

24

9608023

SET SCREW,1/2" - 20 x 1-1/2", Gr 8

1шт.

25

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

26

86500917

YOKE

& Flange

1шт.

27

222940

BUSHING

1шт.

28

52196

SPRING

8шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

24шт.

30

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

8шт.

31

H71167

JOURNAL

3шт.

32

261566

YOKE

1шт.

33

849471

DANGER DECAL

1шт.

Not Illustrated

1шт.

34

849472

DANGER DECAL

1шт.

Not Illustrated

1шт.
