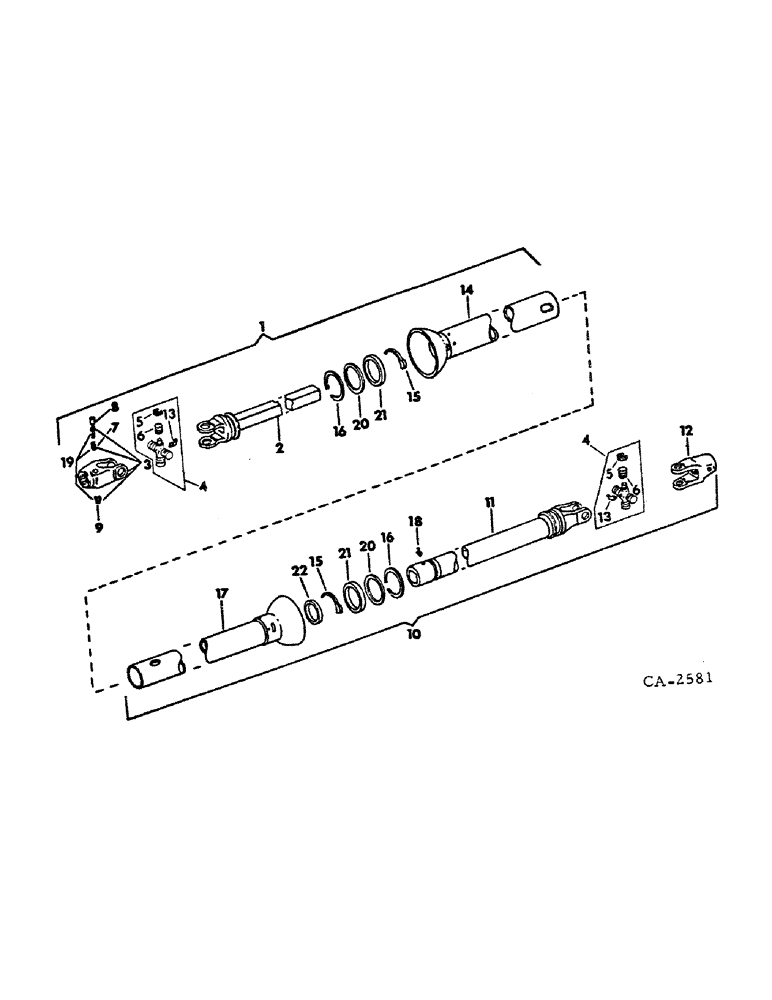

Запчасти Case IH 990 (S-11) - UNIVERSAL JOINT DRIVE

1

464914R92

JOINT ASSY, shielded single universal front half, tractor end, Rockwell standard or chain belt, optional with 542775R92

1шт.

1

542775R92

SPARE PART

JOINT ASSY, shielded single universal front half, tractor end, Hayes Dana, optional with 464914R92

1шт.

2

464915R1

YOKE

W/SHAFT, used with 464912R92, Rockwell standard or chain belt

1шт.

2

542955R1

YOKE

W/SHAFT, used with 542775R92, Hayes Dana

1шт.

3

487083R91

YOKE

ASSY, quick detachable, Rockwell standard or chain belt, used with 464914R92

1шт.

3

596607R91

YOKE

ASSY, quick detachable, Hayes Dana, used with 542775R92

1шт.

4

659262R91

U-JOINT SPIDER

KIT, center cross, Rockwell standard, used with 464914R92 and 464917R91

1шт.

4

609144R91

CROSS

KIT, center cross, Hayes Dana, used with 542775R92 and 542776R92

2шт.

4

480486R91

CROSS

KIT, center cross, chain belt, used with 464914R92 and 464917R91

2шт.

5

606177R1

SNAP RING

RING, snap, chain belt, used with 480486R91

4шт.

5

661657R1

RING

snap, Rockwell standard, used with 659262R91

4шт.

5

609154R1

RING

snap, Hayes Dana, used with 609144R91

4шт.

6

BEARING ASSY, cup, not serviced separately, order Ref. no. 4

4шт.

7

455347R1

VALVE SPRING

SPRING, locking pin, Rockwell standard or chain belt, used with 487083R91

1шт.

7

613868R1

SPRING

locking pin, Hayes Dana, used with 596607R91

1шт.

8

PIN, locking, chain belt or Rockwell standard, not serviced separately, order Ref. no. 19

1шт.

8

613867R1

PIN

locking, Hayes Dana, used with 596607R91

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

9

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin, Rockwell standard or chain belt, used with 487083R91

1шт.

10

464917R91

JOINT ASSY, shield single universal rear half, implement end, Rockwell standard or chain belt, optional with 542776R92

1шт.

10

542776R92

SHORT SHAFT

JOINT ASSY, shielded single universal rear half, implement end, optional with 464917R91, Hayes Dana

1шт.

11

464918R91

TUBE

YOKE TUBE SLEEVE, Rockwell standard or chain belt, used with 464917R91

1шт.

11

542886R1

SHORT SHAFT

YOKE W/TUBE, Hayes Dana, used with 542776R92

1шт.

12

460902R1

YOKE

W/SET SCREW, Rockwell standard or chain belt, used with 464917R91

1шт.

12

609148R1

YOKE

rear, Hayes Dana, used with 542776R92

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 sq-hd cup pt set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

13

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg lub

1шт.

14

464916R1

SHIELD

outer, used with 464914R92, Rockwell standard or chain belt

1шт.

14

542885R2

KIT

SHIELD, outer, used with 542775R92, Hayes Dana

1шт.

15

542956R1

NYLON BEARING,0.312"

used with 542775R92 and 542776R92

3шт.

16

613436R1

CLAMP

SNAP RING, shield, Rockwell standard or chain belt, used with 464914R92 and 464917R91

1шт.

17

464919R1

SHIELD

inner, Rockwell standard or chain belt, used with 464917R91

1шт.

17

542887R1

SHIELD

inner, Hayes Dana, used with 542776R92

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF straight lub, used with 542886R1

2шт.

18

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF-2 straight lub, used with 464918R91

1шт.

19

455346R21

PIN

ASSY, locking, Rockwell standard or chain belt, used with 487083R91

1шт.

20

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust, Rockwell standard or chain belt, used with 464914R92 and 464917R91

1шт.

21

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon, Rockwell standard or chain belt, used with 464914R92 and 464917R91

1шт.

22

613439R1

BRACKET

SUPPORT, nylon, Rockwell standard or chain belt, used with 464917R91

1шт.
