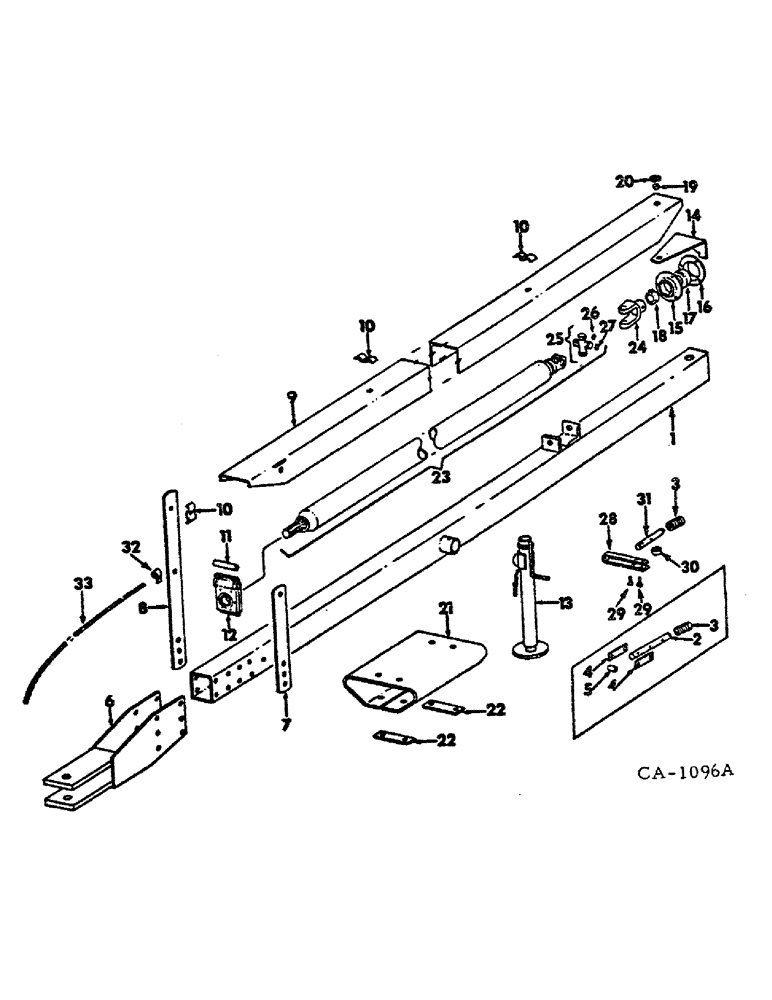

Запчасти Case IH 990 (S-09) - TONGUE AND INPUT DRIVE

1

540639R2

TONGUE ASSY

1шт.

2

459654R1

PIN

STUD, dial hitch, machines w/steel upper roll with serial no. 2307 and below

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

3

460611R1

SPRING

dial lock

1шт.

4

660659R1

STRIP, dial hitch rod, machines with steel upper roll with serial no. 2307 and below

1шт.

21972R1

PIN, 5/16 x 1-5/16 C-Z std-hd

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

177923

COTTER PIN

1/8" x 3/4"

2шт.

5

618631R1

SPACER

1/4 x 11/16 std pipe, machines w/steel upper roll with serial no. 2307 and below

1шт.

6

540644R1

HITCH ASSY

1шт.

21695R1

BOLT,Hex, 5/8" - 11 x 5 3/4", Gr 5

SCREW, 5/8-11 x 5-3/4 znd hex-hd cap

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

2шт.

7

540647R1

SUPPORT, PTO LH

1шт.

8

540648R1

SUPPORT, PTO hose

1шт.

21695R1

BOLT,Hex, 5/8" - 11 x 5 3/4", Gr 5

SCREW, 5/8-11 x 5-3/4 znd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

124847

COLLAR

5/8-11 C-Z hex. jam

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

1шт.

215723

BOLT,Hex, 1/2" - 13 x 5 3/4", Gr 5

SCREW, 1/2-13 x 5-3/4 znd hex-hd cap

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

1шт.

9

540649R1

SHIELD ASSY, input

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

2шт.

10

515030R1

CLAMP

hyd hose

3шт.

11

463580R1

SPACER,1/2" Pipe x 4.109"

1/2 x 4.109 std pipe, replaces 542777R1

1шт.

12

ST669

BEARING ASSY,35mm ID

hanger ball

1шт.

13

482261R92

JACK

HOIST, light duty side cranking jack

1шт.

14

540652R1

SUPPORT, shield

1шт.

15

473091R91

FLANGE

W/LUB FITTING, brg

1шт.

19427R1

BOLT

3/8 x 7/8 znd sq-nk crg

1шт.

19431R1

BOLT

3/8 x 1-1/8 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

3шт.

16

473092R1

FLANGED BEARING

brg

1шт.

17

470597R91

BEARING, BALL,1.25" ID x 72 mm OD x 2.0156"

BEARING ASSY, input drive ball

1шт.

18

517645R11

COLLAR

W/SET SCREW, locking brg

1шт.

19

493354R1

SPACER

1шт.

20

472188R1

SPACER, rubber

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

1шт.

21

541488R1

GUARD, tongue tire

1шт.

22

488125R1

BAR, anchor

2шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5-1/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

4шт.

23

540651R91

SHAFT W/UNIVERSAL JOINT, input drive, Rockwell standard or chain belt, optional with 482262R91

1шт.

23

482262R91

SHAFT W/UNIVERSAL JOINT, input drive, Rockwell standard or Hayes Dana, optional with 540651R91

1шт.

24

460902R1

YOKE

Rockwell standard and chain belt, used with 540651R91

1шт.

24

460620R1

YOKE

replaces 543442R91, Rockwell standard, used with 482262R91

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 sq-hd cup pt set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

25

480486R91

CROSS

KIT, center cross, replaces 541194R91, used with 540651R91

1шт.

25

200464C91

PACKAGE

KIT, center cross, Rockwell standard, used with 482262R91

1шт.

25

667558R91

KIT

center cross, Hayes Dana, used with 482262R91

1шт.

26

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub, not used w/Hayes Dana center cross

1шт.

26

106454

FITTING, 1/4-28 NF str lub, used w/ Dana Hayes center cross

1шт.

27

606177R1

SNAP RING

RING, snap, used w/center cross, 480486R91

4шт.

27

576420R1

RING

snap, used w/center cross 567047R91

4шт.

27

RING, snap, order center cross, 667558R91

1шт.

28

546238R1

LEVER

dial pin, machine w/steel upper roll with serial no. 2308 and above and machines w/rubber upper roll

1шт.

29

23282R1

HEADED PIN,3/8" x 1 3/16"

PIN, 3/8 x 1-3/4 C-Z std-hd, machines w/steel upper roll with serial no. 2308 and above and machines w/rubber upper roll

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

30

471428R1

ROLLER

nylon, machines w/steel upper roll with serial no. 2308 and above and machines w/rubber upper roll

1шт.

31

546237R1

PIN

dial lock, machines w/steel upper roll with serial no. 2308 and above and machines w/rubber upper roll

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

32

457799R1

GUIDE, cable, machines w/steel upper roll with serial no. 2308 and above and machines w/rubber upper roll

1шт.

33

ROPE, 3/8 x 12 ft., purchase locally

1шт.
