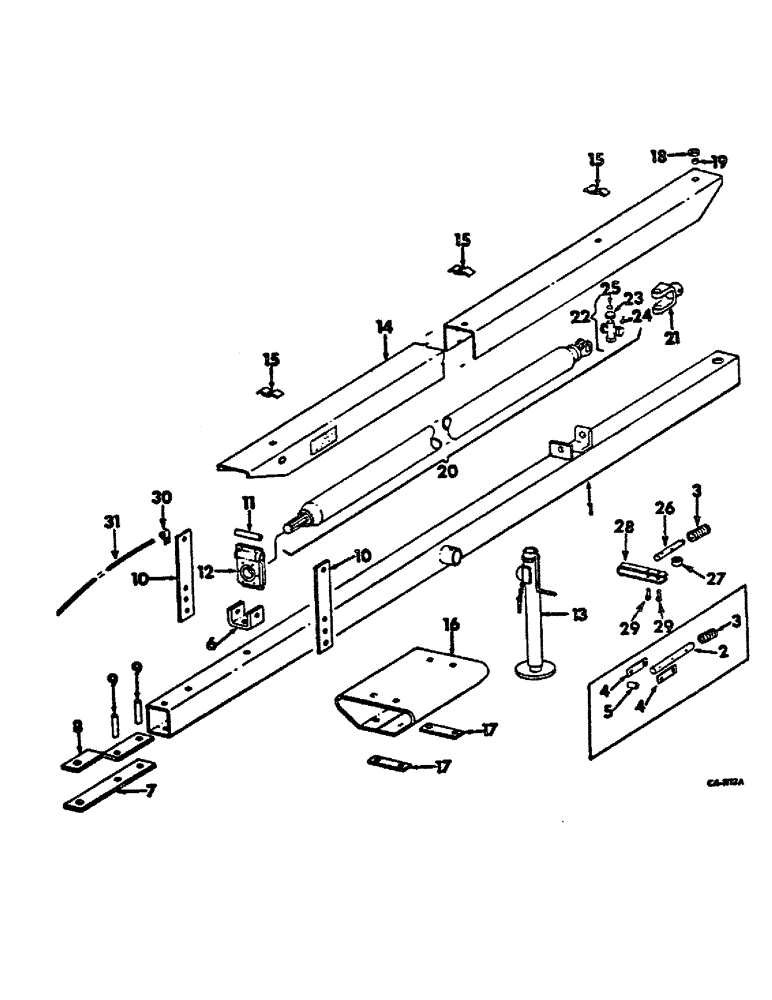

Запчасти Case IH 990 (S-07) - TONGUE AND INPUT DRIVE

1

542769R3

TONGUE ASSY

1шт.

2

459654R1

PIN

STUD, dial hitch, machines w/steel upper roll with serial no. 1125 and below

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

3

460611R1

SPRING

dial lock

1шт.

4

660659R1

STRIP, dial hitch rod, machines w/steel upper roll with serial no. 1125 and below

1шт.

21972R1

PIN, 5/16 x 1-5/16 C-Z std-hd

2шт.

619855R1

WASHER

11/32 x 3/4 xc 16 ga C-Z

4шт.

177923

COTTER PIN

1/8" x 3/4"

2шт.

5

618631R1

SPACER

1/4 x 11/16 std pipe, machines w/steel upper roll with serial no. 1125 and below

1шт.

6

542778R1

BRACKET, PTO support

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

SCREW, 5/8-11 x 5-1/2 znd hex-hd cap

1шт.

9413969

NUT,5/8"-11, GB

5/8-11 C-Z hex. top lock

1шт.

23276R1

WASHER

21/32 x 2 x 7 ga C-Z

1шт.

21759R1

WASHER

21/32 x 2 x 11 ga C-Z

1шт.

7

542780R2

STRAP, hitch

1шт.

8

542782R2

STRAP, hitch offset

1шт.

9

661095R1

SPACER

2шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

SCREW, 5/8-11 x 5-1/2 znd hex-hd cap

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

9413969

NUT,5/8"-11, GB

5/8-11 C-Z hex. top lock

2шт.

10

542779R1

STRAP, PTO support

2шт.

215723

BOLT,Hex, 1/2" - 13 x 5 3/4", Gr 5

SCREW, 1/2-13 x 5-3/4 znd hex-hd cap

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex. cap

2шт.

473197R1

FLANGE NUT

1/2-13 C-Z flange lock

1шт.

9413969

NUT,5/8"-11, GB

5/8-11 C-Z hex. top lock

2шт.

11

463580R1

SPACER,1/2" Pipe x 4.109"

pedestal brg, replaces 542777R1

1шт.

12

ST669

BEARING ASSY,35mm ID

hanger ball

1шт.

13

482261R92

JACK

HOIST, light duty side cranking jack

1шт.

998637R1

GEAR-SET

GEAR REPAIR KIT, jack

1шт.

14

64908C91

SHIELD W/PRODUCT GRAPHIC, 54553C1 intput drive

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

3шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

3шт.

15

515030R1

CLAMP

hyd hose

3шт.

16

541488R1

GUARD, tongue tire

1шт.

17

488125R1

BAR, anchor

2шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5-1/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

4шт.

18

472188R1

SPACER, rubber

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

1шт.

19

493354R1

SPACER

1шт.

20

542774R91

SHAFT

W/UNIVERSAL JOINT, input drive, chain belt or rockwell standard, optional with 542954R91

1шт.

20

542954R91

SHAFT

W/UNIVERSAL JOINT, input drive, Hayes Dana, optional with 542774R91

1шт.

21

460902R1

YOKE

Rockwell standard and chain belt, used with 542774R91

1шт.

21

460620R1

YOKE

Hayes Dana, used with 542954R91

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 sq-nk cup pt-set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

22

480486R91

CROSS

KIT, center cross, replaces 541194R91, used with 542774R91

1шт.

22

667558R91

KIT

center cross, Hayes Dana, used with 542954R91

1шт.

23

BEARING ASSY, not serviced separately, order center cross kit

4шт.

24

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

1шт.

25

606177R1

SNAP RING

RING, snap, used w/center cross, 480486R91

1шт.

25

RING, snap, Hayes Dana, order center cross kit, 667558R91

4шт.

26

546237R1

PIN

dial lock, machines w/steel upper roll with serial no. 1126 and machines w/rubber upper roll

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

27

471428R1

ROLLER

nylon, machines w/steel upper roll with serial no. 1126 and above and machines w/rubber upper roll

1шт.

28

546238R1

LEVER

dial pin, machines w/steel upper roll with serial no. 1126 and above and machines w/rubber upper roll

1шт.

29

21809R1

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 C-Z std-hd, replaces 23282R1, machines w/steel upper roll with serial no. 1126 and above and machines w/rubber upper roll

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

30

457799R1

GUIDE, cable, machines w/steel upper roll with serial no. 1126 and above and machines w/rubber upper roll

1шт.

31

ROPE, 3/8 x 12 ft., purchase locally

1шт.
