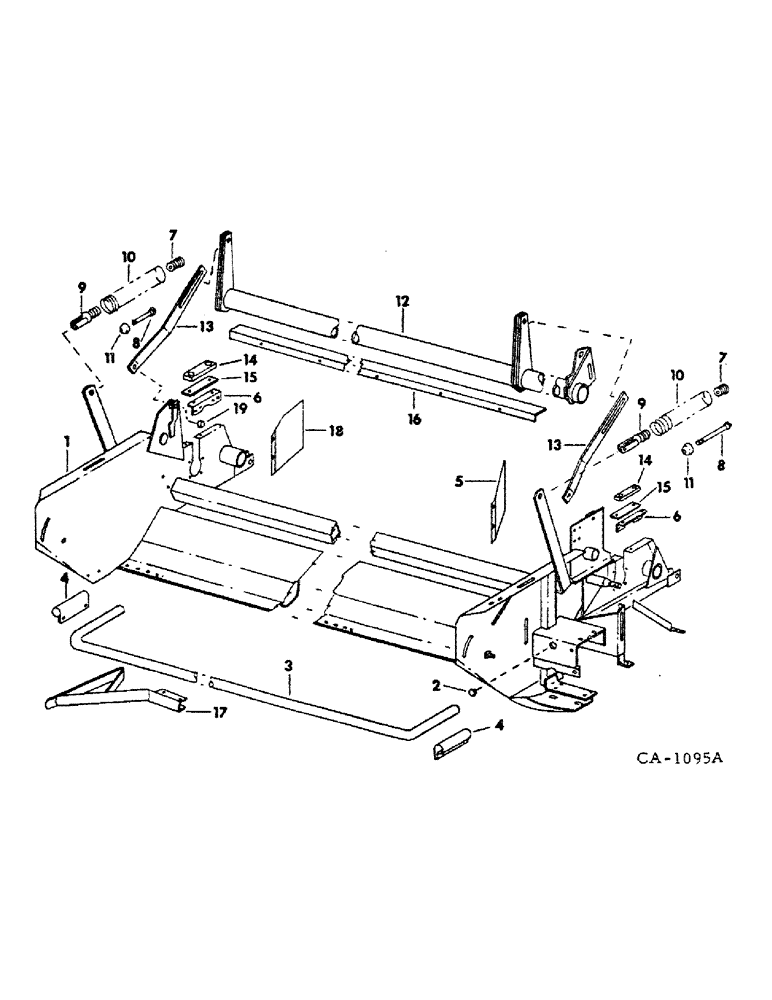

Запчасти Case IH 990 (S-05) - HEADER FRAME

1

544660R1

FRAME ASSY, header, 9 ft., replaces 540710R1

1шт.

1

542756R1

FRAME ASSY, header, 7 ft., on order for 542756R1 furnish 544661R1 and idler reel support 544279R1

1шт.

1

544661R1

FRAME ASSY, header, 7 ft.

1шт.

546829R1

SCREW, 3/8-16 x 7/8 znd lock

4шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

6шт.

540719R1

PIN

5/8 x 1-3/8 C-Z std-hd ht

2шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .074 C-Z

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

540721R1

WASHER, 1-29/32 x 2-1/2 x 22 ga C-Z

2шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 16 ga C-Z, 2 used w/9 ft., 2 used w/ 7 ft.

1шт.

22928R1

HEADED PIN,3/4" x 2"

PIN, 3/4 x C-Z std-hd ht

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2-13 x 1-1/4 znd flange lock

7шт.

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

1/2-13 x 1-1/2 znd flange lock

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z, or as required

9шт.

22265R1

WASHER

17/32 x 1-1/4 x 22 ga C-Z, or as required

11шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 C-Z lock

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

69442D

NUT

3/4-16 C-Z slt hex. jam

1шт.

2

464197R1

PLUG

button

1шт.

3

540714R1

BAR, pushover, 9 ft.

1шт.

3

542762R1

BAR, pushover, 7 ft.

1шт.

4

541511R1

BRACKET, pushover bar clamp

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

3шт.

22245R1

WASHER, 17/32 x 1 x 7 ga C-Z

1шт.

473197R1

FLANGE NUT

1/2-13 C-Z flange lock

4шт.

5

540868R1

PLATE

baffle LH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

6

540870R1

ANGLE, side sheet reinforcing

2шт.

7

540876R1

PLUG

float spring rear, 9 ft.

2шт.

7

542768R2

PLUG

float spring rear, 7 ft.

2шт.

8

540872R1

BOLT,5/8" - 11 x 14", Cl B-2

SCREW, 5/8-11 x 14 znd hex-hd cap

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

2шт.

9

540877R1

PLUG

float spring, for 9 ft. only

2шт.

9

549752R1

PLUG

Float Spring, for 7 Ft. Only

2шт.

540874R1

HEADED PIN,15.88mm OD x 53.57mm L

PIN, 5/8 x 1-7/8 C-Z std-hd ht

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

10

540878R1

VALVE SPRING

SPRING, float, 9 ft.

2шт.

10

116470C1

SPRING

float, 7 ft., replaces 542758R1 by also ordering package 549751R91

2шт.

11

540879R1

PIVOT

float spring adj screw

2шт.

12

540880R1

LIFT ASSY, header, 9 ft.

1шт.

12

544659R1

LIFT ASSY, header, 7 ft., replaces 542757R1

1шт.

13

540887R1

STRAP, header lift

2шт.

540719R1

PIN

5/8 x 1-3/8 C-Z std-hd ht, 2 used w/9 ft., 1 used w/7 ft. header lift 544659R1 and 2 used w/7 ft. header lift 542757R1

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z, 2 used w/9 ft., 1 used w/ 7 ft. header lift 544659R1 and 2 used w/7 ft. header lift 542757R1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), , 2 used w/9 ft., 1 used w/7 ft. header lift, 544659R1 and 2 used w/7 ft. header lift 542757R1 3/16" x 1"

1шт.

399109R1

AXLE PIN

BOLT, shoulder, 1 used w/7 ft. header lift, 544659R1

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z, 1 used w/7 ft. header lift 544659R1

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock, 1 used w/7 ft. header lift 544659R1

1шт.

544277R1

SPACER, shoulder bolt, 1 used w/7 ft. header list 544659R1

1шт.

14

540888R1

BLOCK

roll gap

2шт.

18465R1

BOLT,Sq Hd, 3/8"-16 x 1 1/4", G2

3/8-16 x 1-1/4 znd sq-hd mach

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

4шт.

15

540889R1

SHIM

.060

12шт.

15

541915R1

SHIM

.030

2шт.

16

541509R1

SHEET, platform ext., 9 ft.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

5шт.

16

542763R1

SHEET, platform ext, 7 ft.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

4шт.

17

541587R1

DIVIDER ASSY, tall crop

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cdp hex lock

2шт.

18

540869R1

PLATE

baffle RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

19

544277R1

SPACER, shoulder bolt, 1 used w/7 ft. header lift, 544659R1

1шт.

399109R1

AXLE PIN

BOLT, shoulder

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

548301R1

WASHER, 17/32 x 7/8 x 16 ga

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

1шт.

549751R91

STRIPPER PACKAGE

PACKAGE, float spring plug, consists of (1) plug 549752R1, (1) pin 540874R1, (1) washer 608701R1, (1) pin 18481R1

1шт.
