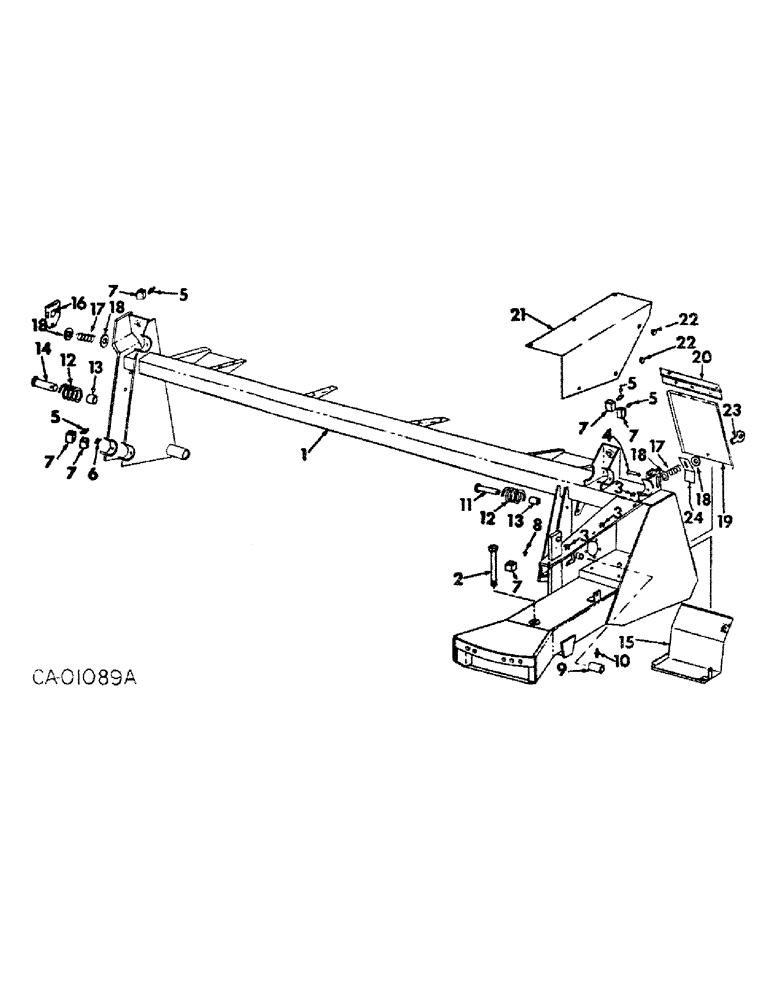

Запчасти Case IH 990 (S-03) - CARRIER FRAME
№
Артикул
Название
Примечание
Количество
1
540892R1
FRAME W/TWO BUSHING 487307R1, carrier, 9 ft., note A
1шт.
1
55573C2
FRAME ASSY, carrier 9 ft., note B, replaces 549253R1 by also ordering deflector, 55570C1, bracket, 55571C1, two bolts, 18508R1 & two nut, 482256R1
1шт.
1
55574C2
FRAME ASSY, carrier 7 ft., replaces 542740R1 by also ordering deflector, 55570C1, bracket 55571C1, two bolts, 18508R1 & two bolts, 18508R1 & two nuts, 482256R1
1шт.
180137
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
SCREW, 3/8-16 x 2-3/4 znd hex-hd cap
1шт.
385525R1
LOCK NUT,3/8"-16, GB
NUT, 3/8-16 cdp hex lock
1шт.
2
541060R1
BOLT (SPREADER)
BOLT, hitch pivot 1 x 9-1/4 unfinished
1шт.
586043R1
WASHER
1-1/32 x 3 x 3 ga C-Z
1шт.
9414002
NUT,1"-8, GC
1-8 C-Z lock
1шт.
3
806122C1
NUT
GROMMET, will work for 540590R1
3шт.
4
22095R1
PIN
3/4 x 3 C-Z ht std-hd
1шт.
373025R91
PIN ASSY.
PIN ASSY, klik
1шт.
5
19628R91
NIPPLE, LUBE
FITTING, 1/8-27 pipe special thread forming a 45 deg angle, in strap
4шт.
6
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
FITTING, 1/8-27 ptf special short 90 deg angle lub, in strap
1шт.
7
543320R1
SPACER, lift tube strap
6шт.
189316
BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5
SCREW, 1/2-13 x 4-1/4 znd hex-hd cap
6шт.
9413967
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 cdp prevailing torque hex. lock
6шт.
8
219-86
LUBE NIPPLE,1/8" NPTF
FITTING, 1/8 pipe taper drive thread, in strap
1шт.
9
487307R1
BUSHING
1 in. ID
2шт.
9
527132R1
BUSHING,19.06mm ID x 22.21mm OD x 25.4mm L
3/4 in. ID
2шт.
9
60089C1
BUSHING, .753 in. ID bronze, for use w/frames 540892R1, 549253R1 and 542740R1 when w/idler pulley 60271C91
1шт.
10
19629R91
FITTING, 1/8-27 65 deg angle special drive thd self-tapping lub
1шт.
11
540932R1
HEADED PIN,3/4" x 7 7/8"
PIN, 3/4 x 7-7/8 C-Z std-hd ht
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
12
328253R1
SPRING
pivot
2шт.
13
540933R1
SPACER, 1 x 4-1/4 std pipe
2шт.
21213R1
WASHER
1-1/32 x 2 x 11 ga C-Z
4шт.
21162R1
WASHER
1-1/32 x 2 x 7 ga C-Z
4шт.
14
22932R1
PIN, 3/4 x 5-5/8 C-Z std-hd ht
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
21713R1
WASHER,25/32" x 1 3/4" x .120"
25/32 x 1-3/4 x 11 C-Z
1шт.
23245R1
WASHER
25/32 x 1-3/4 x 7 ga C-Z
2шт.
180137
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
SCREW, 3/8-16 2-3/4 znd hex-hd cap
1шт.
385525R1
LOCK NUT,3/8"-16, GB
NUT, 3/8-16 cdp hex lock
1шт.
15
540948R1
SHIELD ASSY, drive
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z flange lock
6шт.
21737R1
BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2
5/16 x 5/8 znd sq-nk crg
2шт.
16
540952R1
COVER, tube end
1шт.
18675R1
BOLT,Short NK, 5/16"-18 x 1 3/4", G2
5/16-18 x 1-3/4 znd sq-nk crg
1шт.
472146R1
LOCK NUT,5/16"-18, GB
NUT, 5/16-18 C-Z lock
1шт.
17
542571R1
SPRING
2шт.
18
542572R1
WASHER
4шт.
19
549950R1
COVER, tool box, order door assy, 60094C1
1шт.
19
60094C1
DOOR W/HINGE ASSY, tool box, will work for 549950R1
1шт.
20
540954R1
ROD, tool box hinge, order door assy, 60094C1
1шт.
121223
COTTER PIN,1/16" x 3/4"
PIN, SPLIT (COTTER), 1/16" x 3/4"
1шт.
21
540947R1
SHIELD, cover, 9 ft. machines w/steel upper roll and serial no. 6081 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 & below
1шт.
21
56284C2
SHIELD W/PRODUCT GRAPHICS, cover, will work for 542743R1, 9 ft. machines w/steel upper roll and serial no. 6082 & above and 9 ft. machines w/rubber upper roll and serial no. 5233 & above and 7 7 ft. machines
1шт.
145208
SCREW, 1/4-14 x 3/4 C-Z slt pan-hd mach
3шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8-16 x 3/4 znd sq-nk crg
1шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
22
369057R1
BUMPER
2шт.
23
542570R1
HANDLE, tool door
1шт.
542569R1
PIN, cross
1шт.
24
542573R1
LATCH
tool door
1шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga C-Z
2шт.
Выбрано товаров: 59
