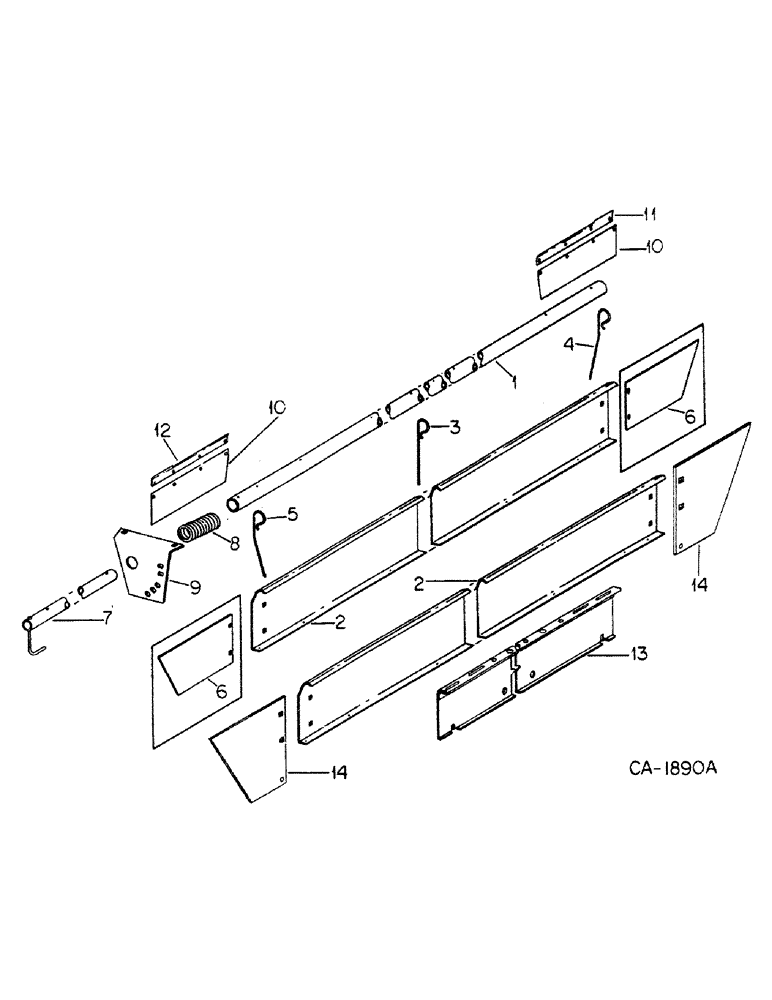

Запчасти Case IH 990 (S-32) - SWATH AERATOR

1

545172R1

TUBE, tine holder, for 9 ft.

1шт.

1

545173R1

TUBE, tine holder, for 7 ft.

1шт.

21290R1

WASHER

1-11/32 x 2 x 16 ga C-Z

1шт.

2

545174R1

DEFLECTOR, 9 ft. machines w/steel upper roll and serial no. 17989 & below, 9 ft. machines w/rubber upper roller w/serial no. 11132 & below

1шт.

2

61174C1

DEFLECTOR, 9 ft. machines w/steel upper roller w/serial no. 17990 & above, 9 ft. machines w/rubber upper roller w/serial no. 11133 & above

1шт.

2

545175R1

DEFLECTOR, 7 ft. machines w/steel upper rollers w/ser. no. 13797 & below, 7 ft. machines w/rubber upper rollers w/ser. no. 11092 & below

1шт.

2

61172C1

DEFLECTOR, 7 ft. machines w/steel upper rollers w/ser. no. 13798 & above, 7 ft. machines w/rubber upper rollers w/ser. no. 11093 & above

1шт.

3

545176R1

ROD

TINE, straight, 5 used for 9 ft., 3 used for 7 ft.

1шт.

4

545177R1

ROD

TINE, bent RH

2шт.

5

545178R1

ROD

TINE, bent LH

2шт.

6

545179R1

1шт.

DEFLECTOR, extension, 7 ft. machines w/steel upper roll and ser. no. 13797 & below, 7 ft. machines w/rubber upper roll and ser. no. 11092 & below, 9 ft. machines w/steel upper roll and ser. no. 17979 & below, 9 ft. machines w/rubber upper roll and ser. no. 11132 & below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

4шт.

7

545180R1

HANDLE ASSY, tine adjusting

1шт.

22769R1

WASHER

1/3/32 x 1-1/2 x 16 ga C-Z

5шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

22967R1

PIN,3/16" x 1 1/2", Slotted

1шт.

8

328253R1

SPRING

11 coils

1шт.

9

545183R1

BRACKET, tine position

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

10

545404R1

DEFLECTOR

rubber

2шт.

11

545438R1

RETAINER, RH, 9 ft. machines w/steel upper roll and serial no. 17989 & below, 9 ft. machines w/rubber upper roll and serial no. 11132 & below

1шт.

11

60096C1

RETAINER, RH, 9 ft. machines w/steel upper roll and serial no. 17990 & above, 9 ft. machines w/rubber upper roll and serial no. 11133 & above

1шт.

145208

SCREW, 1/4-14 x 3/4 znd slt pan-hd tap

3шт.

806122C1

NUT

GROMMET

3шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 znd slt pan-hd mach

1шт.

480891R1

NUT

1/4-20 cdp flange lock

1шт.

12

545439R1

RETAINER, LH, 9 ft. machines w/steel upper roll and serial no. 17989 & below, 9 ft. machines w/rubber upper roll and serial no. 11132 & below

1шт.

12

60095C1

RETAINER, LH, 9 ft. machines w/steel upper roll and serial no. 17990 & above, 9 ft. machines w/rubber upper roll and serial no. 11133 & above

1шт.

145208

SCREW, 1/4-14 x 3/4 znd slt pan-hd tap

3шт.

806122C1

NUT

GROMMET

3шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 znd slt pan-hd mach

1шт.

480891R1

NUT

1/4-20 cdp flange lock

1шт.

13

61175C1

EXTENSION, swath deflector, 9 ft. machines w/steel upper roll and ser. no. 17990 & above, 9 ft. machines w/rubber upper roll and ser. no. 11133 & above

1шт.

13

61173C1

EXTENSION, swath deflector, 7 ft. machines w/steel upper roll and serial no. 13798 & above, 7 ft. machines w/rubber upper roll and ser. no. 11093 & above

1шт.

14

61171C1

PLATE, deflector extension

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 whiz lock

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

6шт.
