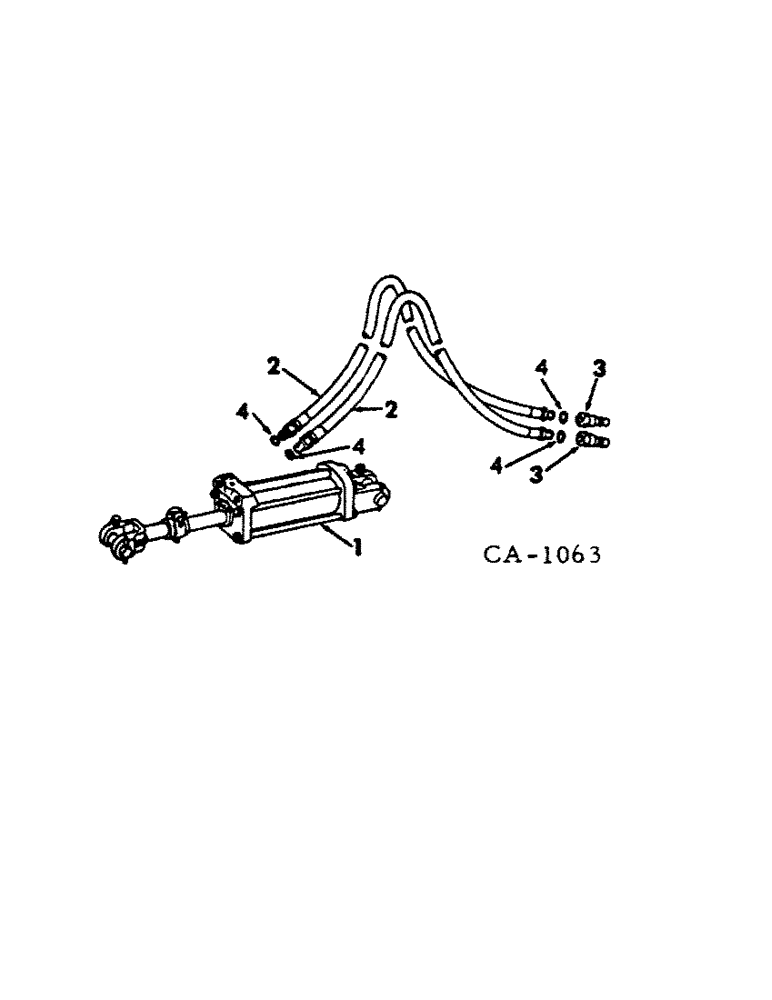

Запчасти Case IH 990 (S-31) - HYDRAULIC CYLINDER AND CONNECTIONS

1

371291R95

CYLINDER

ASSY, 2-1/2 x 8 in. double acting hydraulic, order cylinder assy, 145353C91, two adapters 1252129C1 and two o-rings 570828R1, for components see list of parts under details of hydraulic cylinders in section P

1шт.

1

371292R94

CYLINDER

ASSY, 3-1/2 x 8 in. double acting hydraulic, order cylinder assy, 1263474C91, two adapters 1252129C1 and two o-rings 570828R1, for components see list of parts under details of hydraulic cylinders in section P

1шт.

2

372570R91

HOSE ASSY.

HOSE, hydraulic 152 in.

2шт.

3

395149R1

QUICK MALE COUPLING

COUPLING, 7/8-14 str self-sealing male

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.
