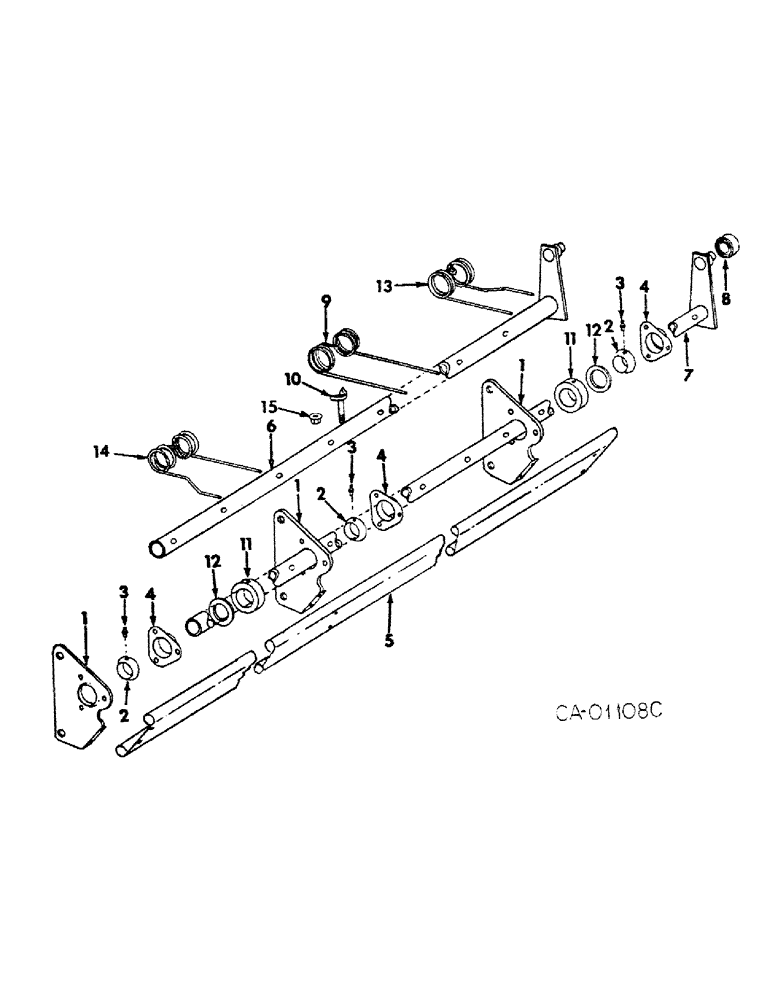

Запчасти Case IH 990 (S-30) - TINE BAR, QUANTITIES LISTED COVER ONE BAR

1

540557R1

SUPPORT

brg & bat

3шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

9шт.

483303R1

LOCK NUT

5/16-18 C-Z flange lock

9шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

6шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

6шт.

2

541527R1

BUSHING,34.04mm ID x 47.02mm OD

tine bar

3шт.

3

25391R1

FITTING

1/4-28 str lub

3шт.

4

540579R1

FLANGE

bearing mounting

3шт.

5

540558R1

BAT

reel, for 9 ft.

1шт.

5

542814R1

BAT

reel, for 7 ft.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

6шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

6шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

6шт.

6

540559R1

BAR

ASSY, tine no. 1, for 9 ft.

1шт.

6

542810R1

BAR ASSY, tine no. 1, for 7 ft., first hole 7 in. from cam arm

1шт.

7

540563R1

BAR

ASSY, tine no. 2, for 9 ft.

1шт.

7

542811R1

BAR ASSY, tine no. 2, for 7 ft., first hole 5 in. from cam arm

1шт.

8

540578R91

BEARING

ASSY, cam follower ball

1шт.

9

540565R1

SPRING

TOOTH REEL, 10 for 9 ft. & 7 for 7 ft.

1шт.

10

126591C1

BOLT,5/16" - 18 x 48.20mm

BOLT, reel tine, 12 for 9 ft. & 9 for 7 ft.

1шт.

11

543127R92

COLLAR

W/SET SCREW, tine bar

2шт.

542503R1

SCREW, 5/16-18 x 3/8 hex-soc-hd cup-pt set, used w/collar 543127R91

2шт.

549255R1

SCREW, 5/16-18 x 3/4 hex-soc-hd cup-pt set, used w/collar 543127R92

2шт.

12

540566R1

WASHER

reel

4шт.

13

60340C1

TOOTH

LH offset

1шт.

14

60341C1

TOOTH

RH offset

1шт.

15

148139C1

LOCK NUT,Flg, 5/16"-18

NUT, 5/16-18 C-Z flange lock, 12 for 9 ft. & 9 for 7 ft.

1шт.
