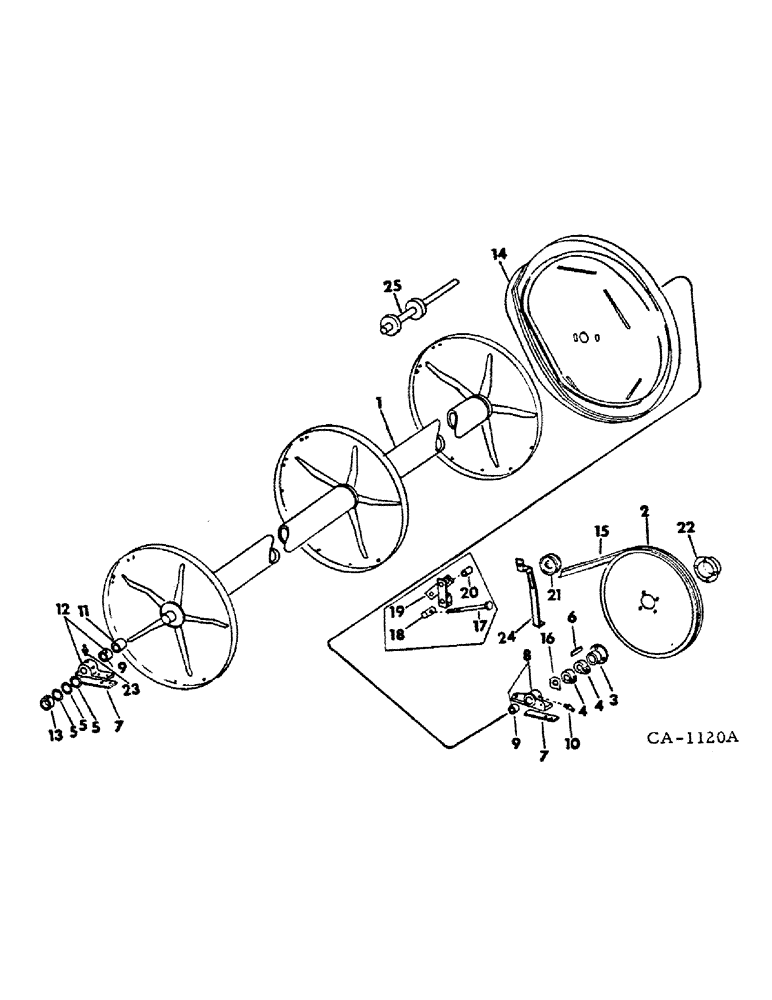

Запчасти Case IH 990 (S-28) - REEL DRIVE

1

540551R1

CORE ASSY, reel, 9 ft.

1шт.

1

542808R1

CORE ASSY, reel, 7 ft.

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

24шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

24шт.

2

542525R2

PULLEY

ASSY, reel drive

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

4шт.

3

593691R3

HUB

reel

1шт.

4

127221R1

CLAMP

shaft retaining

2шт.

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

SCREW, 7/16-14 x 1-7/8 znd hex-hd cap

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z hex. lock

2шт.

5

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z, or as required

3шт.

6

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 sq tapered

1шт.

7

493411R1

BAR

SHIM, reel spacer

6шт.

8

540571R11

SUPPORT W/BUSHING, reel LH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

2шт.

21375R1

WASHER

17/32 x 1-1/4 x 7 ga C-Z

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

2шт.

9

493410R1

BUSHING,31.8mm ID x 34.95mm OD x 63.5mm L

reel support

2шт.

10

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 NF 2 str lub LH

1шт.

10

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 special taper drive thd self-tap str lub RH

1шт.

11

543114R1

PLASTIC-RUBBER TUBE

TUBE, anti-wrap

1шт.

12

493409R11

SUPPORT

W/BUSHING REEL RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

2шт.

13

541314R1

RING RACE

COLLAR, shaft retaining

1шт.

22981R1

ROLL PIN,1/4" x 2 1/4", Slotted

Pin, 1/4" x 2 1/4", Slotted

1шт.

14

540567R1

CAM ASSY, reel

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock, 4 for 9 ft. & 2 for 7 ft.

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

2шт.

15

672178R1

V-BELT,84.50" L

Reel drive pulley 84.50" L

1шт.

16

543974R1

WASHER, tabbed reel thrust

1шт.

17

540598R1

BOLT ASSY, spring adj

1шт.

7 ft. machines w/steel upper roll and serial no. 1756 & below, 7 ft. machines w/rubber upper roll and serial no. 5070 & below, 9 ft. machines w/steel upper roll and serial no. 6081 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 & below

1шт.

18

541465R1

TRUNNION, idler

1шт.

7 ft. machines w/steel upper roll and serial no. 1756 & below, 7 ft. machines w/rubber upper roll and serial no. 5070 & below, 9 ft. machines w/steel upper roll and serial no. 6081 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 & below

1шт.

19

540594R1

ARM ASSY, idler, used w/frame assy, 542756R1 and 540710R1

1шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

3шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

231-1448

NUT,1/2"-13, GB

1/2-13 C-Z nylon insert

1шт.

20

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z lock

1шт.

21

559292R93

PULLEY

ASSY, reel drive belt, replaces 594816R92

1шт.

22

549152R1

COVER

reel shaft

1шт.

172300

SCREW,Hex, #8 - 32 x 1/2"

8-32 x 1/2 C-Z hex-hd tap

4шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

4шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 special taper drive thd self-tap str lub

1шт.

24

544279R1

SUPPORT REEL IDLER

1шт.

7 ft. machines w/steel upper roll and serial no. 1756 & below, 7 ft. machines w/rubber upper roll and serial no. 5070 & below, 9 ft. machines w/steel upper roll and serial no. 6081 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 & below

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

540592R1

NUT

3/8-16 C-Z large flange lock

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2-13 x 2-1/2 znd sq-nk crg

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

5шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z flange lock

1шт.

25

544928R2

SHAFT

REPAIR SHAFT ASSY, LH reel, service only, consists of (1) shaft (NSS), (2) retainer (NSS), (1) installing instructions (NSS)

1шт.
