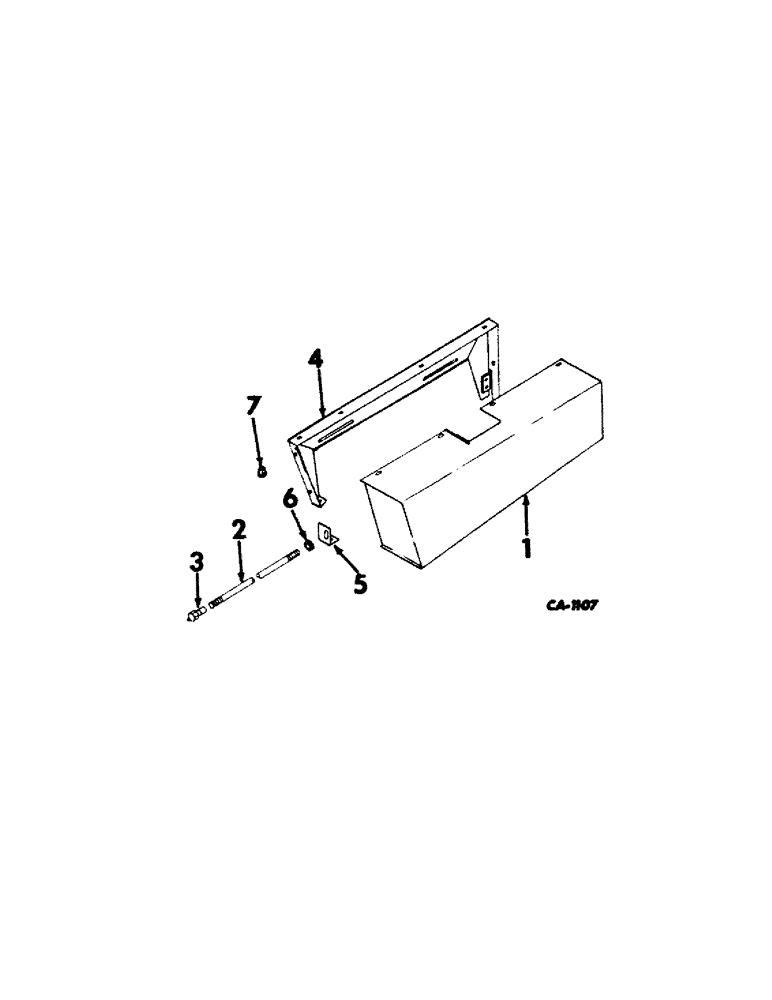

Запчасти Case IH 990 (S-27) - REEL DRIVE SHIELD

1

540583R1

SHIELD ASSY, reel

1шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4-14 x 1/2 C-Z pan-hd slt

7шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

7шт.

2

19727R1

NIPPLE, 1/8 x 12-1/2 pipe

1шт.

3

126122

FITTING

1/8-27 female thd str lub

1шт.

4

540587R1

BRACE ASSY, reel

1шт.

5

540668R1

SUPPORT

1шт.

6

541304R1

GROMMET, lub tube

1шт.

7

806122C1

NUT

GROMMET

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

3шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

540592R1

NUT

3/8-16 C-Z flange lock

3шт.
