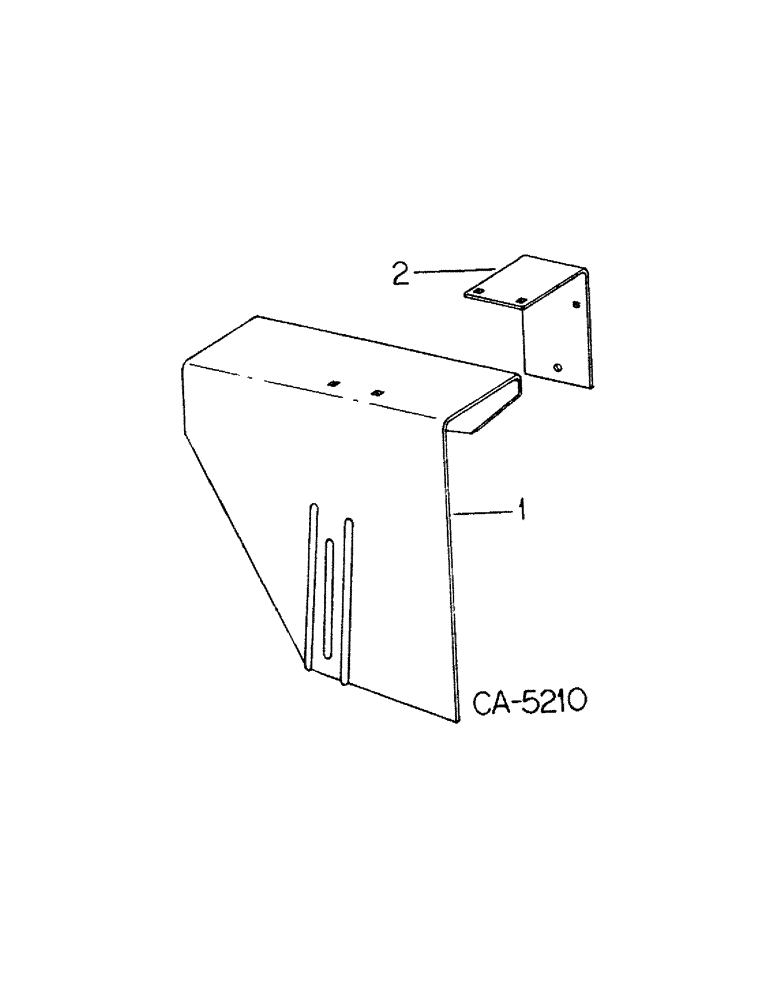

Запчасти Case IH 990 (S-27[A]) - REEL DRIVE SHIELD

1

60893C1

SHIELD

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 znd

4шт.

145208

SCREW, 1/4-14 x 3/4 C-Z pan-hd tap

4шт.

26877R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 znd sq-nk crg

1шт.

21883R1

WASHER

.531 x 1.75 x .090 znd

2шт.

2

60894C1

SUPPORT, shield

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

540592R1

NUT

3/8-16 C-Z large flange lock

1шт.

806122C1

NUT

GROMMET

4шт.
