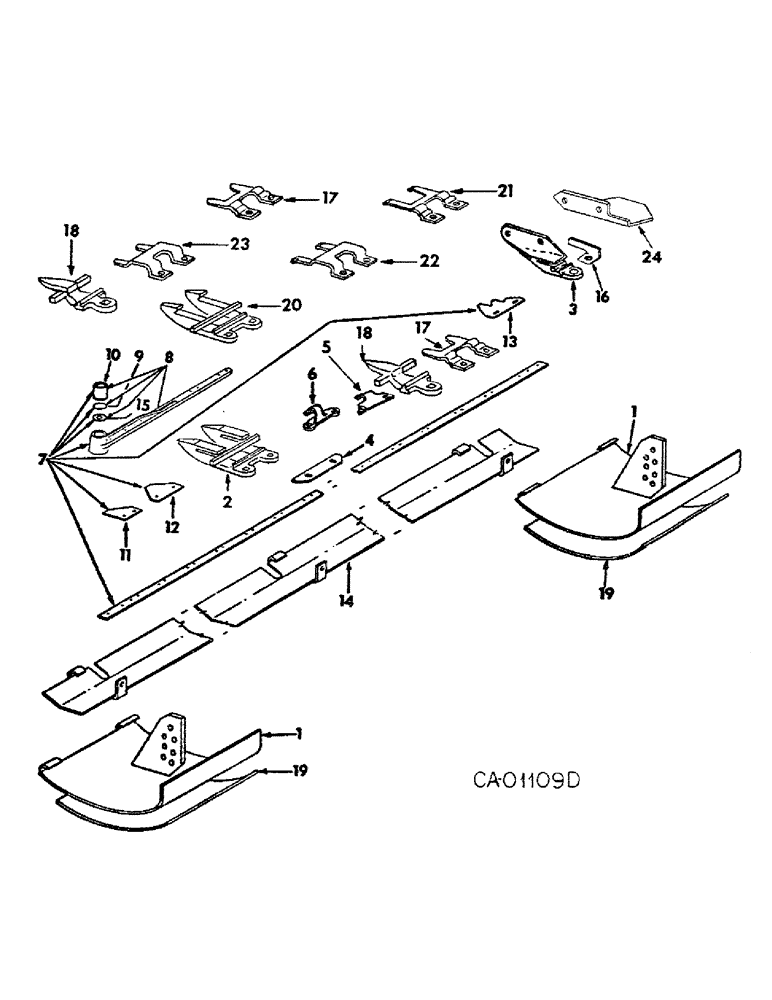

Запчасти Case IH 990 (S-25) - GUARDS & KNIFE

1

540599R2

SHOE (ASSY)

SHOE ASSY

2шт.

2

483500R3

GUARD

hay, 17 for 9 ft. & 13 for 7 ft.

1шт.

REF: #2 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

M806

PLOW BOLT

BOLT, 7/16 x 1-9/16 no. 3 plow

1шт.

Q5199X

BOLT W/NUT, 7/16 x 1-1/4 no. 3 plow

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex., 18 for 9 ft. & 14 for 7 ft.

1шт.

3

540603R2

FINGER

GUARD, divider

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, 7/16 x 1-21/32 no. 3 plow

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

4

MC468

PLATE ASSY.

PLATE, wearing, 9 for 9 ft. & 7 for 7 ft., 18 for 9 ft. equipped w/stub and strut guard, 14 for 7 ft. equipped w/stub and strut guard

1шт.

5

544274R1

CLIP

HOLDER, low arch knife, replaces MA812, 7 for 9 ft. & 5 for 7 ft.

1шт.

6

611759R1

KNIFE CLIP

HOLDER, high arch knife

1шт.

7

540605R91

KNIFE

ASSY, 9 ft. hv underserrated section

1шт.

7

540604R91

KNIFE

ASSY, 9 ft. hv smooth section

1шт.

7

542816R91

KNIFE ASSY

7 ft. hv underserrated section

1шт.

7

542815R91

KNIFE ASSY

7 ft. hv smooth section

1шт.

MA133M

RIVET,23.81mm OD x 139.7mm L

5-1/2 x 15/16 ov-hd, one pound package

10шт.

8

540607R11

HEAD

ASSY

1шт.

9

458972R1

PLUG

knive head

1шт.

10

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife head

1шт.

11

493198R1

KNIFE SECTION

SECTION, half hv smooth LH

1шт.

12

826722C1

KNIFE SECTION

SECTION, hv underserrated knife, replaces M22831, 27 used 7 ft., 35 used 9 ft.

1шт.

12

826724C1

KNIFE SECTION

SECTION, hv smooth knife, 27 used 7 ft., 35 used 9 ft., replaces M3331/2

1шт.

991059R91

RIVET

6 x 5/8 pln o/hd, two pound package, 47 used 7 ft., 63 used 9 ft.

1шт.

13

467456R11

KNIFE SECTION

SECTION W/RIVET, hv underserrated crg triplet end

1шт.

13

467455R11

VALVE

SECTION W/RIVETS, hv smooth crp triplet end

1шт.

MB133

RIVET

5-1/2 x 5/8 crp ov-hd, one pound package

2шт.

14

541506R2

SHOE

ASSY, stone, 9 ft.

1шт.

14

542738R2

SHOE

ASSY, stone, 7 ft.

1шт.

180172

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 znd hex-hd cap

3шт.

178591

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, 17/32 x 1-1/4 C-Z int-ext tooth lock

3шт.

15

544553R1

SEALING WASHER

knife head seal

1шт.

16

548575R1

CLIP

triplet section

1шт.

188755R1

WASHER

15/32 x 1-1/2 x 11 ga C-Z

2шт.

17

101831C2

CLIP

stub guard hold down, low arch, 12 used for 7 ft. machines w/stub guards, 16 used for 9 ft. machines w/stub guards

1шт.

18

472717R2

GUARD

stub, 28 used for 7 ft. machines w/stub guards, 36 used for 9 ft. machines w/stub guards

1шт.

19

542718R91

PACKAGE

service parts, repain wear shoe, consists of (2) shoe 542708R1 (NSS), (1) instructions 1083471R1 (NSS)

1шт.

20

58600C1

GUARD ASSY.

GUARD, strut, for rocky terrain, 13 used 7 ft., 17 used 9 ft.

1шт.

M806

PLOW BOLT

BOLT, 7/16 x 1-9/16 no. 3 plow, 13 used 7 ft., 17 used 9 ft.

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex, 1 per bolt

1шт.

21

58601C1

CLIP

low arch strut, for rocky terrain, 11 used 7 ft., 15 used 9 ft.

1шт.

22

58602C1

CLIP

high arch strut, for rocky terrain

2шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 znd hex-hd cap, for left hole of left guard

1шт.

M22999

WASHER

tapered

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

23

101832C2

CLIP

stub guard hold down, high arch

2шт.

180051

SCREW, 7/16-14 x 1-3/4 znd hex-hd cap, for left hole of left guard

1шт.

M22999

WASHER

tapered

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

24

126650C1

SHIELD

knife

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1.0

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.
