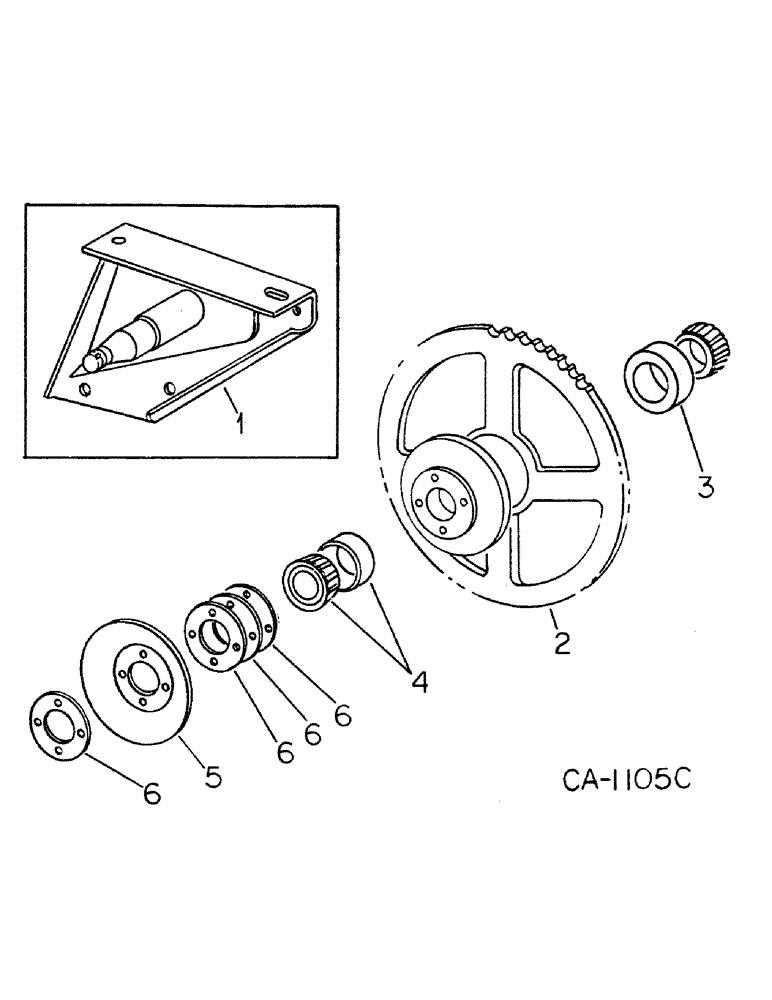

Запчасти Case IH 990 (S-24) - REDUCTION DRIVE SHAFT

1

540573R1

SHAFT ASSY, used w/frame assy, 542756R1 and 540710R1

1шт.

7 ft. machines w/steel upper roll and serial no. 1756 & below, 7 ft. machines w/rubber upper roll and serial no. 5070 & below, 9 ft. machines w/steel upper roll and serial no. 6081 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 & below

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

69442D

NUT

3/4-16 C-Z slt hex. jam

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

2

540577R1

DRIVE SPROCKET

HOUSING, reduction drive

1шт.

3

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSY W/SEAL, drive reduction housing roller

1шт.

4

540549R91

BEARING ASSY,17.46mm ID x 39.88mm OD x 13.84mm W

ASSY W/SEAL, drive reduction housing roller

1шт.

5

540580R1

SHEAVE

half

1шт.

6

540593R1

SPACER

4шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-5/8 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
