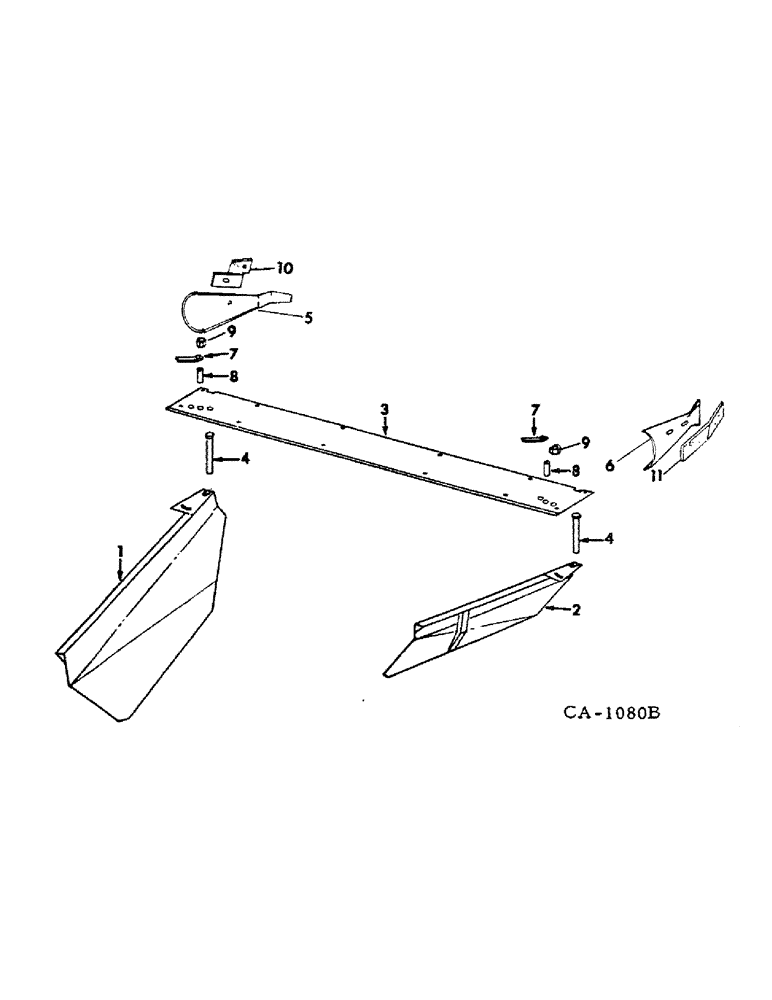

Запчасти Case IH 990 (S-23) - DEFLECTORS & WINDROWERS

1

55497C2

SHEET ASSY, Windrower LH, 9 ft., will work for 540655R1

1шт.

1

542803R3

SHEET ASSY, Windrower LH, 7 ft.

1шт.

12161R1

BOLT, 1/2 x 4 phs sq-nk step

1шт.

2

555498C2

SHEET ASSY, Windrower RH, 9 ft., will work for 540656R1

1шт.

2

452804R3

SHEET ASSY, Windrower RH, 7 ft.

1шт.

12161R1

BOLT, 1/2 x 4 phs sq-nk step

1шт.

3

540664R2

SHEET, rear deflector, 9 ft.

1шт.

3

542807R2

SHEET, rear deflector, 7 ft.

1шт.

22475R1

BOLT, 3/8 x 5/8 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock, 11 for 9 ft. & 9 for 7 ft.

1шт.

4

540665R1

AXLE PIN

PIN, hinge

2шт.

21757R1

WASHER

25/32 x 1-1/4 x 22 ga C-Z

12шт.

276326

KNIFE HEAD

PIN, 1/4 x 1-1/4 C-Z cot.

2шт.

5

59732C1

DEFLECTOR

rear roll LH, replaces 540666R1 when used w/bracket 59733C1

1шт.

20816R1

SCREW, 3/8 x 1/2 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

1шт.

6

540667R1

DEFLECTOR

rear roll RH

1шт.

546829R1

SCREW, 3/8-16 x 7/8 znp lock

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

7шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 hex-hd flange lock, machine w/upper rolls and serial nos. as follows, 7 ft. rubber 5126 and below, 7 ft. steel 2400 and below, 9 ft. rubber 5366 and below, 9 ft. steel 7576 and below

2шт.

6

55570C1

DEFLECTOR

rear roll RH, machine w/upper rolls and serial nos. as follows, 7 ft. rubber 5127 and above, 7 ft. steel 2401 and above, 9 ft. rubber 5367 and above, 9 ft. steel 7577 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

SCREW, 3/8 x 3/4 znd sq-nk crg

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 znd sq-nk crg

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 hex-hd flange lock

2шт.

7

HANDLE, 9 ft. machines, on orders for 540671R1 furnish 9413967

2шт.

8

22799R1

SPACER, 1/2 x 2-1/16 extra-hv pipe

2шт.

9

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z top lock

2шт.

10

59733C1

BRACKET

deflector LH

1шт.

11

55571C1

BRACKET

deflector RH

1шт.
