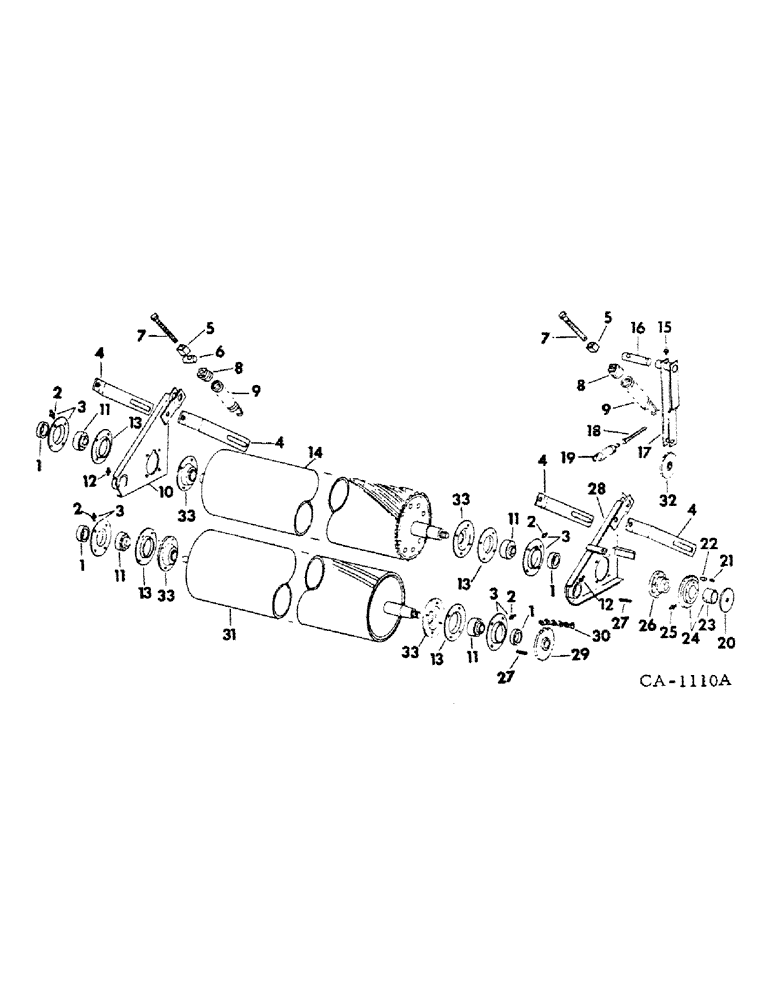

Запчасти Case IH 990 (S-21) - ROLLS AND RELATED PARTS

1

455112R11

COLLAR

W/SET SCREW, locking

4шт.

2

20691R1

FITTING,3/16" x .47" lg, Drive

str drive lub

4шт.

3

488454R1

FLANGED BEARING

W/FITTING, brg

4шт.

4

540706R1

STRAP

roll opening

4шт.

23237R1

HEADED PIN,3/4" x 1 3/4"

PIN, 3/4 x 1-3/4 C-Z ht std-hd

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

5

540703R1

SPACER

spring adjusting bolt

2шт.

6

540709R1

TRUNNION

roll spring

1шт.

7

540704R1

BOLT,Hex, 5/8" - 18 x 8.5", Cl B-2

SCREW, 5/8-11 x 8-1/2 znd hex-hd cap

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

2шт.

8

457528R1

PLUG

spring, 9 ft. machine w/steel upper roll with serial no. 6081 and below and 9 ft. w/rubber upper roll w/serial no. 5232 and below

1шт.

8

542818R1

PLUG

spring, 9 ft. machine w/steel upper roll with serial no. 6082 and above and 9 ft. w/rubber upper roll w/serial no. 5233 and above and 7 ft. machines

1шт.

9

540705R1

SPRING

roll pressure, 9 ft. machine w/steel upper roll with serial no. 6081 and below and 9 ft. w/rubber upper roll w/serial no. 5232 and below

1шт.

9

542802R1

VALVE SPRING

SPRING, roll pressure, 9 ft. machine w/steel upper roll with serial no. 6082 and above and 9 ft. w/rubber upper roll w/serial no. 5233 and above and 7 ft. machines

1шт.

10

540696R1

PLATE ASSY, upper brg RH

1шт.

11

450627R91

BALL BEARING,80 mm OD x 1.6875"

ASSY, roll ball

4шт.

12

19627R91

FITTING, 1/8-27 30 deg angle lub taper drive thd self-tap lub

2шт.

13

488455R1

FLANGE

brg

4шт.

14

540683R3

ROLL ASSY, steel upper, 9 ft.

1шт.

14

542798R3

ROLL ASSY, steel upper, 7 ft.

1шт.

14

540617R3

ROLL

ASSY, rubber upper, 9 ft.

1шт.

14

542786R3

ROLL

ASSY, rubber upper, 7 ft.

1шт.

19830R1

LOCK NUT,5/8"-18, GB

NUT, 5/8-18 C-Z nylon insert

1шт.

15

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28NF, 2 str lub

1шт.

16

540702R1

TRUNNION

idler

1шт.

23041R1

WASHER

1-5/32 x 1-1/2 x 16 ga C-Z

10шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

17

540633R2

STRAP

ASSY, idler

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. lock

1шт.

18

485226R2

EYE

BOLT, idler spring

1шт.

20609R1

WASHER

15/32 x 1-3/4 x 11 ga C-Z

1шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

19

524660R1

VALVE SPRING

SPRING

1шт.

20

540594R1

PLATE, retaining

1шт.

21

540676R2

VALVE SPRING

SPRING, clutch

4шт.

22

540677R1

AXLE PIN

PIN, lock ratchet

4шт.

23

540692R1

BUSHING

drive sprocket

1шт.

24

540691R11

PINION

SPROCKET ASSY, drive 21T

1шт.

25

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

1шт.

26

540693R1

HUB

ratchet

1шт.

27

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1-7/8 sq parallel

2шт.

28

540695R1

PLATE ASSY, upper brg LH

1шт.

29

540631R1

DRIVE SPROCKET

SPROCKET, lower roll 21T

1шт.

30

CHAIN, roll drive, do not substitute chain, use 97 links from 10 ft. roll marked 541581R91 and one connection link 574532R91 and one offset link 612612R91

1шт.

31

540617R3

ROLL

ASSY, rubber lower, 9 ft.

1шт.

31

542786R3

ROLL

ASSY, rubber lower, 7 ft.

1шт.

23276R1

WASHER

21/32 x 2 x 7 ga C-Z

1шт.

19830R1

LOCK NUT,5/8"-18, GB

NUT, 5/8-18 C-Z nylon insert

1шт.

32

548674R91

SPROCKET ASSY.

SPROCKET ASSY, idler 15T, will work for 541857R91

1шт.

33

540632R1

SHIELD

brg

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

8шт.

22006R1

BOLT, 1/2 x 1-1/8 znd sq-nk crg, used w/upper roller

8шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 znd sq-nk crg, used w/lower roller

8шт.
