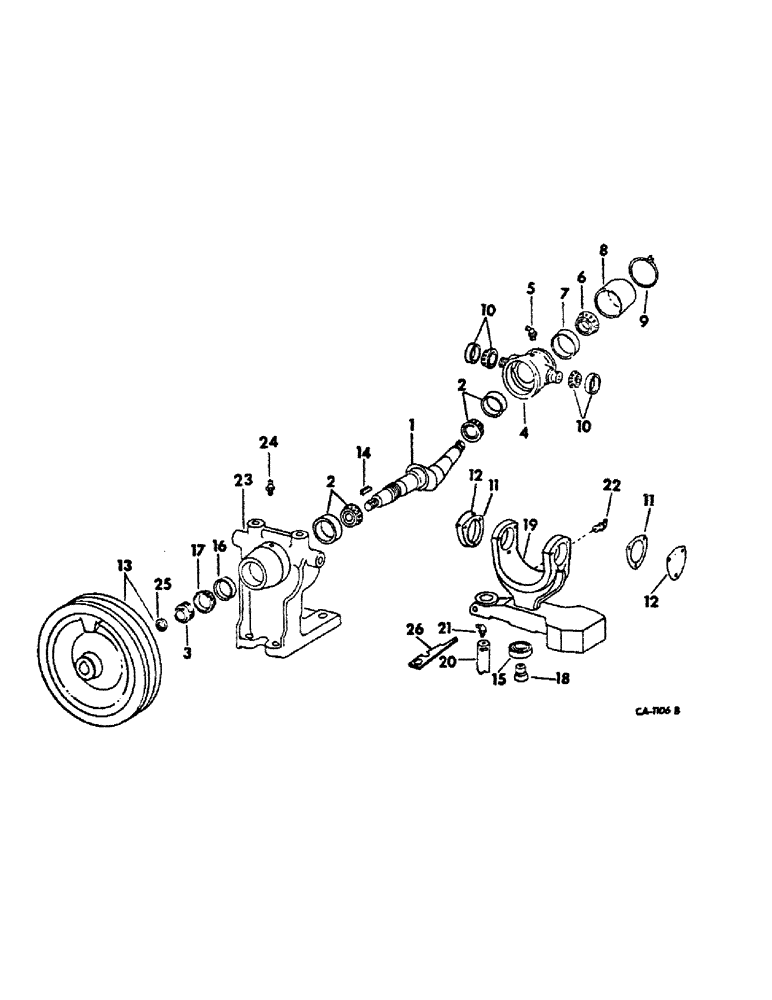

Запчасти Case IH 990 (S-17) - BALANCED HEAD

541939R91

HOUSING ASSY, balance head

1шт.

1

478786R11

SHAFT

ASSY, wobble

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

1шт.

254771R1

NUT

3/4-16 special hex.

2шт.

2

478790R91

BEARING ASSY,38.1mm ID x 72.02mm OD x 20.64mm W

BEARING W/SEAL, wobble shaft housing

2шт.

3

478788R1

LOCK NUT

lock

2шт.

There is no seal, although there was one previously; now the nut itself acts as a seal

1шт.

4

458953R3

HOUSING

balanced hd brg

1шт.

5

541489R1

FITTING, 1/8-27 ptf 90 deg angle less ball & check lub

1шт.

6

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Balanced head housing

1шт.

7

371883R1

BEARING CUP

Balanced head housing

1шт.

8

458954R1

CYLINDER END CAP

CAP, crankshaft brg housing

1шт.

461678R1

SEAL

SEALER, crankshaft brg housing cap

1шт.

9

317596R1

HOSE CLAMP,#42, 2 5/8", Spring

CLAMP, brg housing cap

1шт.

10

458952R91

ROLLER BEARING

W/SEAL, balance yoke roller

2шт.

11

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

yoke brg cap .002

2шт.

11

458956R1

SHIM

yoke brg cap .006, or as required

6шт.

11

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

yoke brg cap .010, or as required

6шт.

12

458958R1

COVER

CAP, yoke bearing

2шт.

26329R1

BOLT,1/4" x 1", Gr 5

SCREW, 1/4-20 x 1 phc

6шт.

13

478787R11

PULLEY

W/WASHER, flywheel

1шт.

14

Q53

KEY,1/4" Sq x 1", Par

1шт.

15

467146R91

BEARING ASSY,24.99mm ID x 52mm OD x 15mm W

ASSY, balance yoke pivot stud

1шт.

16

651817R1

BEARING CUP

BEARING, shaft housing cup

1шт.

17

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, shaft housing cone

1шт.

18

458961R2

STUD

balance yoke pivot

1шт.

102615

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

SCREW, 1/2-13 x 1/2 hex-soc-hd cup-pt set

1шт.

462800R1

WASHER

1.000 x 1.625 x .250 felt balance yoke pivot brg

1шт.

19

540608R11

YOKE

ASSY, balance head

1шт.

20

458973R4

PIN,25.41mm OD x 77.72mm L

knife

1шт.

336132R1

BOLT,1/2" - 20 x 2 3/8", Gr 8

SCREW, 1/2-20 x 2-3/8 type 8 hex-hd cap knife pin clamp bolt

1шт.

543115R1

LOCK WASHER

ext. tooth lock

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

21

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 45 deg angle lub

1шт.

22

16964R91

FITTING

1/4-28 ns 90 deg angle lub in balance yoke

1шт.

23

540610R1

HOUSING, balanced head

1шт.

The 8 bolts that go into item #23, 540610r1 and hold to frame are part no. 204060c1 which subs to 409-7820 bolt. cam djo 8/24/98

1шт.

24

13019R1

FITTING

1/8-27 ptf vented str lub

1шт.

25

478789R1

WASHER

flywheel pulley

1шт.

26

469975R3

GAUGE

TOOL, knife pin removal

1шт.

479342R94

KIT

PACKAGE, balance head housing service, consists of

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

1шт.

254771R1

NUT

3/4-16 special hex.

2шт.

458954R1

CYLINDER END CAP

CAP, crankshaft brg housing

1шт.

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

yoke brg cap .002

2шт.

458956R1

SHIM

yoke brg cap .006

6шт.

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

yoke brg cap .010

6шт.

26329R1

BOLT,1/4" x 1", Gr 5

SCREW, 1/4-20 x 1 phc prevailing torque

6шт.

458973R4

PIN,25.41mm OD x 77.72mm L

knife

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 ptf 30 deg lub

1шт.

336132R1

BOLT,1/2" - 20 x 2 3/8", Gr 8

SCREW, 1/2-20 x 2-3/8 type 8 hex-hd cap, knife pin clamp bolt

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

543115R1

LOCK WASHER

external tooth lock

2шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

SCREW, 7/16-20 x 2-1/4 hex-hd cap, knife pin clamp bolt

1шт.

462799R1

WASHER

7/16 ext-tooth lock

2шт.

271505

BODY

7/16-20 hex.

1шт.

Q53

KEY,1/4" Sq x 1", Par

1шт.

254485R1

NUT

5/8-18 hex.

1шт.

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife head

1шт.

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

21/32 x 1-1/2 x 3/16

1шт.

PRODUCT GRAPHIC, operating instructions (NSS)

1шт.

INSTRUCTIONS, installing (NSS)

1шт.
