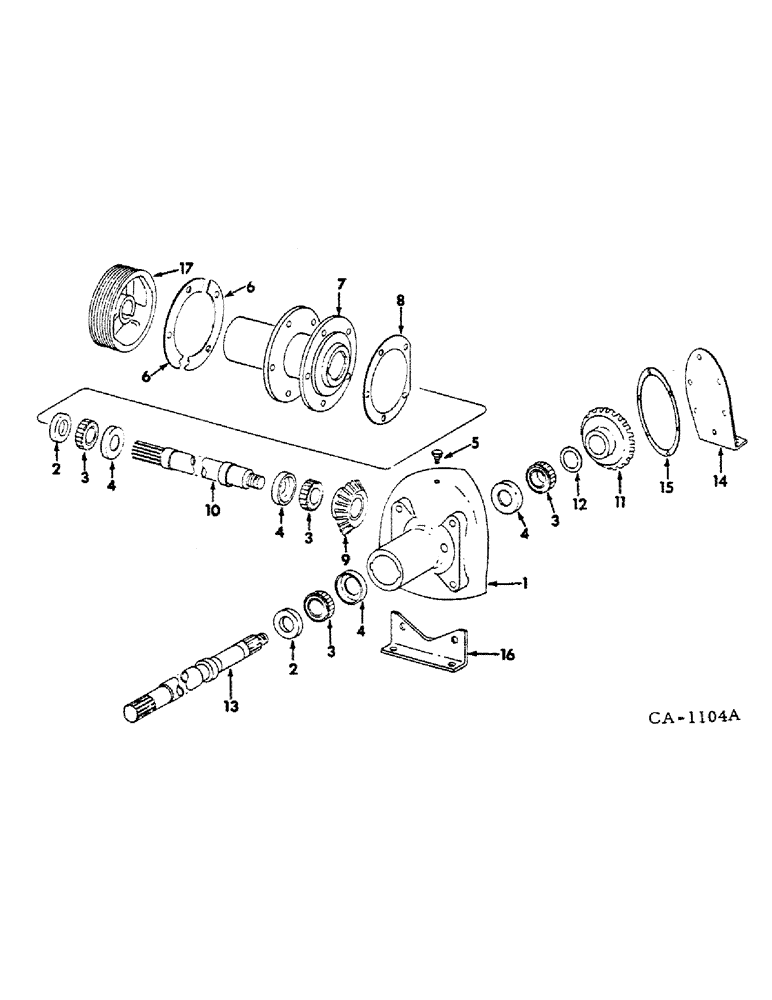

Запчасти Case IH 990 (S-15) - GEAR CASE

1

548052R1

CASE

PTO gear, replaces 663586R3

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 automotive sq-hd drain & filler

2шт.

2

380922R91

OIL SEAL,42.42mm ID x 69.95mm OD x 12.7mm Thk

oil

2шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, output & input shaft cone

4шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Output & input shaft

4шт.

5

153604H1

BREATHER

gear case

1шт.

6

540532R1

SHIM, flange 16 ga, or as required

4шт.

6

540533R1

SHIM, flange 22 ga, or as required

2шт.

7

540534R1

HUB

BARREL, PTO gear box

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

10шт.

482161R1

NUT

7/16-14 C-Z flange lock

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

8

663601R1

SHIM

PTO gear case barrel .020

2шт.

8

663602R1

SHIM

PTO gear case barrel .007

2шт.

8

663603R1

SHIM

PTO gear case barrel .005

2шт.

9

469392R2

GEAR

bevel 15 T

1шт.

7 ft. machines w/steel upper roll and serial no. 1756 & below, 7 ft. machines w/rubber upper roll and serial no. 5070 & below, 9 ft. machines w/steel upper roll and serial no. 6081 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 & below

1шт.

9

549252R2

GEAR

bevel 15 T

1шт.

7 ft. machines w/steel upper roll and serial no. 1756 & below, 7 ft. machines w/rubber upper roll and serial no. 5070 & below, 9 ft. machines w/steel upper roll and serial no. 6081 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 & below

1шт.

10

540535R1

SHAFT

ASSY, output

1шт.

453599R1

WASHER

29/32 x 2 x 1/4

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 znd slt hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

11

469248R2

GEAR, bevel 20 T

1шт.

7 ft. machines w/steel upper roll and serial no. 1756 & below, 7 ft. machines w/rubber upper roll and serial no. 5070 & below, 9 ft. machines w/steel upper roll and serial no. 6081 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 & below

1шт.

11

549251R1

GEAR

bevel 20 T

1шт.

7 ft. machines w/steel upper roll and serial no. 1756 & below, 7 ft. machines w/rubber upper roll and serial no. 5070 & below, 9 ft. machines w/steel upper roll and serial no. 6081 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 & below

1шт.

12

663604R2

SHIM

PTO gear .020

2шт.

12

663605R2

SHIM

PTO gear .007

2шт.

12

663606R2

SHIM

PTO gear .005

2шт.

13

540537R1

SHAFT ASSY, input, 9 ft. machines w/steel upper roll and serial no. 1756 & below and 9 ft. machines w/rubber upper roll and serial no. 5232 and below

1шт.

13

542784R1

SHAFT ASSY, input, 9 ft. machines w/steel upper roll and serial no. 1575 & above and 9 ft. machines w/rubber upper roll and serial no. 5233 and above and 7 ft. machines

1шт.

453599R1

WASHER

29/32 x 2 x 1/4

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 znd slt hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

14

663596R1

COVER, gear case, will work for 540539R2, used w/PTO gear case, 548052R1

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga C-Z, used w/540539R2

2шт.

15

663607R1

GASKET

gear case cover

1шт.

15

540540R1

SUPPORT, gear case frt

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

4шт.

17

540541R1

PULLEY, driver

1шт.

114-414

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

SCREW, 1/2-20 x 2-3/4 znd hex-hd cap

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

484781R1

NUT

1/2-20 C-Z flange lock

1шт.
