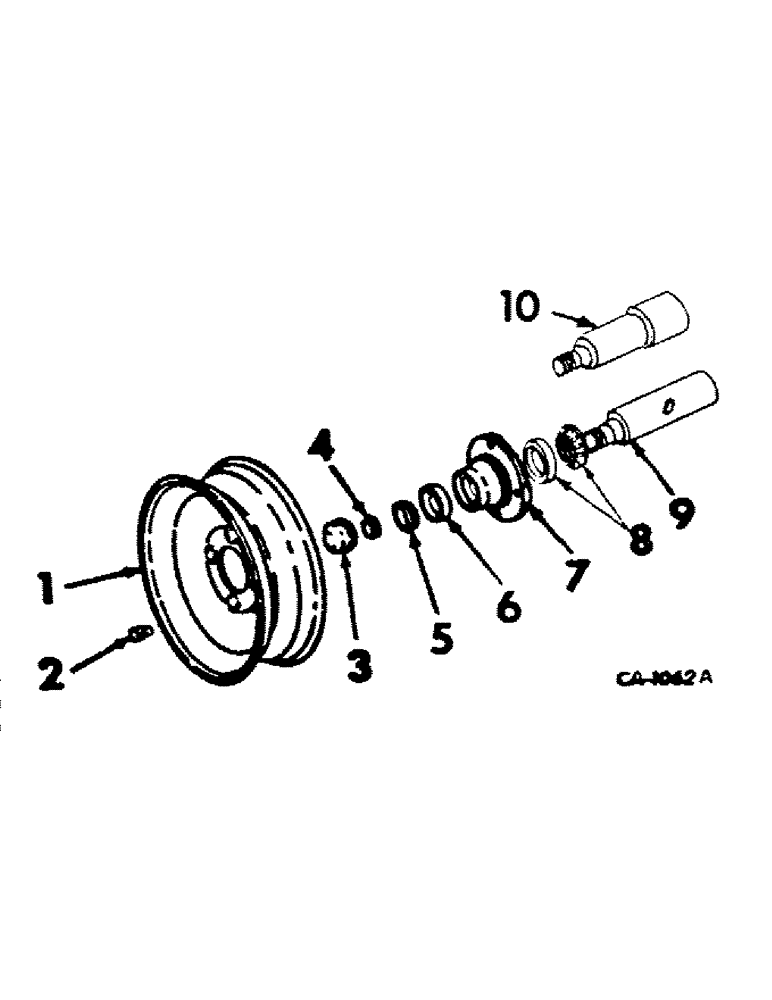

Запчасти Case IH 990 (S-14) - WHEELS, HUBS AND SPINDLES

1

542437R1

WHEEL

15 x 7JA, 7 ft., for 27 x 8.50-15 4 ply terra traction tubeless floatation tire w/4 bolt pattern

2шт.

1

126576C1

WHEEL (STEERING)

WHEEL, 15 x 7JA, 9 ft., for 27 x 8.50-15 4 ply terra extra- traction tubeless floatation tire w/6 bolt pattern

2шт.

1

455169R92

WHEEL

15 in. 9 ft., for 6.40-15 4 ply pneumatic rib tread implement tubeless tire

2шт.

1

662994R91

WHEEL

WHEE, 15 in. 7 ft., for 5.90-15 4 ply pneumatic rib tread implement tubeless tire

1шт.

387897R91

VALVE STEM

VALVE, 415TR

1шт.

2

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 C-Z conical-hv, 8 w/4 bolt pattern & 12 w/6 bolt

1шт.

3

651194R1

CAP

wheel hub

2шт.

4

69442D

NUT

3/4-16 slt hex.

2шт.

5

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer cone

2шт.

5

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

6

651814R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

7

465492R2

HUB

wheel, 7 ft., w/4 bolt pattern

2шт.

7

126544C1

HUB CAP

HUB, wheel, 9 ft., w/6 bolt pattern

2шт.

8

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, wheel hub inner

2шт.

9

540638R1

SPINDLE

9 ft., machines w/4 bolt wheel

2шт.

9

126600C1

SPINDLE

9 ft., w/6 bolt pattern

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

10

544929R1

SPINDLE

REPAIR SPINDLE ASSY, wheel, 7 ft.

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.
