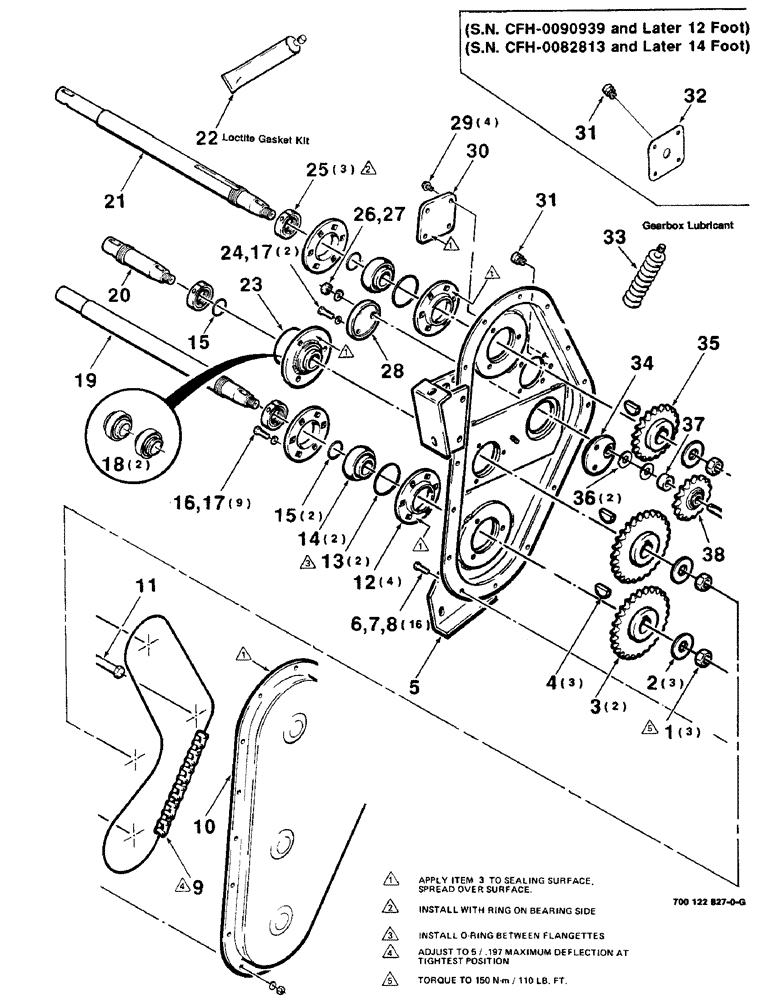

Запчасти Case IH 8370 (2-10) - CHAINBOX, AUGER DRIVE ASSEMBLY (09) - CHASSIS

1

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 J

3шт.

2

705566

WASHER

3/4 HARDENED PLAIN WASHER

3шт.

3

700110594

SPROCKET

- 27 tooth

2шт.

4

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

3шт.

5

700110614

PLATE

- inner

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

16шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

8

425-105

NUT,5/16"-18, G5

16шт.

9

700707023

TRACK ASSY

CHAIN - roller

1шт.

10

700110571

SHIELD

PLATE - outer

1шт.

11

700110943

SCREW

5/8-11 X 3 C, special

1шт.

12

825620C1

RETAINER

- bearing

4шт.

13

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

14

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

2шт.

15

238-5025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

3шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

17

492-11038

LOCK WASHER,3/8"

11шт.

18

563883R91

BALL BEARING,31.75mm ID x 62mm OD x 16mm W

BEARING - cylindrical

2шт.

19

700110630

SHAFT

- lower (12 foot)

1шт.

700110607

SHAFT

- lower (14 foot)

1шт.

20

700110604

SHAFT

- middle

1шт.

21

700110628

SHAFT

- upper (12 foot)

1шт.

700110609

SHAFT

- upper (14 foot)

1шт.

22

700707823

SEALANT

GASKET KIT - loctite

1шт.

23

700111975

BEARING ASSY

HOUSING ASSEMBLY - bearing

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

25

700706353

COLLAR

- clamp

3шт.

26

425-1010

NUT,5/8"-11, G5

1шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

28

700110612

COVER

- cam

1шт.

29

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

4шт.

30

700111572

COVER

1шт.

31

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

2шт.

32

700133239

PLATE

WA - cover

1шт.

33

B505154

LUBRICANT

GEARBOX LUBRICANT (1 lb. squeeze container)

1шт.

34

700110613

CAM

1шт.

35

700110597

SPROCKET

- 20 tooth

1шт.

36

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

37

700110610

SPACER

1шт.

38

541857R92

SPROCKET,15T

- idler, 15 tooth

1шт.
