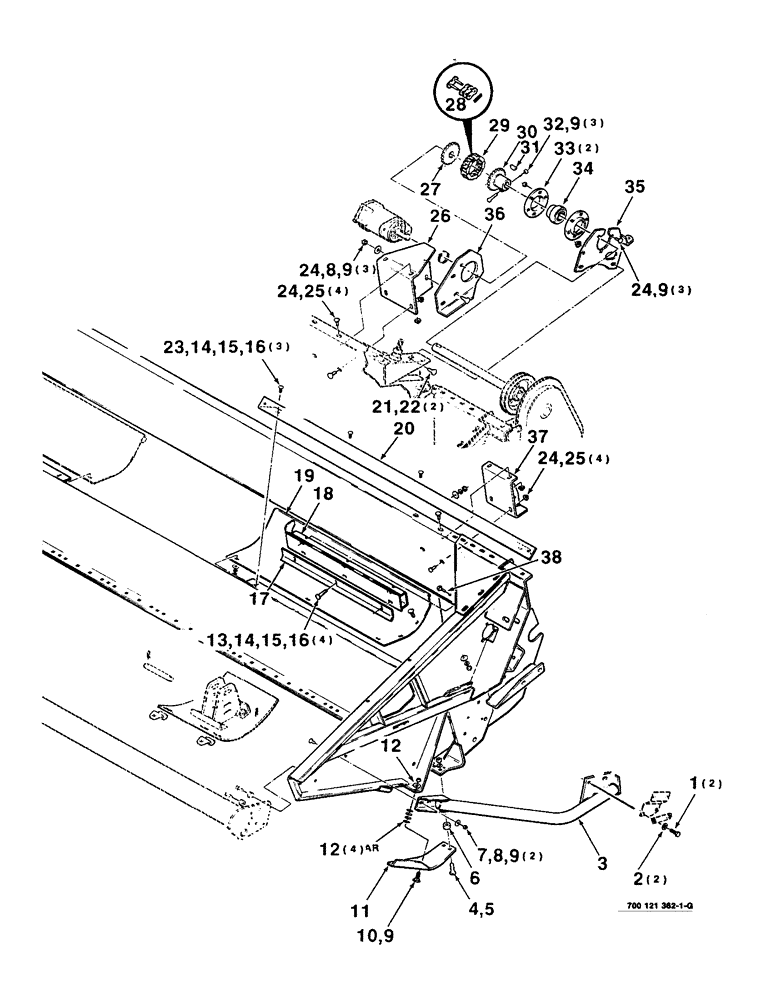

Запчасти Case IH 8370 (2-08) - HEADER AND PRIMARY DRIVE ASSEMBLY, 14 FT, LEFT (09) - CHASSIS

1

114-612

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

2

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

3

700124647

GUARD

- brace

1шт.

4

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

5

425-107

NUT,7/16"-14, G5

7/16-14 H

1шт.

6

700110561

SPACER

1шт.

7

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

9

425-106

NUT,3/8"-16, Cl 5

10шт.

10

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PB

1шт.

11

700110225

DIVIDER POINT

DIVIDER - left

1шт.

12

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

5шт.

13

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

15

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

7шт.

16

425-105

NUT,5/16"-18, G5

7шт.

17

700109703

ANGLE

- stripper, left

1шт.

18

700109697

STRIPPER

- left

1шт.

19

700110215

PAN

EL - auger, left

1шт.

20

700111552

STRIPPER

1шт.

21

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

23

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

3шт.

24

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

14шт.

25

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

26

700115192

MOUNTING PARTS

MOUNTING - motor

1шт.

27

700114749

SPROCKET ASSY.

SPROCKET - motor

1шт.

28

241-1325

LINK,15.88mm Pitch

CONNECTOR LINK - double

1шт.

29

700705788

CHAIN

- coupler

1шт.

30

700115153

SPROCKET ASSY.

SPROCKET - coupler

1шт.

31

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

33

712612

FLANGE

- bearing

2шт.

34

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

1шт.

35

700115589

STRAP

SUPPORT - bearing

1шт.

36

700115590

SUPPORT

- motor

1шт.

37

700115187

CHANNEL

- mounting

1шт.

38

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

1шт.
