(8-22) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, SLAVE, 700712022 COMPLETE

Запчасти Case IH 8370 (8-22) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, SLAVE, 700712022 COMPLETE (08) - HYDRAULICS

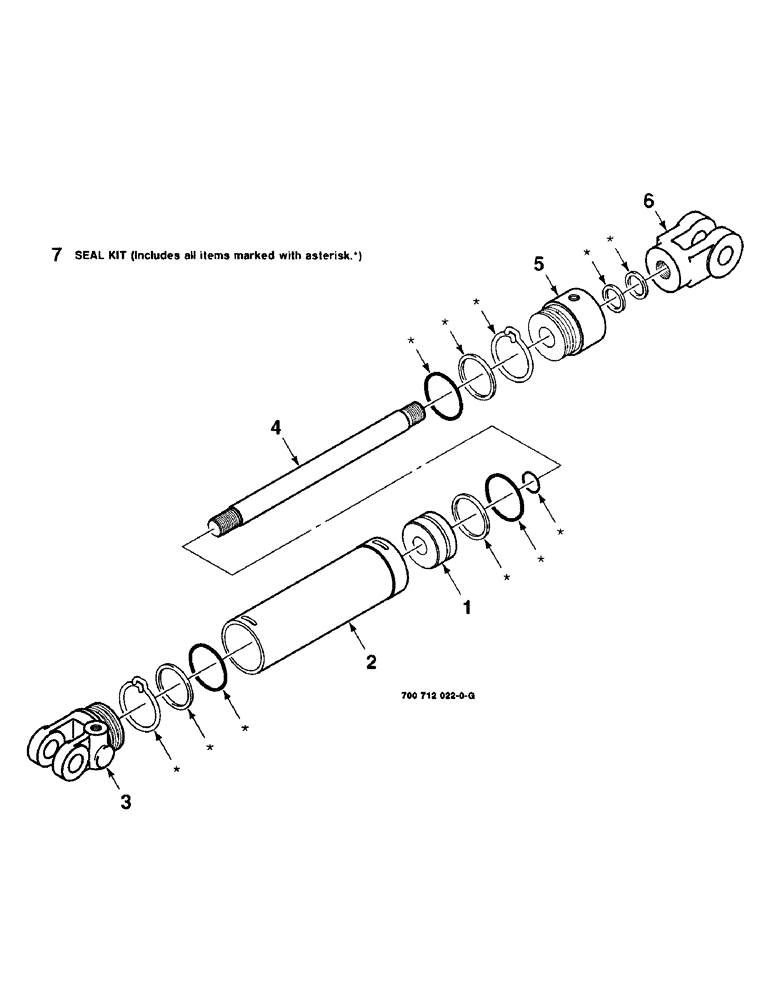

Схема запчастей Case IH 8370 - (8-22) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, SLAVE, 700712022 COMPLETE (08) - HYDRAULICS
2
6
4
1
5
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712022

CYLINDER

HYDRAULIC CYLINDER ASSEMBLY COMPLETE

1шт.

1

H436684

JACK PISTON

PISTON - cylinder

1шт.

2

102690A1

TUBE

BARREL

1шт.

3

700700105

HEAD

- cylinder

1шт.

4

102692A1

ROD

- piston

1шт.

5

102686A1

GLAND

BEARING - cylinder rod

1шт.

6

50-2087T1

END

CLEVIS - rod end

1шт.

7

700710260

SEAL KIT

KIT, Includes items in art marked with asterisk.

1шт.
