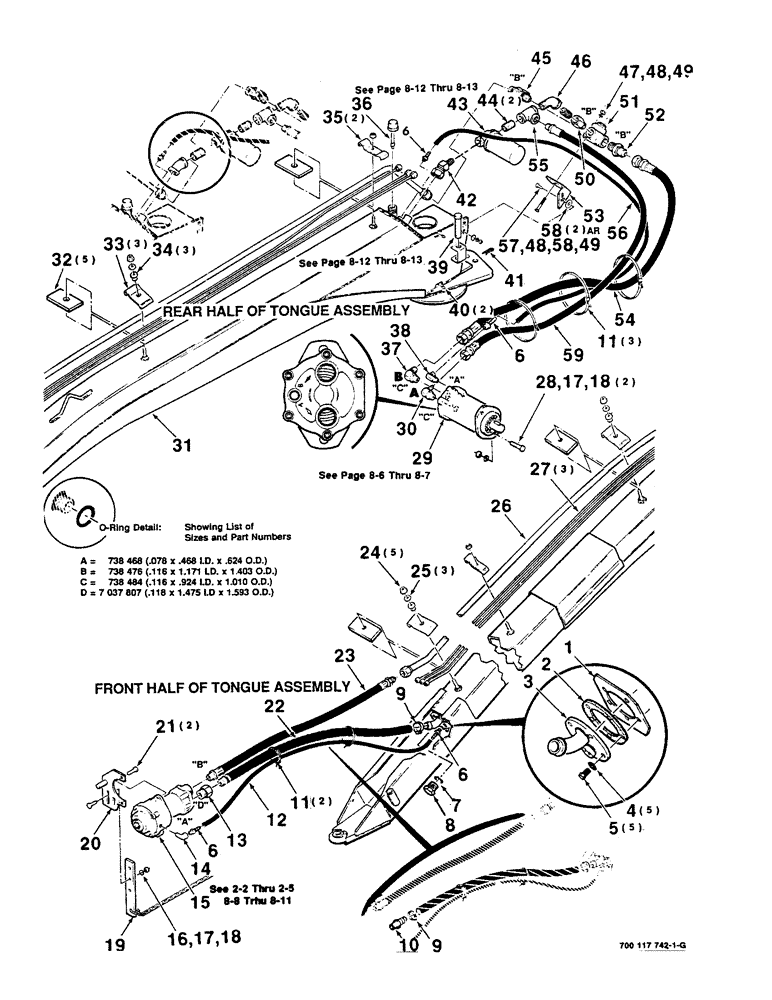

Запчасти Case IH 8360 (8-02) - TONGUE AND HYDRAULIC DRIVE ASSEMBLY, OLD STYLE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
6231799
CAP
- front
1шт.
2
844134
GASKET
1шт.
3
6453161
COVER
1шт.
4
739433
SVC LITERATURE MISC
- nylon
5шт.
5
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
C Hex, 5/16"-18 x 3/4", G5, Full Thd
5шт.
6
217-122
FITTING,3/8" Hose Barb x 3/8" Male NPTF
INSERT
4шт.
7
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
20-1, 90 Duro, 1.475" ID x .118" Thk
1шт.
8
8746117
PLUG
1шт.
9
214-1424
HOSE CLAMP,#24, 1.06" - 2", Type F Worm
CLAMP, HOSE, #24, 1.06/2.00 Type F Worm
2шт.
10
8046005
NIPPLE, LUBE
1-1/2 NPTF M/NIPPLE
1шт.
11
7021728
STRAP
CABLE - tie
5шт.
12
843367
HYDRAULIC HOSE,0.38" ID x 58.00"
HOSE - hydraulic
1шт.
13
7746076
ADAPTER
CONNECTOR
1шт.
14
7791916
ELBOW
90 DEGREE ELBOW
1шт.
15
700712138
GEARBOX ASSY
GEARBOX STEP-UP ASSEMBLY (540 RPM)
1шт.
15
700712138R
REMAN-GEARBOX
Remanufactured Gearbox
1шт.
15
700712138C
CORE-GEARBOX
Return Number, Gearbox, Step-Up (540 RPM)
1шт.
700700937
PUMP, HYDRAULIC
PUMP ASSEMBLY (540 RPM)
1шт.
277624R
REMAN-HYD PUMP
8360, 8370, Reman For New P/N 700700937
1шт.
277624C
CORE-HYDRAULIC PUMP
Return Number
1шт.
700712139
GEARBOX ASSY
GEARBOX STEP-UP ASSEMBLY (1000 RPM)
1шт.
700712139R
REMAN-GEARBOX
Remanufactured Gearbox
1шт.
700712139C
CORE-GEARBOX
Return Number, Gearbox, Step-Up (1000 RPM).
1шт.
700700711
PUMP
ASSEMBLY (1000 RPM)
1шт.
16
433-824
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
1/2-13 X 1-1/2 RHSNB
1шт.
17
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
3шт.
18
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
3шт.
19
1661984
ARM
TORQUE ARM
1шт.
20
1661987
SUPPORT
1шт.
21
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
22
700707321
HOSE ASSY.
HOSE ASSEMBLY - hydraulic
1шт.
23
7872070
HOSE,25.4mm ID x 1092.2mm L, SAE 100R12
- hydraulic
1шт.
25
495-21044
WASHER,3/8"
3шт.
26
700706794
TUBE
LINE - hydraulic
1шт.
27
7074479
TUBE,9.53 mm OD, 5146 mm Length
LINE - hydraulic
3шт.
28
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
2шт.
29
7842925
HYDRAULIC MOTOR
MOTOR ASSEMBLY - hydrostatic
1шт.
700728299R
REMAN-HYD MOTOR
8360, 8370, Reman for New P/N 7842925
1шт.
700728299C
REMAN-HYD MOTOR
Return Number
1шт.
30
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
1шт.
31
700115110
TOW BAR
TONGUE
1шт.
32
700702496
PAD
5шт.
33
700115334
CLAMP
- line, hydraulic
3шт.
34
D52276
ISOLATOR,10.16mm ID x 28.07mm OD x mm L
MOUNTING - rubber
3шт.
35
6232300
CLAMP
- line, hydraulic
2шт.
36
6485924
DIPSTICK
1шт.
37
791210
ELBOW
90 DEGREE ELBOW WITH O-RING
1шт.
38
218-5392
ELBOW,90 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem
- swivel with o-ring
1шт.
39
439-11668
HEADED PIN,25.4mm OD x 107.95mm L
CLEVIS PIN
1шт.
40
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
2шт.
41
062455
PIN, SPLIT (COTTER)
.178 HAIRPIN - cotter
1шт.
42
218-940
ELBOW,45 Degree, 1" NPTF Male x 1" NPSM Fem Sw
FITTING - hydraulic
1шт.
43
7742679
FILTER
1шт.
44
746883
PIPE
1 CLOSE NIPPLE
2шт.
45
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
1шт.
46
7746001
BALL
1 X 45 DEGREE STREET ELL
1шт.
47
433-648
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5
3/8-16 X 3 RHSNB
1шт.
48
492-11038
LOCK WASHER,3/8"
3шт.
49
425-106
NUT,3/8"-16, Cl 5
3шт.
50
218-5092
ADAPTER
CONNECTOR
1шт.
51
700707271
VALVE POPPET
VALVE - relief
1шт.
52
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR, HYD., 1 5/16"-12, 37º x 1 5/16"-12, O-Ring
1шт.
53
700115137
MOUNTING PARTS
MOUNTING - valve
1шт.
54
700706791
HOSE
- hydraulic
1шт.
55
746842
TEE
- female
1шт.
56
700706793
HOSE
- hydraulic
1шт.
57
433-620
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5
2шт.
58
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 HARDENED PLAIN WASHER
4шт.
59
700711828
HOSE
- hydraulic
1шт.
Выбрано товаров: 70
