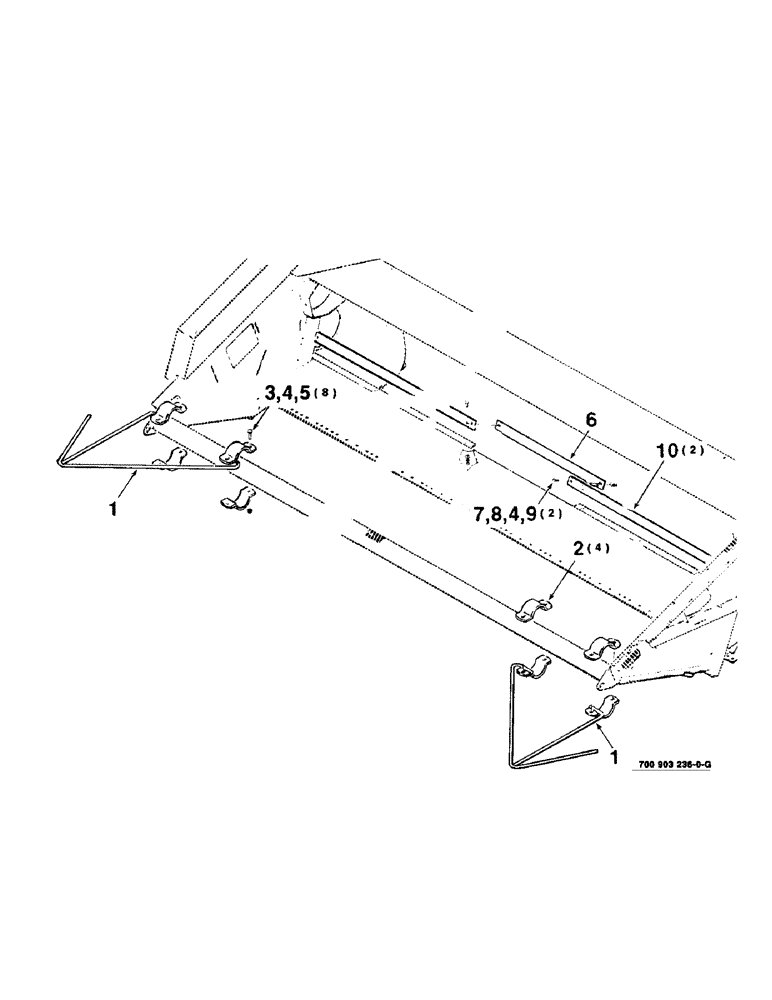

Запчасти Case IH 8360 (9-32) - CROP DIVIDER KIT ASSEMBLY, HK60809 COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

HK60809

DIODE ELEMENT

CROP DIVIDER KIT COMPLETE

1шт.

1

700111547

ROD

- divider

2шт.

2

700111549

CLAMP

- half

4шт.

3

111-274

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 3/4", G5

5/16-18 X 1-3/4 RHSNB

8шт.

4

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

10шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

6

700111550

STRIPPER

- center

1шт.

7

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

700129385

STRIPPER

2шт.
