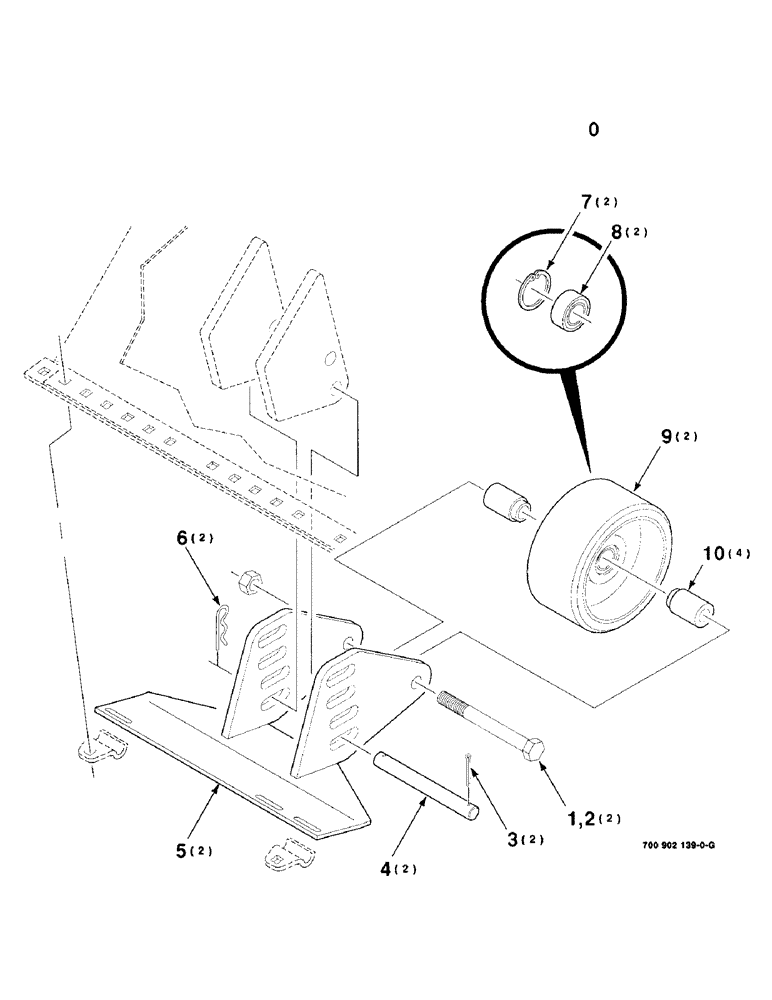

Запчасти Case IH 8360 (9-26) - GAUGE WHEEL KIT, 12 FOOT, HK60561 COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

HK60561

ATTACHMENT

GAUGE WHEEL KIT COMPLETE

1шт.

1

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4-10 X 7 C

2шт.

2

425-1012

NUT,3/4"-10, G5

3/4-10 H

2шт.

3

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

4

700117631

PIN

2шт.

5

700119671

SUPPORT

- wheel

2шт.

6

T40222

SPLIT PIN/SAFETY PIN

.243 WIRE HAIRPIN COTTER

2шт.

7

100-21218

SNAP RING,2.165", Int, #216

Ring, Snap, 2.165", Int, #216

2шт.

8

700709106

BEARING, ROLLER, CYL,29.99mm ID x 55mm OD x 23.02mm W

BEARING - cylindrical

2шт.

9

700119691

WHEEL

ASSEMBLY - gauge (Includes items 7 and 8)

2шт.

10

700119670

TUBE,38.1 mm OD, 61 mm Length

SPACER - tube

4шт.
