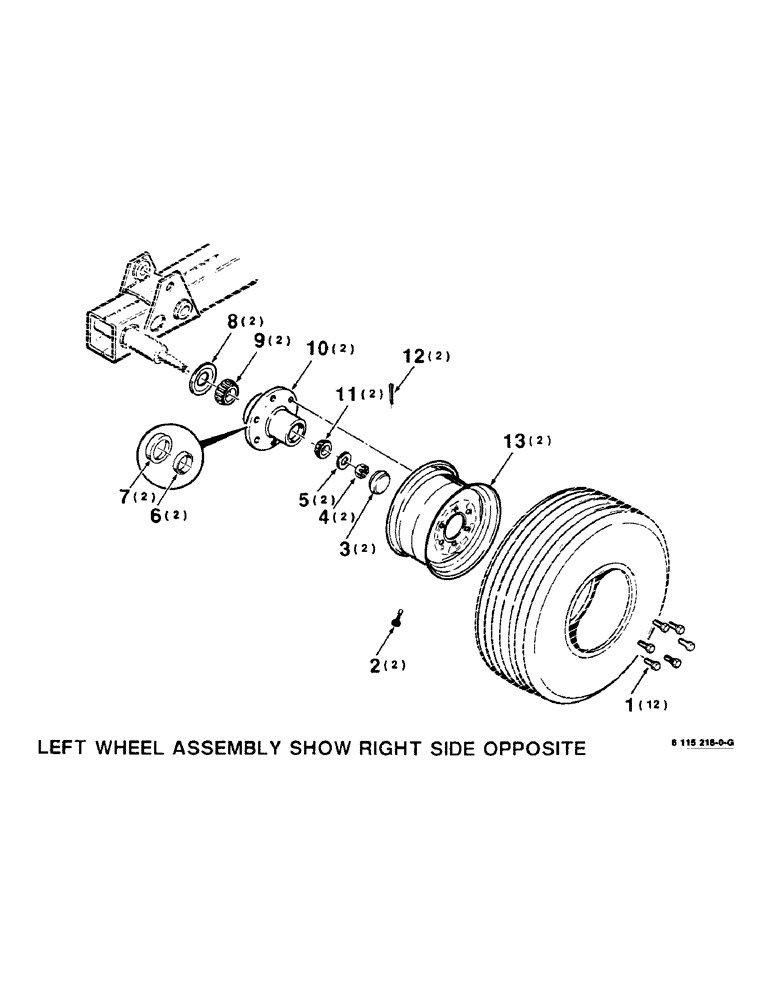

Запчасти Case IH 8360 (7-30) - WHEEL AND HUB ASSEMBLY (09) - CHASSIS

1

T52730

WHEEL BOLT

9/16-18 X 1-1/4 WHEEL BOLT

12шт.

2

A38261

VALVE

STEM - valve

2шт.

3

D143405

CAP

- hub

2шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

7/8-14 SLOTTED HEX NUT

2шт.

5

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 HARDENED PLAIN WASHER

2шт.

6

165964R1

BEARING CUP

2шт.

7

130503H

BEARING CUP

2шт.

8

491715R91

OIL SEAL

2шт.

9

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

- inner

2шт.

10

26690

HUB

ASSEMBLY (Includes cups)

2шт.

11

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

- outer

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

13

A57879

RIM

WHEEL RIM, 15 X 8 LB

2шт.
