(7-28) - WINDROW FORMING SHIELDS ASSEMBLY

Запчасти Case IH 8360 (7-28) - WINDROW FORMING SHIELDS ASSEMBLY (09) - CHASSIS

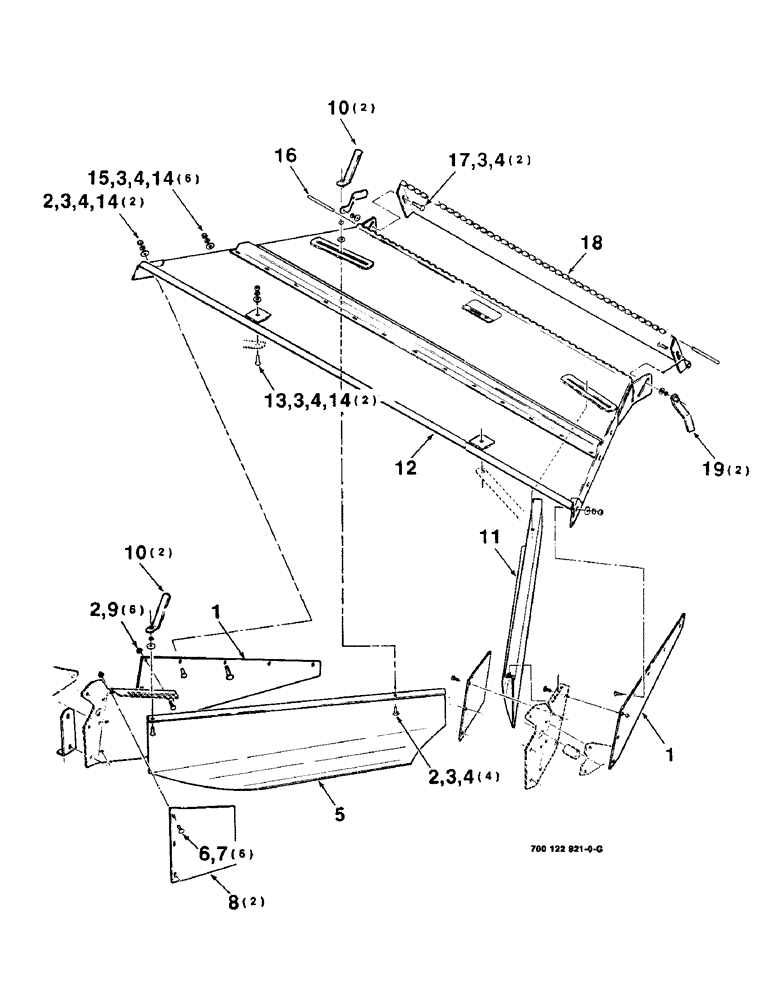

Схема запчастей Case IH 8360 - (7-28) - WINDROW FORMING SHIELDS ASSEMBLY (09) - CHASSIS
4
10
14
2
19
5
12
18
13
2
3
2
16
11
9
4
3
1
14
3
3
8
7
1
4
4
14
17
3
10
4
6
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700115293

SHIELD

- support

2шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

12шт.

3

492-11038

LOCK WASHER,3/8"

16шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

16шт.

5

700109841

SHIELD

- forming, right

1шт.

6

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

6шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

8

700109693

SHIELD

- shingle

2шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

10

6456750

HANDLE

LEVER NUT

4шт.

11

700109840

SHIELD

- forming, left

1шт.

12

700109828

SHIELD

- top

1шт.

13

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

14

425-106

NUT,3/8"-16, Cl 5

10шт.

15

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

6шт.

16

700109838

ROD

PIN - hinge

1шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSSNB

2шт.

18

700109839

DEFLECTOR

- rear

1шт.

19

6232532

NUT

NUT

2шт.
