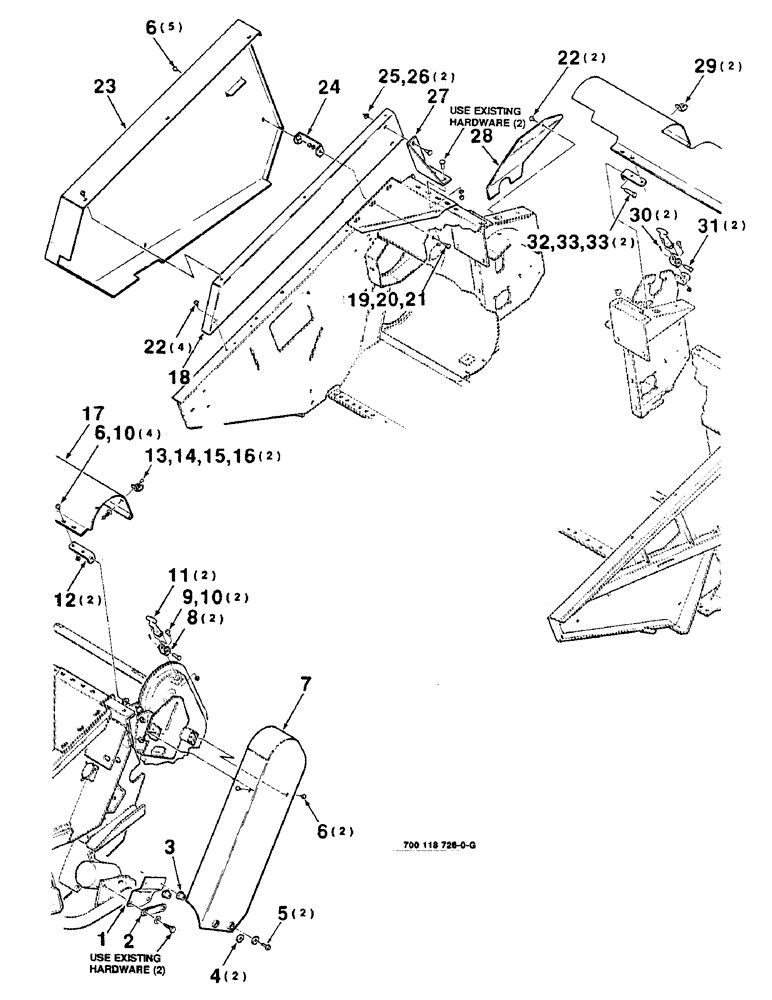

Запчасти Case IH 8360 (7-24) - SHIELDS ASSEMBLY, 12 FOOT (09) - CHASSIS

1

700110719

ANGLE

- support (S.N. CFH-0043001 thru -0043886)

1шт.

700124688

SUPPORT

ANGLE SUPPORT (S.N. CFH-0043887 and later)

1шт.

2

700124675

STRAP

1шт.

3

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT

1шт.

4

700111084

WASHER

2шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS

2шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

11шт.

7

700110713

SHIELD

- sickle drive

1шт.

8

776674

SUPPORT

BRACKET - anchor

2шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

11

494307C1

LATCH

HOOK - rubber

2шт.

12

700110705

SUPPORT

- shield

2шт.

13

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

NO. 10-24 X 1/2 CRPHMS

2шт.

14

195-513

WASHER,#10

PLAIN WASHER #10

2шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

225-14110

NUT,#10-24

2шт.

17

700118771

SHIELD

- cross shaft

1шт.

18

700110716

SHIELD

- inner, right

1шт.

19

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

425-105

NUT,5/16"-18, G5

1шт.

22

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

6шт.

23

700110717

SHIELD

- right

1шт.

24

700109519

SUPPORT

- shield

1шт.

25

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

26

231-5146

FLANGE NUT,3/8"-16

2шт.

27

700109516

GUSSET

1шт.

28

700110711

SHIELD

SHEILD - hay conditioner

1шт.

29

8722910

BRACKET

2шт.

30

141-13

CLEVIS PIN,1/4" x 1.594"

1/2 X 1-1/2 CLEVIS PIN

2шт.

31

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

32

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

33

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.
