(7-22) - FLOTATION SPRING ASSY., 12 FT S/N CFH0043728 & LATER, 14 FT S/N CFH00082047 & LATER

Запчасти Case IH 8360 (7-22) - FLOTATION SPRING ASSY., 12 FT S/N CFH0043728 & LATER, 14 FT S/N CFH00082047 & LATER (09) - CHASSIS

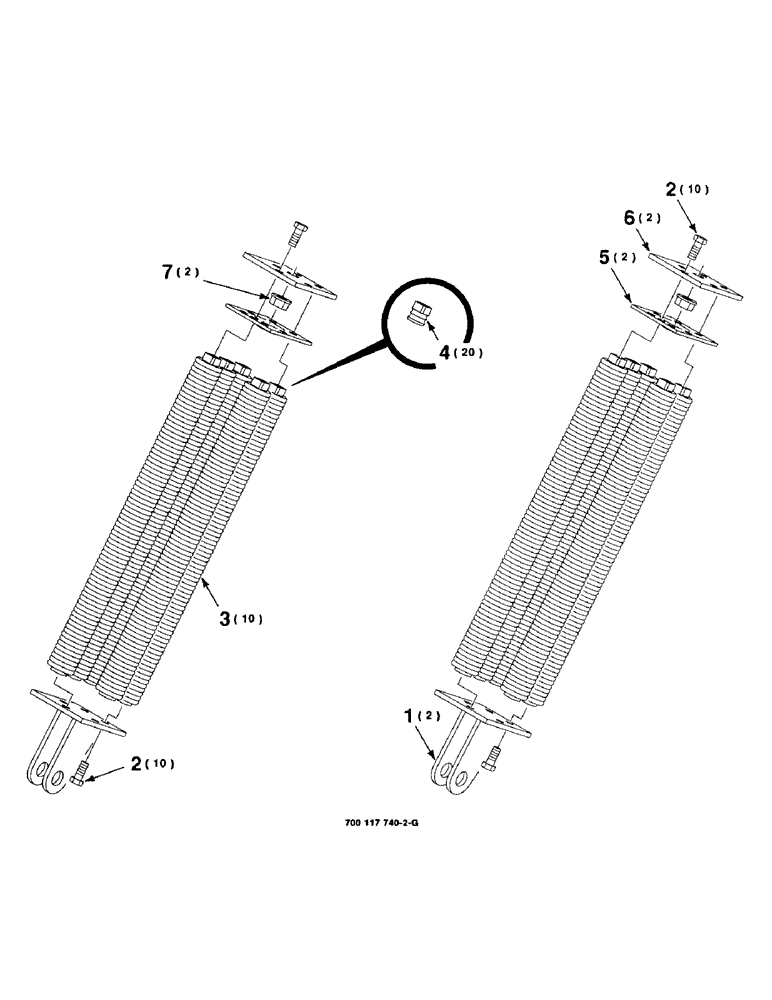

Схема запчастей Case IH 8360 - (7-22) - FLOTATION SPRING ASSY., 12 FT S/N CFH0043728 & LATER, 14 FT S/N CFH00082047 & LATER (09) - CHASSIS
5
4
7
2
3
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700115177

HANGER

WA - spring

2шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

20шт.

3

700115183

SPRING

ASSEMBLY (Includes plugs)

10шт.

4

299230

PLUG

- spring

20шт.

5

700124521

LARGE PLATE

PLATE

2шт.

6

700124517

LARGE PLATE

PLATE - upper

2шт.

7

700712095

NUT

7/8-9 HFN GR8

2шт.
