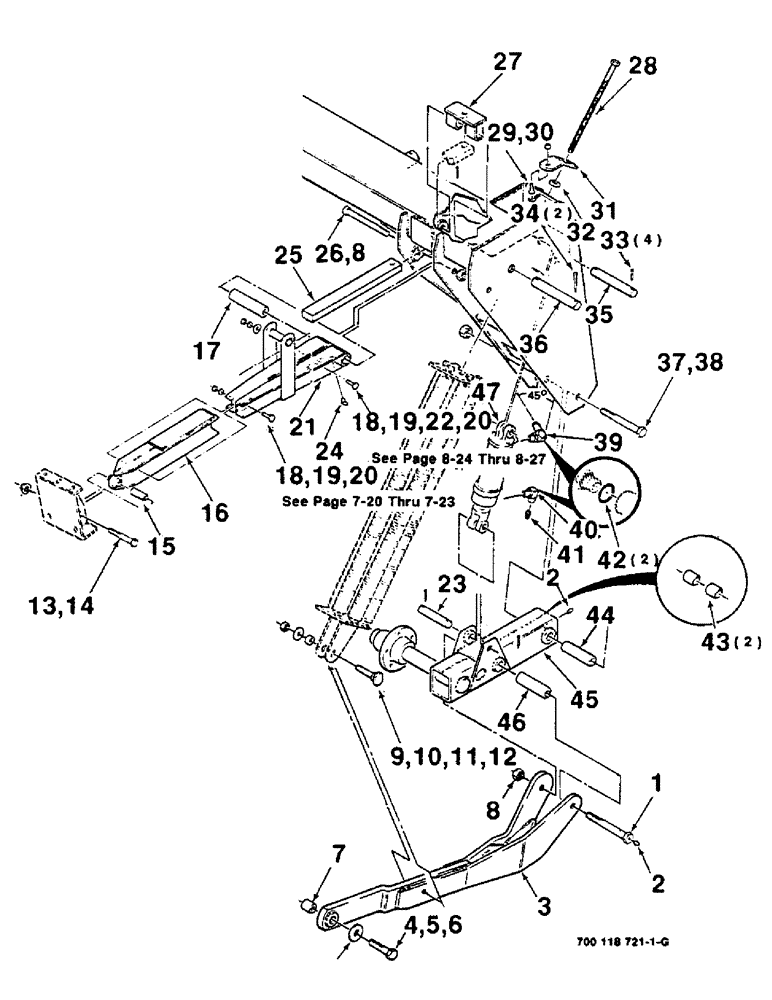

Запчасти Case IH 8360 (7-14) - HEADER FRAME AND FLOTATION ASSEMBLY, LEFT, 12 FOOT (09) - CHASSIS

1

700115167

BOLT

- special

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

3

700118758

ARM

- lower, left

1шт.

4

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

5

495-21081

WASHER,3/4"

1шт.

6

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

7

700115152

BUSHING

- arm, front

1шт.

8

230-42112

LOCK NUT,3/4"-10, GA

3/4-10 HCLN

2шт.

9

700118775

STUD

- bolt

1шт.

10

6213193

SPACER

1шт.

11

6555346

WASHER

1шт.

12

230-42110

LOCK NUT,5/8"-11, GA

5/8-11 HCLN

1шт.

13

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

1шт.

14

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

15

700115151

SPACER

- arm, front

1шт.

16

700115138

ARM

- upper, front

1шт.

17

700115165

BUSHING

1шт.

18

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

21

700115157

ARM

- upper, rear

1шт.

22

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

23

700115185

PIN

- cylinder, lower

1шт.

24

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

25

700706813

SPRING

- leaf

1шт.

26

414-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

3/4-10 X 8 B

1шт.

27

700115142

MOUNTING PARTS

ANCHOR - spring

1шт.

28

7773658

BOLT

- spring (S.N. CFH-0043001 thru -0043727)

1шт.

700712025

SPECIAL BOLT,Spcl, 7/8" - 9 x 14", Gr 5

BOLT - spring (S.N. CFH-0043728 and later)

1шт.

29

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

31

700115168

RETAINER

(S.N. CFH-0043001 thru -0043727)

1шт.

700124287

RETAINER

(S.N. CFH-0043728 and later)

1шт.

32

700115336

WASHER

(S.N. CFH-0043001 thru -0043727)

1шт.

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

(S.N. CFH-0043728 and later)

1шт.

33

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

34

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

35

700115184

PIN

- cylinder, upper

1шт.

36

6670020

PIN

- anchor, spring

1шт.

37

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

1-8 X 8 B

1шт.

38

425-1016

NUT,1"-8, G5

1шт.

39

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

40

218-5453

ELBOW,90 Degree, 3/4"-16 ORB x 3/8" NPT Fem

ADAPTER - 90 degree female

1шт.

41

700704639

PLUG

- vent

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

43

852459

BRONZE BUSHING

BUSHING - bronze

2шт.

44

700115166

SLEEVE,25.96mm ID x 38.1mm OD x 138mm L

- strut, rear

1шт.

45

700118756

STRUT

WITH HUB - left

1шт.

46

700115164

BUSHING,19.84mm ID x 28.58mm OD x 140mm L

- strut, center

1шт.

47

700712022

CYLINDER

- hydraulic, left (S.N. CFH0043001 thru -0043602)

1шт.

700712022

CYLINDER

- hydraulic, left (S.N. CFH-0043603 and later)

1шт.
