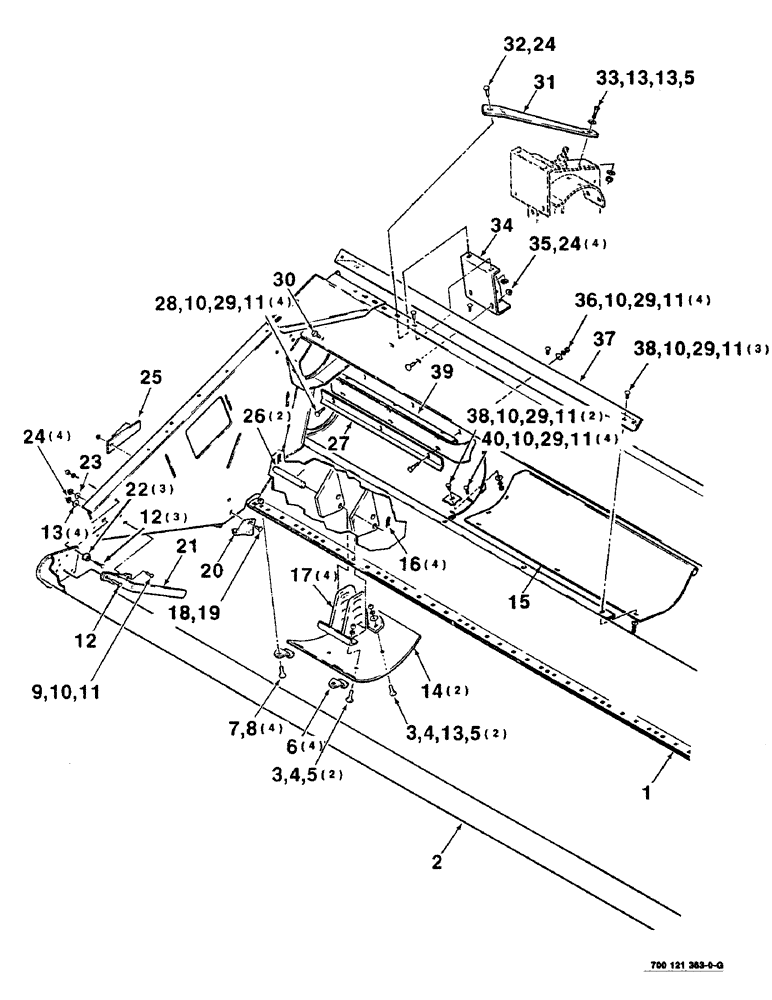

Запчасти Case IH 8360 (7-06) - HEADER, LEAN BAR, AND SKID SHOE ASSEMBLY, RIGHT, 12 FOOT (09) - CHASSIS

1

700110666

FRAME

HEADER

1шт.

2

700124284

BAR

LEAN BAR

1шт.

3

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PB

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

5шт.

6

6453799

CLIP

- shoe, skid

4шт.

7

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

4шт.

8

425-107

NUT,7/16"-14, G5

7/16-14 H

4шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C NP Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

11

425-105

NUT,5/16"-18, G5

18шт.

12

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

3/8-16 X 1-1/2 C GR8 NP

4шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

14

700110560

SKID/SHOE

SKID - shoe (for left & right)

2шт.

15

700110216

PAN

EL - auger, right

1шт.

16

S120261

PIN

HAIRPIN COTTER

4шт.

17

700109503

SUPPORT

- adjustable

4шт.

18

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

1шт.

19

231-5146

FLANGE NUT,3/8"-16

1шт.

20

700110224

COVER

STRAP - deflector

1шт.

21

700111947

DEFLECTOR

STRAP - deflector

1шт.

22

6605752

SPACER

3шт.

23

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 X 3/4 HWHTCTS

1шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

9шт.

25

700111941

SHIELD

- sickle

1шт.

26

700109536

PIN

2шт.

27

700110664

ANGLE

- stripper, right

1шт.

28

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

4шт.

29

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

17шт.

30

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

1шт.

31

700121447

STRAP

- shield

1шт.

32

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

1шт.

33

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

34

700115187

CHANNEL

- mounting

1шт.

35

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

36

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

4шт.

37

700111551

STRIPPER

1шт.

38

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

5шт.

39

700110659

STRIPPER

- right

1шт.

40

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.
