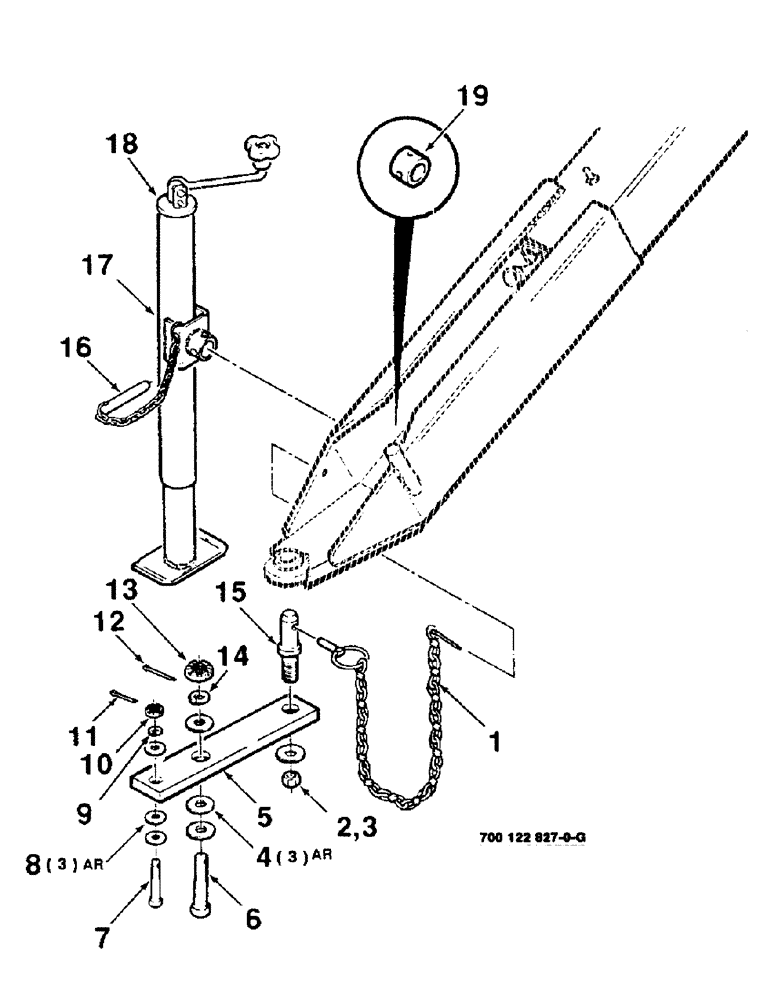

Запчасти Case IH 8360 (7-02) - HITCH AND JACK ASSEMBLY (09) - CHASSIS

1

63768

PIN

chain - linch

1шт.

2

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 HARDENED PLAIN WASHER

1шт.

3

425-1114

NUT,7/8"-14, G5

7/8-14 H

1шт.

4

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

3шт.

5

1662008

DRAWBAR

EXTENSION - drawbar

1шт.

6

700116537

SCREW

1-8 X 4-1/2 C - special

1шт.

7

700116536

SCREW

5/8-11 X 4 C - special

1шт.

8

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

1шт.

11

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

12

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

13

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

14

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

15

7751886

HITCH PIN

PIN - hitch

1шт.

16

700706640

PIN

AND CHAIN

1шт.

17

700706826

JACK

(Includes pin and chain)

1шт.

18

700711826

JACK

SERVICE KIT

1шт.

19

6227391

TUBE,2" OD, 1.88" Length

- mounting, weldment

1шт.
