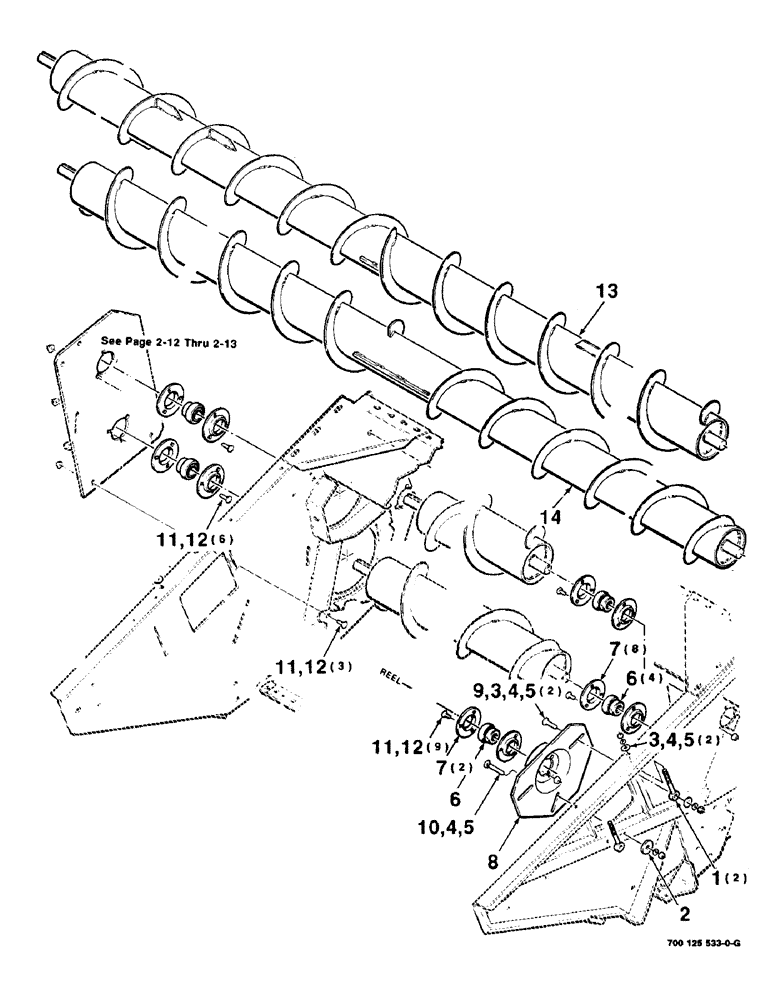

Запчасти Case IH 8360 (6-02) - AUGER ASSEMBLY, 12 FOOT (09) - CHASSIS

1

700110578

ROD

- eyebolt

2шт.

2

6581052

WASHER

- special

1шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

4

492-11038

LOCK WASHER,3/8"

5шт.

5

425-106

NUT,3/8"-16, Cl 5

5шт.

6

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- spherical

5шт.

7

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

10шт.

8

700110586

LARGE PLATE

PLATE - ring, left

1шт.

9

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

2шт.

10

433-644

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 RHSNB

1шт.

11

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

18шт.

12

231-5146

FLANGE NUT,3/8"-16

18шт.

13

700110637

AUGER

- upper

1шт.

700124892

AUGER

- upper (Heavy duty flighting)

1шт.

14

700110639

AUGER

- lower

1шт.

700124893

AUGER

- lower (Heavy duty flighting)

1шт.
